Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200SXG390MEFCSN25X25CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
157LMX250M2BCCAP ALUM 150UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LMX | Bulk | Active | 150 µF | ±20% | 250 V | 1.6279Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.014 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL224660182E3CAP ALUM 1800UF 20% 35V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 100 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL224668561E3CAP ALUM 560UF 20% 63V RADIAL TH |
0 |
|
- |
246 RTI-V | Box | Active | 560 µF | ±20% | 63 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 900 mA @ 100 Hz | 1.8 A @ 100 kHz | 48 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL224691106E3CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.05 A @ 100 Hz | 2.1 A @ 100 kHz | 31 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL224696276E3CAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.75 A @ 100 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL224665392E3CAP ALUM 3900UF 20% 16V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.75 A @ 100 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

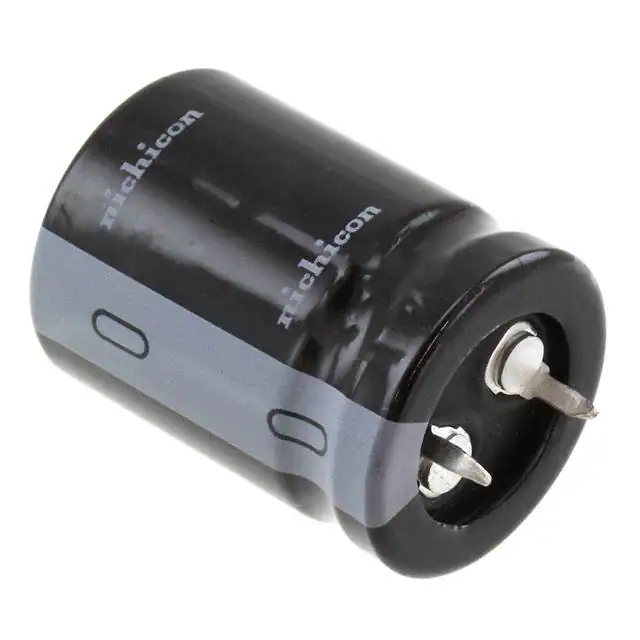

LQS2V151MELZ30CAP ALUM 150UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 150 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.1726 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL226066471E3CAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
- |
260 RLA-V | Box | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 560 mA @ 100 Hz | 800 mA @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL226061681E3CAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
260 RLA-V | Box | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 350 mA @ 100 Hz | 700 mA @ 100 kHz | 69 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL226065102E3CAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 560 mA @ 100 Hz | 800 mA @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXM421VSN820MP30SCAP ALUM 82UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 82 µF | ±20% | 420 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 900.9 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
160MXC820MEFC30X30CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
100USC1200MEFC25X25CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 1200 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.438 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
220VXH680MEFC25X35CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 680 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250USC270MEFC22X25CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 270 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
25MXC10000MEFC25X30CAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 10000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.0475 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
35USC6800MEFC25X30CAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 6800 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.3235 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400USG150MEFC25X25CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.694 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420HXG100MEFC25X25CAP ALUM 100UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole |
