Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKG1C103MESYAKCAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1C103MESZAKCAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1C822MESYBKCAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 8200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKG1C822MESZBKCAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 8200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E472MESABKCAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.25 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1E562MESYBKCAP ALUM 5600UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LKG1E562MESZBKCAP ALUM 5600UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKG1E682MESYAKCAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LKG1E682MESZAKCAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1H272MESAAKCAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LKG1H272MESYBKCAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1H272MESZBKCAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1J182MESYAKCAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LKG1J182MESZAKCAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LKG1K102MESYAKCAP ALUM 1000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1000 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1K102MESZAKCAP ALUM 1000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1000 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

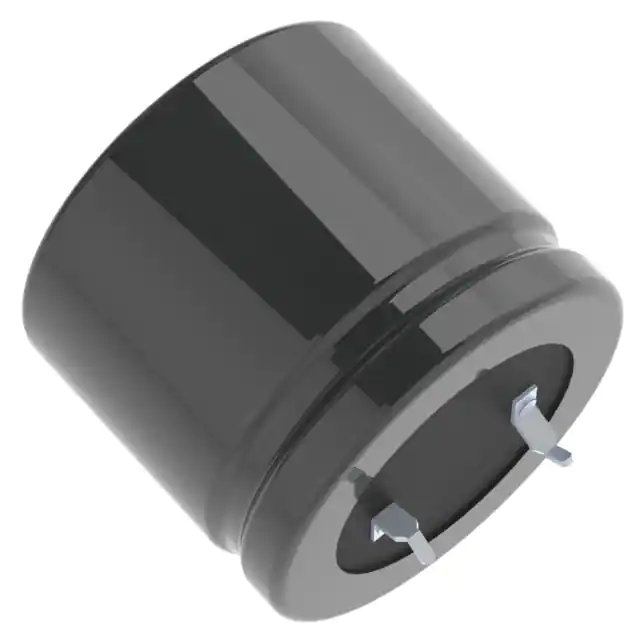

LKG1K821MESAAKCAP ALUM 820UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.65 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LKG1K821MESYBKCAP ALUM 820UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LKG1K821MESZBKCAP ALUM 820UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LKG1V332MESABKCAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
