Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXM3B1VSN221MP40SCAP ALUM 220UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 220 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.5587 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLS1C273MELBCAP ALUM 27000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 27000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.95 A @ 120 Hz | 5.6925 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXM161VSN681MR25SCAP ALUM 680UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 680 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.61 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXM221VSN391MQ30SCAP ALUM 390UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 390 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.935 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LSK101M2H---2240SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 100 µF | ±20% | 500 V | 1.99Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 756 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
LSM681M2E---2550SCAP ALUM 250V POLAR |
0 |
|
- |
LSM | Active | 680 µF | ±20% | 250 V | 195mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.856 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
B43508B2397M002CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 390 µF | ±20% | 200 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | - | 400 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EMVA100GDA472MLN0SCAP ALUM 4700UF 20% 10V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.674 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EGVD630ELL132MM30HCAP ALUM 1300UF 20% 63V RADIAL |
0 |
|
Datasheet |
GVD | Bulk | Active | 1300 µF | ±20% | 63 V | 29mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.358 A @ 120 Hz | 3.93 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
LAR2D681MELA30CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.625 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LSR271M2G---2540SCAP ALUM 400V POLAR |
0 |
|
- |
LSR | Active | 270 µF | ±20% | 400 V | 442mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 120 Hz | 2.562 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
PEG124RD2220QT1CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 22 µF | -10%, +30% | 200 V | 4.6Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 100 Hz | 310 mA @ 5 kHz | - | - | 0.512" Dia x 1.142" L (13.00mm x 29.00mm) | - | - | Through Hole | |
|
LKX2D391MESA25CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.31 A @ 120 Hz | 1.965 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKX2E271MESZ30CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.1 A @ 120 Hz | 1.65 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LKX2E271MESZ35CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
LKX2E271MESY30CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

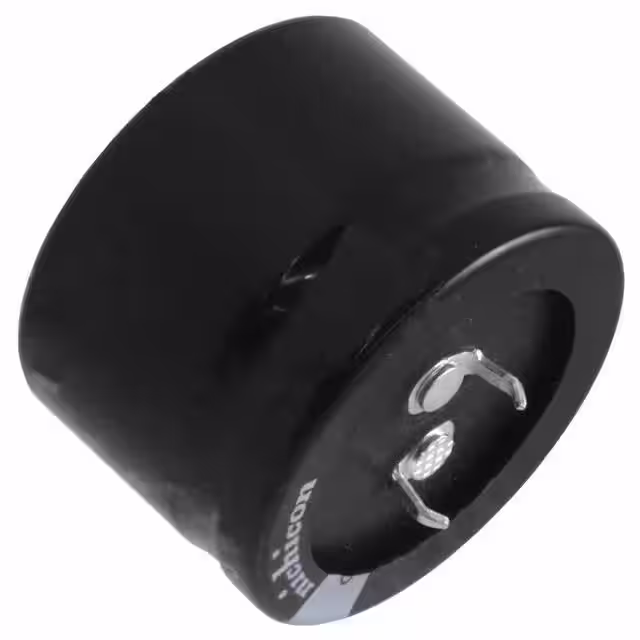

LLS2C122MELCCAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 5.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LLS1C333MELACAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 33000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.49 A @ 120 Hz | 6.3135 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAR2E471MELB25CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
380LX122M100H032CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 1200 µF | ±20% | 100 V | 195mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
