Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP151M420A7P3CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 150 µF | ±20% | 420 V | 2.212Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.29 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LR121M420H022CAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 120 µF | ±20% | 420 V | 1.66Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
381LX121M420H022CAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 120 µF | ±20% | 420 V | 1.66Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UVZ1A223MRDCAP ALUM 22000UF 20% 10V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 22000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.0475 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL209452331E3CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 330 µF | ±20% | 200 V | 320mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | - | 210 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225912391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 200 V | 290mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | 2.67 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225952391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 200 V | 290mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | 2.67 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM3B1VSN271MQ35SCAP ALUM 270UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 270 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL224668821E3CAP ALUM 820UF 20% 63V RADIAL TH |
0 |
|
- |
246 RTI-V | Box | Active | 820 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.25 A @ 100 Hz | 2.5 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
MAL224661152E3CAP ALUM 1500UF 20% 50V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1500 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 2.8 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224660272E3CAP ALUM 2700UF 20% 35V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 2700 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.08 A @ 100 Hz | 3.2 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224666472E3CAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 4700 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.24 A @ 100 Hz | 3.2 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224665562E3CAP ALUM 5600UF 20% 16V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 5600 µF | ±20% | 16 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.24 A @ 100 Hz | 3.2 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EKMS161VSN821MQ30SCAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 3.12 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.280" (32.50mm) | - | Through Hole | |
|
LLS2C152MELBCAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1500 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.96 A @ 120 Hz | 5.94 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

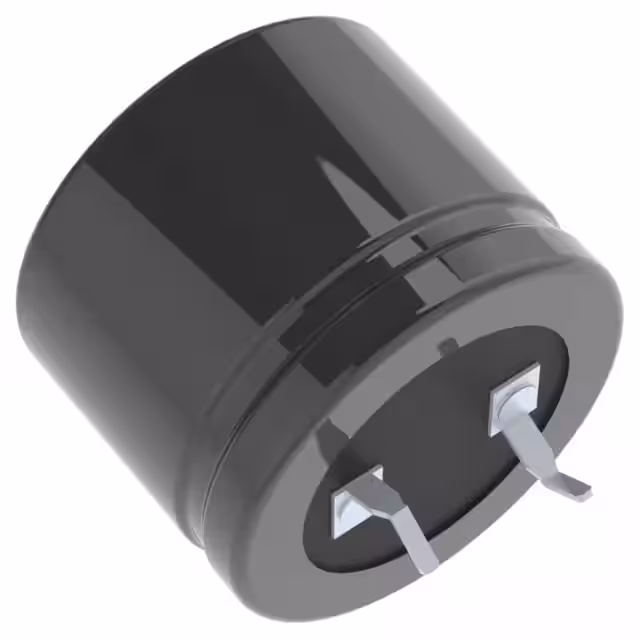

LKS1K152MESBCAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1500 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
LKSA2332MESBCAP ALUM 3300UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LKSH2182MESBCAP ALUM 1800UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1800 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
B41231C6828M000CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
B41231 | Bulk | Active | 8200 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.26 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
630D256M025BB3ACAP ALUM 25UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 25 µF | ±20% | 25 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole |
