Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

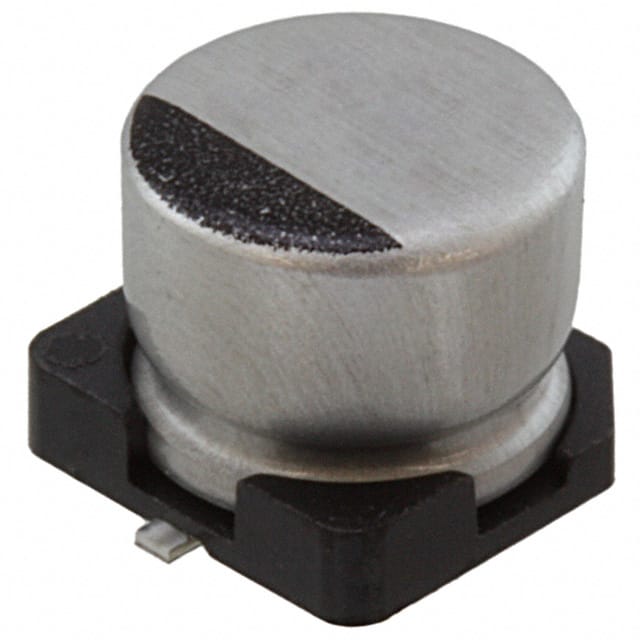

25SEV3300M18X21.5CAP ALUM 3300UF 20% 25V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 120 Hz | 1.955 A @ 10 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
LSK152M2C---3050SCAP ALUM 160V POLAR |
0 |
|
- |
LSK | Active | 1.5 mF | ±20% | 160 V | 133mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 4.032 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
315USC390MEFCSN30X30CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.01 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

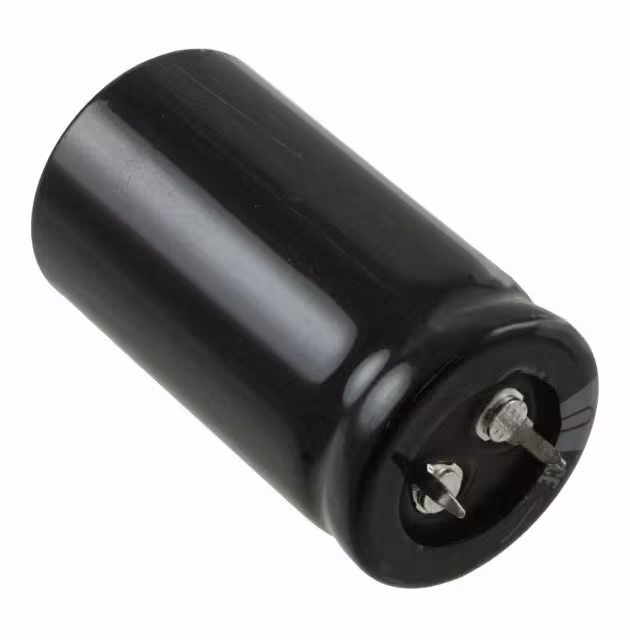

LGG2C152MELA45CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
250VXG560MEFCSN25X40CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.165 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLS2Z152MELCCAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1500 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.02 A @ 120 Hz | 6.03 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLP221M400E5P3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 220 µF | ±20% | 400 V | 1.508Ohm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLPX271M420C7P3CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.56 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
228TMA063MCAP ALUM 2200UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
TMA | Bulk | Active | 2200 µF | ±20% | 63 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.001 A @ 50 kHz | - | - | 0.866" Dia x 1.614" L (22.00mm x 41.00mm) | - | - | Through Hole | |
|
LKG1C392MESBCKCAP ALUM 3900UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400KXF180MEFC35X20CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400MXH270MEFC30X25CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.862 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420HXG180MEFC30X25CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.226 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450VXH180MEFC30X25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.638 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ESMQ500EMC222MLN3SCAP ALUM 2200UF 20% 50V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.1384 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
420NXG150MEFC20X45CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 150 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEG228HKP4300ME4CAP ALUM 3000UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 3000 µF | ±20% | 25 V | 41mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.555 A @ 100 Hz | 7.3 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|
|
475VXT150MEFCSN22X30CAP ALUM 150UF 20% 475V SNAP TH |
0 |
|
Datasheet |
VXT | Bulk | Active | 150 µF | ±20% | 475 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.428 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LHM391M2G---2550SCAP ALUM 400V POLAR |
0 |
|
- |
LHM | Active | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
EKMS3B1VSN391MP45SCAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.2308 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.870" (47.50mm) | - | Through Hole |
