Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
687LBB200M2ECCAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 680 µF | ±20% | 200 V | 365.71mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.92 A @ 120 Hz | 4.2924 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
100MXC3300MEFCSN30X50CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL213244152E3CAP ALUM 1500UF 10V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 1500 µF | -10%, +50% | 10 V | 230mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 800 mA @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ALC70D561BD200CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 560 µF | ±20% | 200 V | 396mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | 3.44 A @ 10 kHz | 248 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F561BD200CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 560 µF | ±20% | 200 V | 396mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | 3.44 A @ 10 kHz | 248 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
40D205F050BB5ACAP ALUM 2UF 50V AXIAL |
0 |
|
- |
40D | Bulk | Active | 2 µF | -10%, +50% | 50 V | 90Ohm | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | 49 mA @ 120 Hz | - | - | - | - | - | - | - | |
|

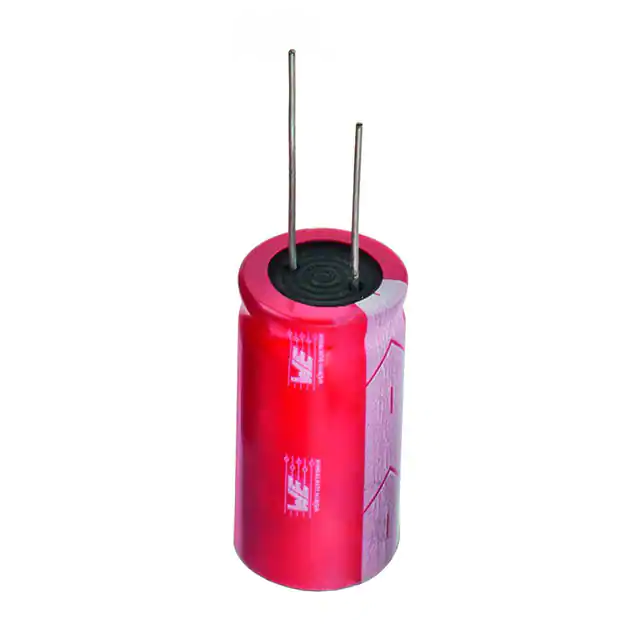

860010583027CAP ALUM 6800UF 20% 35V RADIAL |
0 |
|
Datasheet |
WCAP-ATG8 | Tray | Active | 6800 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.63 A @ 120 Hz | 4.6464 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.693" (43.00mm) | - | Through Hole | |
|
ERLA201LIN102KR40MCAP ALUM 1000UF 10% 200V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1000 µF | ±10% | 200 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.01 A @ 120 Hz | 7.515 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
PEH526MAB382AM3CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH526 | Box | Active | 820 µF | ±20% | 63 V | 150mOhm @ 100Hz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | 5.9 A @ 5 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL212016152E3CAP ALUM 1500UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 1500 µF | ±20% | 25 V | 49mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.89 A @ 10 kHz | 46 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
381LX123M016H022CAP ALUM 12000UF 20% 16V SNAP TH |
5 |
|
Datasheet |
381LX | Bulk | Active | 12000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX393M025H9P3CAP ALUM 39000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 39000 µF | ±20% | 25 V | 15mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.56 A @ 120 Hz | 9.45 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLP122M180H5P3CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1200 µF | ±20% | 180 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.75 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
30DT106M035BB5CAP ALUM 10UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
|
30DT335M050BB5CAP ALUM 3.3UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
|
LKG1C562MESACKCAP ALUM 5600UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
339LBA025M2EHCAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 33000 µF | ±20% | 25 V | 22.61mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 9 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450HXG390MEFC30X50CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.92 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
10MXC18000MEFC25X30CAP ALUM 18000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 18000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 120 Hz | 2.691 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
10MXC27000MEFC25X40CAP ALUM 27000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 27000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.07 A @ 120 Hz | 3.5305 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
