Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC40A101BB400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 100 µF | ±20% | 400 V | 1.193Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 100 Hz | 2.09 A @ 10 kHz | 788 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LQ182M160K452CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1800 µF | ±20% | 160 V | 111mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 5.88 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
381LQ182M160K452CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 1800 µF | ±20% | 160 V | 110mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL204316339E3CAP ALUM 33UF 400V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 33 µF | -10%, +50% | 400 V | 2.3Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 100 Hz | - | 1.4 Ohms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
EKMQ251VSN182MA50SCAP ALUM 1800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMQ | Bulk | Active | 1800 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKX2E561MESA40CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A221BB250CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 220 µF | ±20% | 250 V | 796.3mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.7 A @ 10 kHz | 469 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM391M2P---3050SCAP ALUM 420V POLAR |
0 |
|
- |
LSM | Active | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
10USC18000MEFC20X40CAP ALUM 18000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 18000 µF | ±20% | 10 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.31 A @ 120 Hz | 3.807 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
400MXK270MEFC22X40CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
380LX152M160K452CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 5.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
10VXG22000MEFC30X30CAP ALUM 22000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 22000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 3.14 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
50USC10000MEFC35X30CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 10000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.02 A @ 120 Hz | 5.773 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
80MXC3900MEFC35X30CAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 3.4155 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
GS2G471MND3040CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
GS | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
420MXK220MEFCSN25X30CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Tray | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEG228MML3990QE4CAP ALUM 990UF 63V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 990 µF | -10%, +30% | 63 V | 74mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.135 A @ 100 Hz | 6.1 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole | |
|
|
ESMM351VSN102MA50SCAP ALUM 1000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SMM | Bulk | Active | 1000 µF | ±20% | 350 V | 249mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 5.148 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

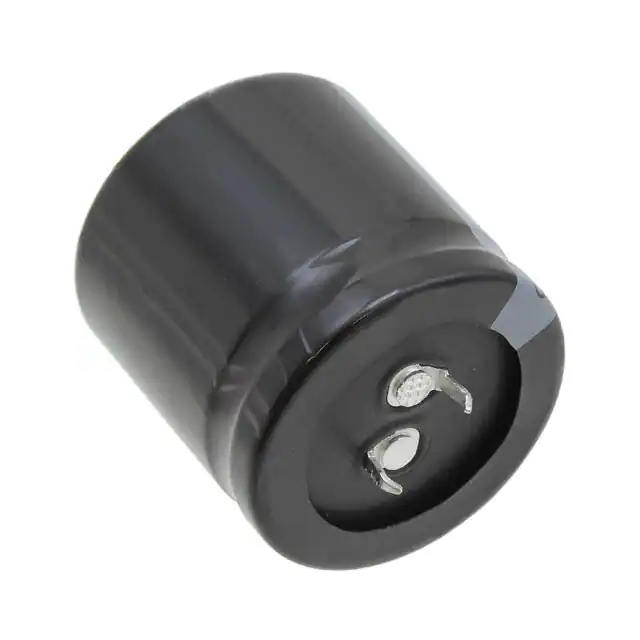

LGU2P102MELCCAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LAR2D122MELB35CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole |
