Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKG1E183MESCAKCAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 18000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1E223MESBAKCAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 22000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1J272MESBCKCAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKG1K122MESCCKCAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1200 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1K272MESBAKCAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1V123MESBAKCAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 12000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKG2A821MESCCKCAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

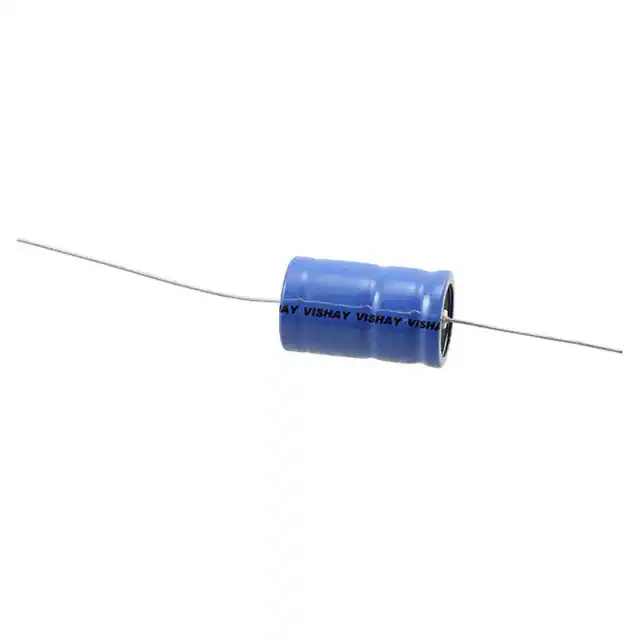

MAL213219331E3CAP ALUM 330UF 100V AXIAL TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 330 µF | -10%, +50% | 100 V | 290mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 100 Hz | - | - | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
108TMA100MCAP ALUM 1000UF 20% 100V AXIAL |
0 |
|
Datasheet |
TMA | Bulk | Active | 1000 µF | ±20% | 100 V | 149mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Bypass, Decoupling | 1.21 A @ 120 Hz | 1.392 A @ 50 kHz | - | - | 0.866" Dia x 1.614" L (22.00mm x 41.00mm) | - | - | Through Hole | |
|

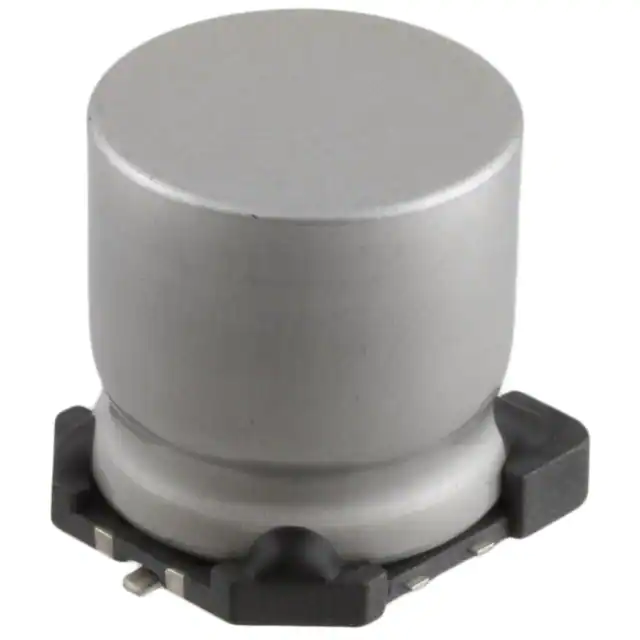

MAL214699007E3CAP ALUM 680UF 20% 35V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 910 mA @ 100 Hz | 1.4 A @ 100 kHz | 50 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|

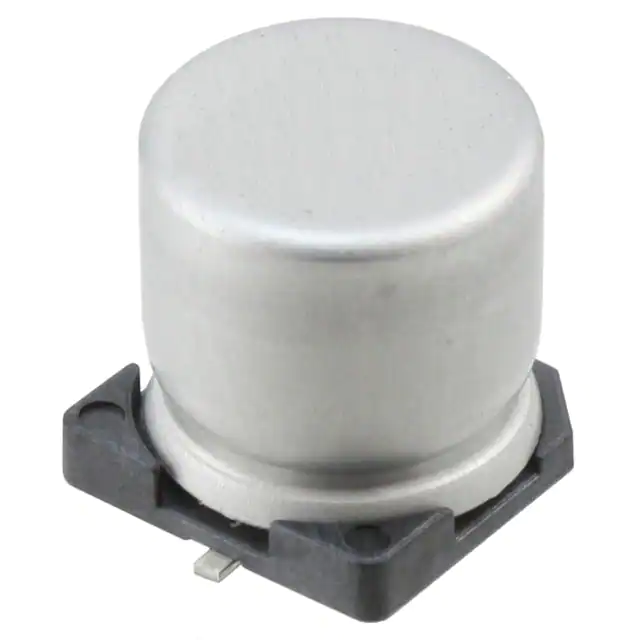

MAL214699907E3CAP ALUM 150UF 20% 100V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 150 µF | ±20% | 100 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 390 mA @ 100 Hz | 650 mA @ 100 kHz | 300 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
B43640C2108M067CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 1000 µF | ±20% | 200 V | 110mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 100 Hz | - | 160 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
200MXC1000MEFCSN35X30CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
30D107M100EF2TCAP ALUM 100UF 20% 100V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
500D337M050EF2TCAP ALUM 330UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
|
500D337M050EF5ACAP ALUM 330UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
|
500D687M025EF2TCAP ALUM 680UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 680 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
|
TVA1209TCAP ALUM 500UF 25V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 500 µF | - | 25 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
630D227H016DF5ACAP ALUM 220UF 16V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 220 µF | - | 16 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
630D227M016DF5ACAP ALUM 220UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 220 µF | ±20% | 16 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole |
