Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL209436181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 180 µF | ±20% | 400 V | 810mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | - | 620 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAQ2P561MELA45CAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 560 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LLG2D152MELC30CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.29 A @ 120 Hz | 4.935 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC40A121BC400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 120 µF | ±20% | 400 V | 991mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | 2.45 A @ 10 kHz | 653 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
100MXC4700MEFCSN35X50CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EKMS551VSN820MQ30SCAP ALUM 82UF 20% 550V SNAP TH |
0 |
|
- |
KMS | Bulk | Active | 82 µF | ±20% | 550 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.0582 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
PEH534SCE3560M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 560 µF | ±20% | 250 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 11.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EEV-EB2D470SMCAP ALUM 47UF 20% 200V SMD |
0 |
|
Datasheet |
EB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EMVA250GDA222MMH0SCAP ALUM 2200UF 20% 25V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.512 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UCX1E272MNS1MSCAP ALUM 2700UF 20% 25V SMD |
0 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 2700 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 950 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
180MXG1000MEFCSN25X40CAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
220MXC820MEFCSN25X45CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

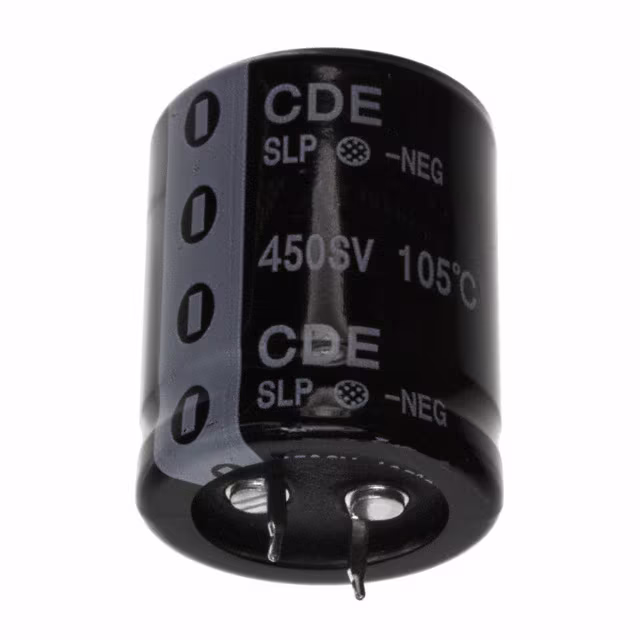

SLP102M180E5P3CAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1000 µF | ±20% | 180 V | 199mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
420NXG330MEFC35X35CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 330 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
350USC150MEFC25X25CAP ALUM 150UF 20% 350V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 150 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
350VXH220MEFC25X30CAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 220 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205753151E3CAP ALUM 150UF 20% 250V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 250 V | 960mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 830 mA @ 100 Hz | - | 520 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205773151E3CAP ALUM 150UF 20% 250V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 250 V | 960mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 830 mA @ 100 Hz | - | 520 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LASW6181MELC25CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 180 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B41605E0338M008CAP ALUM 55V POLAR |
0 |
|
- |
B41605 | Bulk | Active | 3.3 mF | ±20% | 55 V | 24mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 7.1 A @ 10 kHz | - | 0.331" (8.40mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
