Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL224699712E3CAP ALUM 470UF 20% 80V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 470 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 660 mA @ 100 Hz | 1.1 A @ 100 kHz | 110 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699911E3CAP ALUM 330UF 20% 100V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 330 µF | ±20% | 100 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 486 mA @ 100 Hz | 810 mA @ 100 kHz | 230 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699012E3CAP ALUM 1800UF 20% 35V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 1800 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.225 A @ 100 Hz | 1.75 A @ 100 kHz | 35 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699113E3CAP ALUM 1200UF 20% 50V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 1200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 960 mA @ 100 Hz | 1.6 A @ 100 kHz | 49 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
E82D250VNN273MA50UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

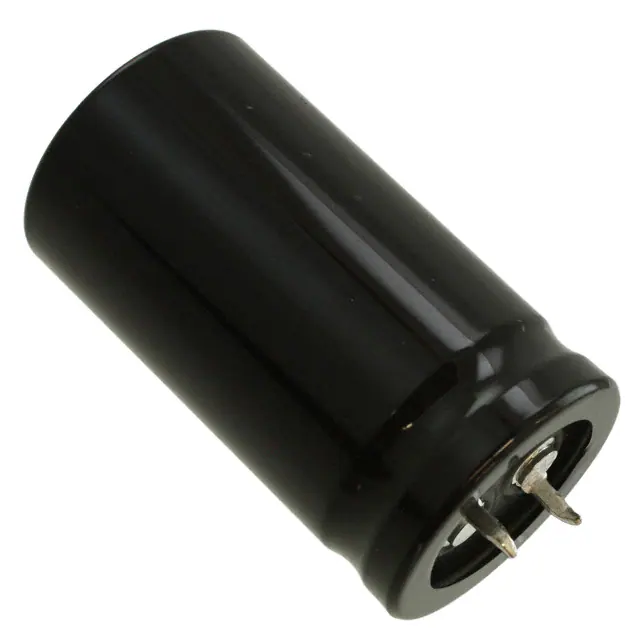

LKX2D821MESA45CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMH401VNN681MA50WCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 680 µF | ±20% | 400 V | 366mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.04 A @ 120 Hz | 4.3472 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX102M200K042CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400SXC220MEFCSN30X35CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.426 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALO8AD331CB400CAP ALUM 105C 330UF 400VDC |
0 |
|
Datasheet |
ALO8A | Tray | Active | 330 µF | ±20% | 400 V | 467.6mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.61 A @ 100 Hz | 233.8 A @ 10 kHz | 233.8 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole, Press-Fit | |
|
|
ELH687M400AT6AVCAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.205 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LSR331M2W---3535SCAP ALUM 450V POLAR |
0 |
|
- |
LSR | Active | 330 µF | ±20% | 450 V | 362mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
100VXG2200MEFC35X35CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2200 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.48 A @ 120 Hz | 2.852 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250VXH820MEFC30X35CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 820 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.19 A @ 120 Hz | 3.285 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
25VXG4700MEFC22X30CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 4700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.7825 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
200USG1000MEFCSN30X30CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
688LBA080M2EGCAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 6800 µF | ±20% | 80 V | 60.9509mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 6 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
511D157M063CG4DCAP ALUM 150UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 150 µF | ±20% | 63 V | 1.01Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 671 mA @ 40 kHz | 341 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
MAL202144153E3CAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 15000 µF | ±20% | 10 V | 54mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | - | 35 mOhms | 0.886" (22.50mm) | 0.827" Dia (21.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
MAL209442681E3CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 680 µF | ±20% | 200 V | 170mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | - | 110 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
