Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKX2W181MESC25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43644B5227M067CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 220 µF | ±20% | 450 V | 460mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | - | 700 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43644B5277M067CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 450 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 570 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450USH330MEFCSN30X30CAP ALUM 330UF 20% 450V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 2.996 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
80MXC5600MEFC30X45CAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
350VXS180MEFC22X35CAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 180 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX182M200H4P3CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1800 µF | ±20% | 200 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.59 A @ 120 Hz | 6.75 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
109TMA025MCAP ALUM 10000UF 20% 25V AXIAL |
0 |
|
Datasheet |
TMA | Bulk | Active | 10000 µF | ±20% | 25 V | 72.9mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Bypass, Decoupling | 1.98 A @ 120 Hz | 2.277 A @ 50 kHz | - | - | 0.866" Dia x 2.010" L (22.00mm x 51.00mm) | - | - | Through Hole | |
|
ALC70C331DC450CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 330 µF | ±20% | 450 V | 427mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC70E331DC450CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 330 µF | ±20% | 450 V | 427mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70F331DC450CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 330 µF | ±20% | 450 V | 427mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ681M315K042CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 680 µF | ±20% | 315 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.87 A @ 120 Hz | 4.02 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
510D106M035AA5DCAP ALUM 10UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
B43640C5277M002CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 270 µF | ±20% | 450 V | 390mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 100 Hz | - | 590 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

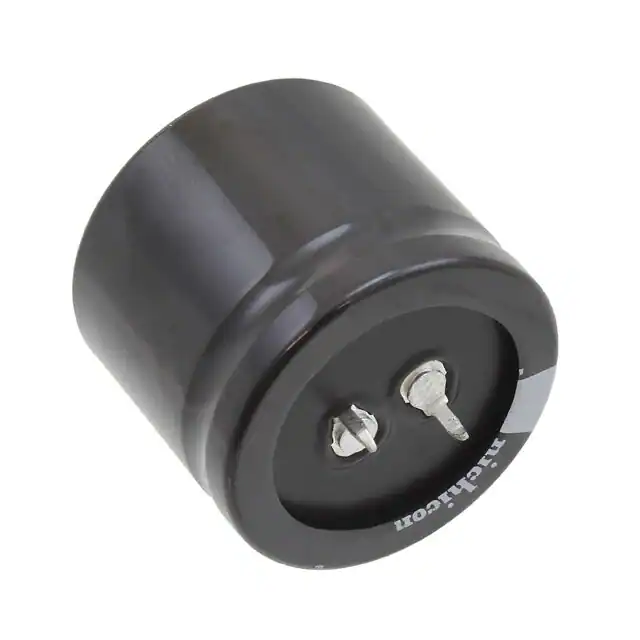

LGUW6271MELCCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ALA7DF301CC450CAP ALUM 300UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 300 µF | ±20% | 450 V | 504.2mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.26 A @ 100 Hz | 6.01 A @ 10 kHz | 207.2 mOhms | - | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALF40C223DC025CAP ALUM 22000UF 20% 25V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 22000 µF | ±20% | 25 V | 116mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 3.1 A @ 10 kHz | 104 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
LSM182M2D---3060SCAP ALUM 200V POLAR |
0 |
|
- |
LSM | Active | 1.8 mF | ±20% | 200 V | 74mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.64 A @ 120 Hz | 5.096 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | - | Through Hole | ||
|
|
TVAN1309.2CAP ALUM 60UF 50V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 60 µF | - | 50 V | - | - | - | Bi-Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|

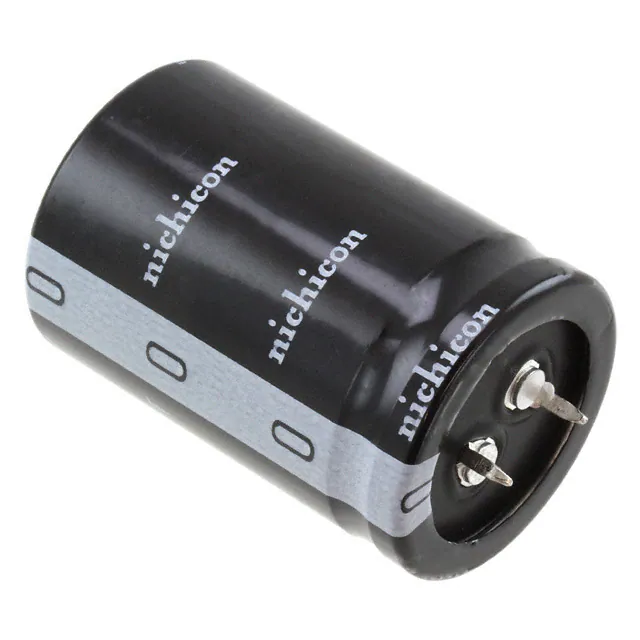

LLS2E122MELBCAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.99 A @ 120 Hz | 5.985 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole |
