Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

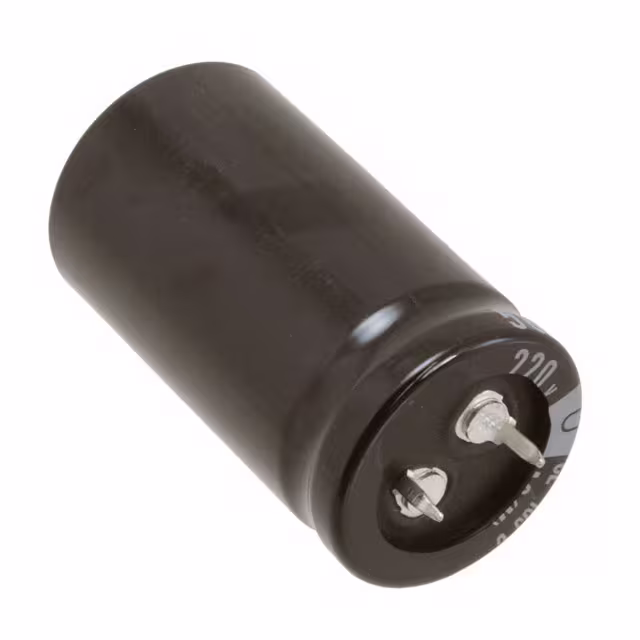

LAQ2G221MELA45CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.426 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ102M250K032CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1000 µF | ±20% | 250 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 120 Hz | 4.65 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX391M350A022CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 390 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELH108M250AT4AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 1 mF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
|
ALA8AD391CE450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 390 µF | ±20% | 450 V | 354mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 6.1 A @ 10 kHz | 206 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH536YCE3180M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 180 µF | ±20% | 450 V | 400mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 8.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA8AD331DC450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALA8A | Box | Active | 330 µF | ±20% | 450 V | 424mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 5.4 A @ 10 kHz | 246 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AF331DC450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 330 µF | ±20% | 450 V | 424mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 5.4 A @ 10 kHz | 246 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70C471EB350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 312mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5 A @ 10 kHz | 166 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70D471EB350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 312mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5 A @ 10 kHz | 166 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70E471EB350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 312mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5 A @ 10 kHz | 166 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F471EB350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 312mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5 A @ 10 kHz | 166 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH532PDD4270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 2.7 mF | ±20% | 100 V | 81mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 7.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
672D686F060DM4DCAP ALUM 68UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 68 µF | -10%, +50% | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
ALH82A161DD600CAP ALUM 160UF 20% 600V SNAP TH |
0 |
|
Datasheet |
ALH82 | Tray | Active | 160 µF | ±20% | 600 V | 877mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 100 Hz | 4.51 A @ 10 kHz | 593 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELXQ401VSN681MA50WCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
- |
LXQ | Bulk | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.4177 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
220MXC1000MEFCSN35X35CAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43630C5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 450 V | 550mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.46 A @ 100 Hz | - | 850 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
511D477M035DK4DCAP ALUM 470UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 470 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
511D477M063EK4DCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 470 µF | ±20% | 63 V | 307mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 1.56 A @ 40 kHz | 125 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole |
