Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL212325101E3CAP ALUM 100UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 16 V | 2.8Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 260 mA @ 100 Hz | - | 800 mOhms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole | |
|
ALC80A241DD500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 240 µF | ±20% | 500 V | 709mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | 4.97 A @ 10 kHz | 491 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80E241DD500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 240 µF | ±20% | 500 V | 709.4mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | 4.97 A @ 10 kHz | 491 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F241DD500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 240 µF | ±20% | 500 V | 709mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | 4.97 A @ 10 kHz | 491 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
16MXG68000MEFCSN35X50CAP ALUM 68000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 68000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 7.36 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALV70E111DD700CAP ALUM 85C 110UF 700VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 110 µF | ±20% | 700 V | 5.181Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 100 Hz | 1.12 A @ 10 kHz | 4.827 Ohms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF70G151EB630CAP ALUM 150UF 20% 630V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 150 µF | ±20% | 630 V | 889mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.63 A @ 100 Hz | 3.44 A @ 10 kHz | 612 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole, Press-Fit | |
|
|
EKHS501VSN221MP60SCAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 220 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.8733 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
160MXC1800KEFC30X50CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ821M350K052CAP ALUM 820UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 820 µF | ±20% | 350 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LQ821M315A042CAP ALUM 820UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 820 µF | ±20% | 315 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM351VSN331MQ45SCAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 330 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|

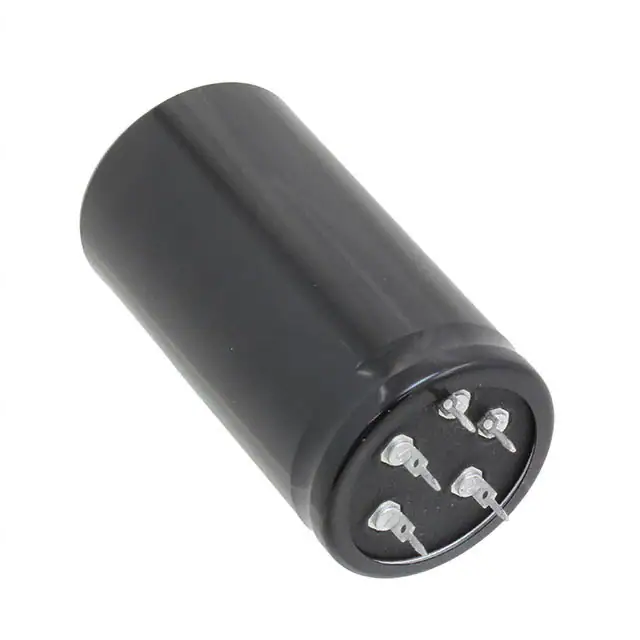

ALP20A102DE250CAP ALUM 1000UF 250V SOLDER LUG |
0 |
|
Datasheet |
ALP20 | Box | Active | 1000 µF | -10%, +30% | 250 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 3.031" (77.00mm) | - | Through Hole | |
|
B43541A6277M000CAP ALUM 270UF 20% 500V SNAP TH |
0 |
|
- |
B43541 | Bulk | Active | 270 µF | ±20% | 500 V | 340mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 100 Hz | - | 510 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43541A9687M060CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43541 | Bulk | Active | 680 µF | ±20% | 400 V | 120mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.15 A @ 100 Hz | - | 170 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
B43644B5397M062CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 390 µF | ±20% | 450 V | 270mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 420 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL212316229E3CAP ALUM 22UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
SAL-A 123 | Tape & Box (TB) | Obsolete | 22 µF | ±20% | 25 V | 7Ohm | 20000 Hrs @ 125°C | -55°C ~ 125°C | - | - | General Purpose | - | - | 2.5 Ohms | - | 0.299" Dia x 0.803" L (7.60mm x 20.40mm) | - | - | Through Hole | |
|
MAL215956181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 180 µF | ±20% | 400 V | 1.17Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 960 mA @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215976181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 180 µF | ±20% | 400 V | 1.17Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 960 mA @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL211845682E3CAP ALUM 6800UF 20% 16V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 6800 µF | ±20% | 16 V | 88mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.79 A @ 100 Hz | - | 100 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole |
