Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30D568M010GH2AE3CAP ALUM 5600UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 5600 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.630" Dia x 1.496" L (16.00mm x 38.00mm) | - | - | Through Hole | |
|

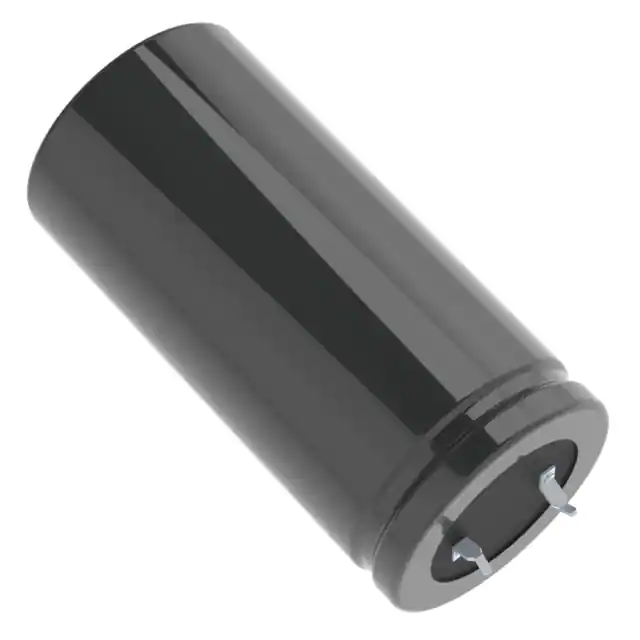

LKG1J472MESAAKCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LR471M420A452CAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 470 µF | ±20% | 420 V | 282mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 3.18 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF40C391EH450CAP ALUM 390UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 390 µF | ±20% | 450 V | 249mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 100 Hz | 8.04 A @ 10 kHz | 174 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|
GM2W681MND3055CAP ALUM 680UF 20% 450V SNAP TH |
0 |
|
Datasheet |
GM | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | ||
|
380LQ102M350A052CAP ALUM 1000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1000 µF | ±20% | 350 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.54 A @ 120 Hz | 4.96 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
200VXG1500MEFC30X45CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1500 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 4.23 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
400NXG220MEFC25X40CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 220 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
475MXH390MEFCSN30X55CAP ALUM 390UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 390 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.772 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
EKHE451VSN431MQ45SCAP ALUM 430UF 20% 450V SNAP TH |
0 |
|
Datasheet |
KHE | Bulk | Active | 430 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.3275 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ELXS501VSN331MA45SCAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 330 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.288 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
MAL205258151E3CAP ALUM 150UF 385V RADIAL TH |
0 |
|
Datasheet |
052 PED-PW | Tape & Box (TB) | Active | 150 µF | -10%, +30% | 385 V | 850mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | - | 635 mOhms | 0.689" (17.50mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
ESMH451VND561MB45SCAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
510DX567M063EN5DCAP ALUM 560UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 560 µF | ±20% | 63 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
757D278M025EN3DCAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 2700 µF | ±20% | 25 V | 57mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 3.35 A @ 40 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|

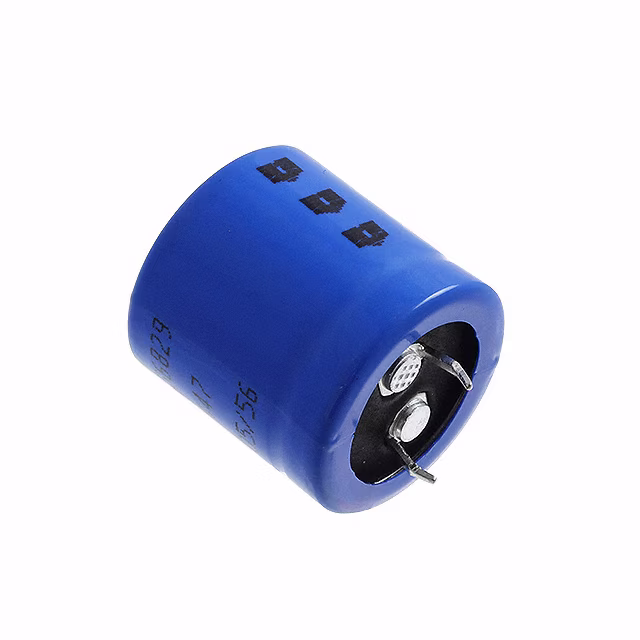

MAL215759181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 180 µF | ±20% | 500 V | 940mOhm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | 780 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215749181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 180 µF | ±20% | 500 V | 960mOhm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | 800 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215729181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 180 µF | ±20% | 500 V | 960mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | - | 800 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL215779181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 180 µF | ±20% | 500 V | 940mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | - | 780 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215828332E3CAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 3300 µF | ±20% | 63 V | 59mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.76 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
