Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43640A9687M007CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 680 µF | ±20% | 400 V | 160mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.36 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH169HA468VMB2CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 6.8 mF | ±20% | 25 V | 30mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | 18.3 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.067" (52.50mm) | - | Chassis Mount | |
|
MAL225727391E3CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 390 µF | ±20% | 450 V | 500mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | 2.982 A @ 10 kHz | 420 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PG2W331MND3040CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
PG | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.668 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
381LQ102M315A452CAP ALUM 1000UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 1000 µF | ±20% | 315 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
381LQ821M350A452CAP ALUM 820UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 820 µF | ±20% | 350 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALS70H822DA063CAP ALUM 8200UF 20% 63V SCREW CH |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 8200 µF | ±20% | 63 V | 56mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 100 Hz | 11.1 A @ 10 kHz | 44 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|

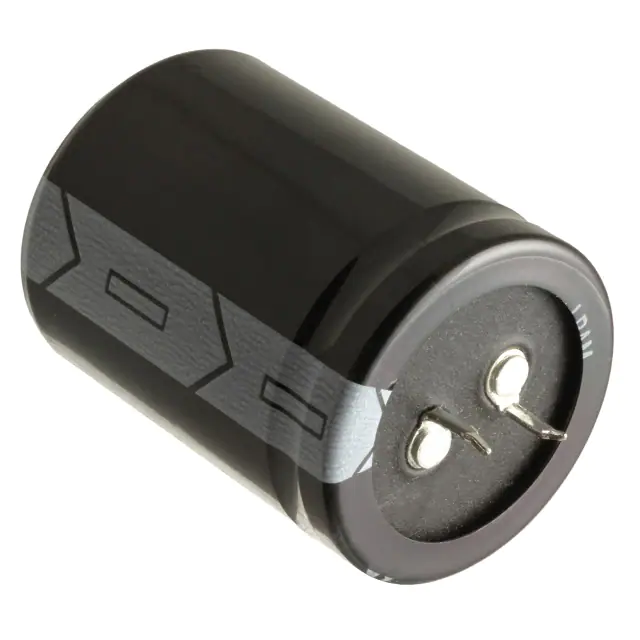

827LBA400M2EHCAP ALUM 820UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 820 µF | ±20% | 400 V | 303.27mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 5.88 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212326101CAP ALUM 100UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | 3.2Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 100 Hz | - | 1 Ohms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole | |
|
|
MAL212326101E3CAP ALUM 100UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | 3.2Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 100 Hz | - | 1 Ohms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole | |
|

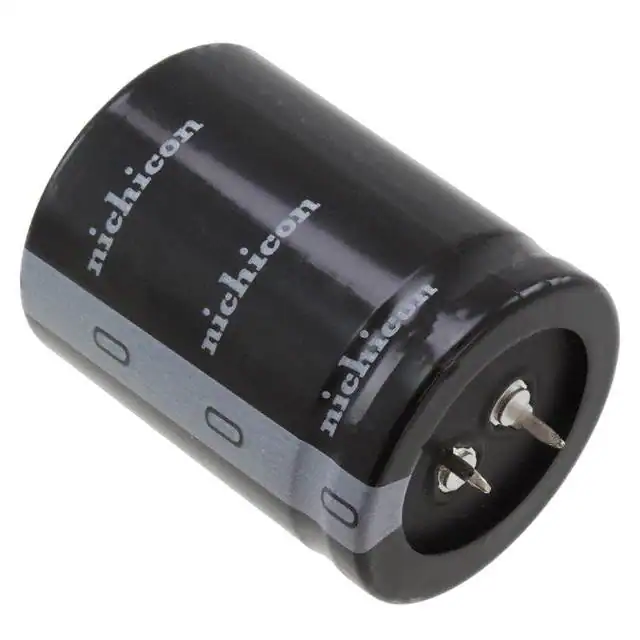

LKX2G561MESC45CAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALS81H361DA450CAP ALUM 360UF 20% 450V SCREW CH |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 360 µF | ±20% | 450 V | 427mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 6.1 A @ 10 kHz | 262 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
|
ALS80A621DB350CAP ALUM 620UF 20% 350V SCREW CH |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 620 µF | ±20% | 350 V | 240mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 7.3 A @ 10 kHz | 139 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS80H621DB350CAP ALUM 620UF 20% 350V SCREW CH |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 620 µF | ±20% | 350 V | 240mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 7.3 A @ 10 kHz | 139 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS81A621DB350CAP ALUM 620UF 20% 350V SCREW CH |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 620 µF | ±20% | 350 V | 240mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 7.3 A @ 10 kHz | 139 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS81H621DB350CAP ALUM 620UF 20% 350V SCREW CH |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 620 µF | ±20% | 350 V | 240mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 7.3 A @ 10 kHz | 139 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
ALF20C821EH350CAP ALUM 820UF 20% 350V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 820 µF | ±20% | 350 V | 172mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.99 A @ 100 Hz | 7.67 A @ 10 kHz | 112 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|

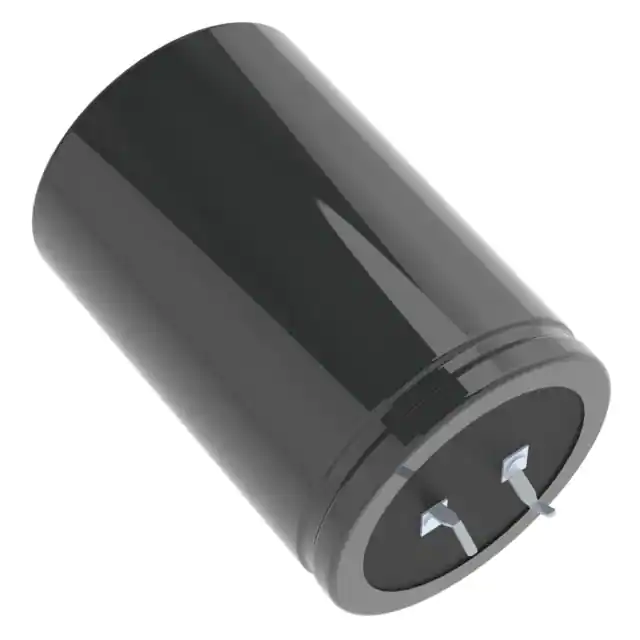

LKS2A562MESCCAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
MAL212314221E3CAP ALUM 220UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
SAL-A 123 | Tape & Box (TB) | Obsolete | 220 µF | ±20% | 10 V | 600mOhm | 20000 Hrs @ 125°C | -55°C ~ 125°C | - | - | General Purpose | - | - | 400 mOhms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole | |
|
MAL205155153E3CAP ALUM 15000UF 20% 16V RADIAL |
0 |
|
Datasheet |
051 PEC-PW | Tape & Box (TB) | Active | 15000 µF | ±20% | 16 V | 31mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 100 Hz | - | 27 mOhms | 0.787" (20.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole |
