Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80D272EH200CAP ALUM 2700UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 2700 µF | ±20% | 200 V | 86mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.53 A @ 100 Hz | 9.82 A @ 10 kHz | 54 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALC80E272EH200CAP ALUM 2700UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 2700 µF | ±20% | 200 V | 86mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.53 A @ 100 Hz | 9.82 A @ 10 kHz | 54 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALC80F272EH200CAP ALUM 2700UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 2700 µF | ±20% | 200 V | 86mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.53 A @ 100 Hz | 9.82 A @ 10 kHz | 54 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALS80A561DB400CAP ALUM 560UF 20% 400V SCREW CH |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 560 µF | ±20% | 400 V | 237mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | 7.4 A @ 10 kHz | 133 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS80H561DB400CAP ALUM 560UF 20% 400V SCREW CH |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 560 µF | ±20% | 400 V | 237mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | 7.4 A @ 10 kHz | 133 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS81A561DB400CAP ALUM 560UF 20% 400V SCREW CH |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 560 µF | ±20% | 400 V | 237mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | 7.4 A @ 10 kHz | 133 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS81H561DB400CAP ALUM 560UF 20% 400V SCREW CH |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 560 µF | ±20% | 400 V | 237mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | 7.4 A @ 10 kHz | 133 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|

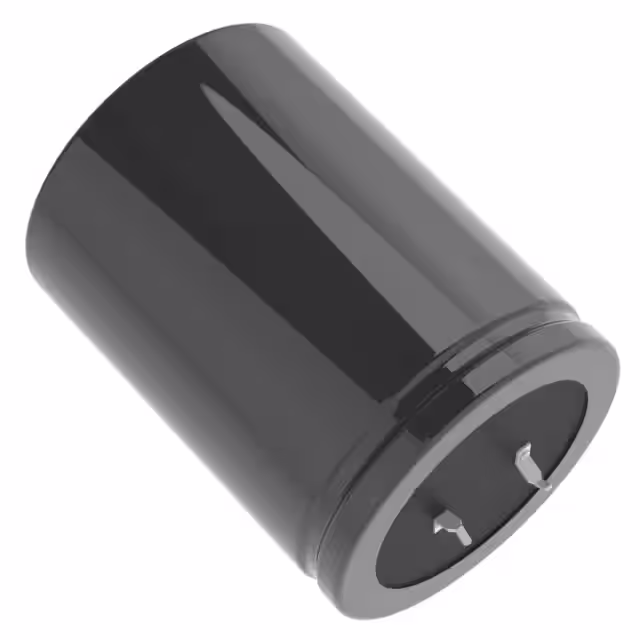

420USH820MEFC35X45CAP ALUM 820UF 20% 420V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 820 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 4.76 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF70G561EF500CAP ALUM 560UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 560 µF | ±20% | 500 V | 370mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.02 A @ 100 Hz | 6.04 A @ 10 kHz | 264 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
450HXC270MEFCSN30X45CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 3.052 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LQ272M180A052CAP ALUM 2700UF 20% 180V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 2700 µF | ±20% | 180 V | 86mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.34 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
E82D201VGS332MA80UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAL205256151E3CAP ALUM 150UF 400V RADIAL TH |
0 |
|
Datasheet |
052 PED-PW | Tape & Box (TB) | Active | 150 µF | -10%, +30% | 400 V | 850mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | - | 665 mOhms | 0.689" (17.50mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
510DX338M010ER5OCAP ALUM 3300UF 20% 10V RADIAL |
0 |
|
Datasheet |
510DX | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
678D338M016FR3DCAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 3300 µF | ±20% | 16 V | 74mOhm @ 20Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.358 A @ 120 Hz | 1.94 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
ELG567M450AT6AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.61 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
180MXC1800MEFC30X50CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215619332E3CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 3300 µF | ±20% | 100 V | 123mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 100 Hz | - | 116 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215659332E3CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 3300 µF | ±20% | 100 V | 123mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 100 Hz | - | 116 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL211949471E3CAP ALUM 470UF 100V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 470 µF | -10%, +50% | 100 V | 340mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.07 A @ 100 Hz | - | 280 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole |
