Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC40E473EL040CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 47 mF | ±20% | 40 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.42 A @ 100 Hz | 10.59 A @ 10 kHz | 21 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
GM2W391MND3045CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
GM | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.86 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
ALC40C471DF400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 470 µF | ±20% | 400 V | 277mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 100 Hz | 4.4 A @ 10 kHz | 192 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70C333EL063CAP ALUM 33000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 33000 µF | ±20% | 63 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.75 A @ 100 Hz | 13.51 A @ 10 kHz | 15 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70D333EL063CAP ALUM 33000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 33000 µF | ±20% | 63 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.75 A @ 100 Hz | 13.51 A @ 10 kHz | 15 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC70E333EL063CAP ALUM 33000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 33000 µF | ±20% | 63 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.75 A @ 100 Hz | 13.51 A @ 10 kHz | 15 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70F333EL063CAP ALUM 33000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 33000 µF | ±20% | 63 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.75 A @ 100 Hz | 13.51 A @ 10 kHz | 15 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|

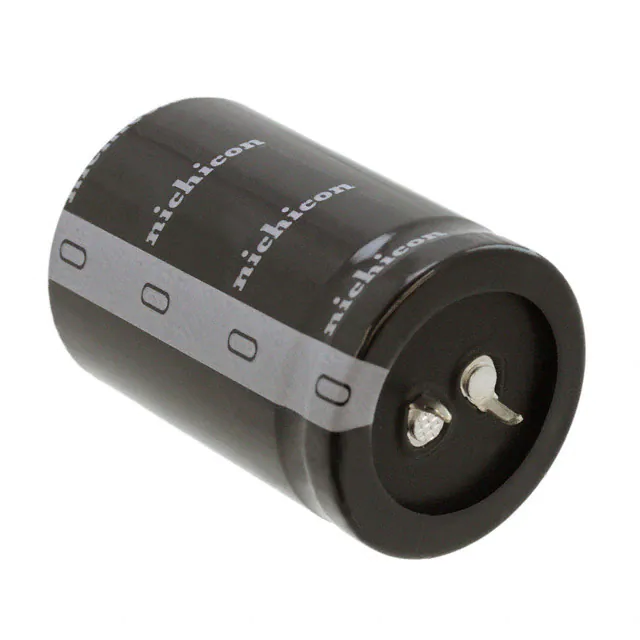

LKX2W561MESC50CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.99 A @ 120 Hz | 2.8457 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH169UC333VMB2CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 330 µF | ±20% | 350 V | 290mOhm @ 100Hz | 14000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 7.8 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.933" (74.50mm) | - | Chassis Mount | |
|

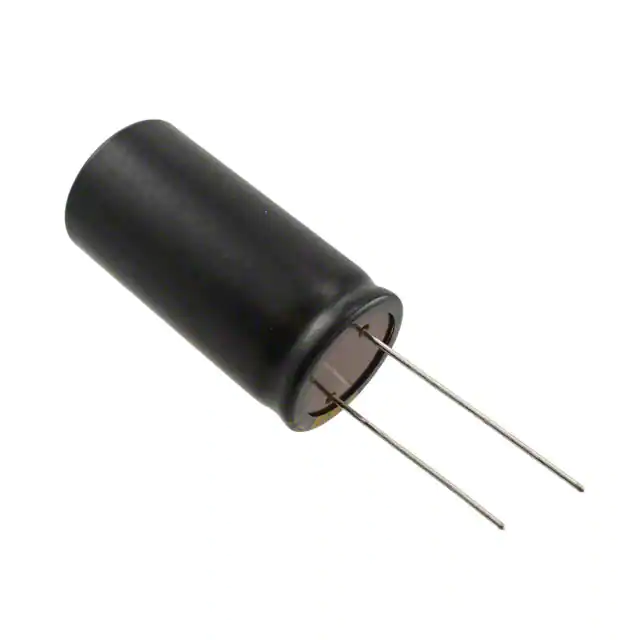

UKW1V153MRDCAP ALUM 15000UF 20% 35V RADIAL |
4 |
|
Datasheet |
UKW | Bulk | Obsolete | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.3 A @ 120 Hz | 4.945 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
E82D501VND561MB60UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ALV70A201DH700CAP ALUM 85C 200UF 700VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 200 µF | ±20% | 700 V | 2.851Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | 1.65 A @ 10 kHz | 2.657 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
400MXH680MEFCSN30X50CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.374 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215847123E3CAP ALUM 12000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 40 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215887123E3CAP ALUM 12000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 40 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205826153E3CAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 25 V | 27mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.43 A @ 100 Hz | - | 21 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205846153E3CAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 25 V | 27mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.43 A @ 100 Hz | - | 21 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALS80A361DA450CAP ALUM 360UF 20% 450V SCREW CH |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 360 µF | ±20% | 450 V | 427mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 6.1 A @ 10 kHz | 262 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
MAL211948102E3CAP ALUM 1000UF 63V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 1000 µF | -10%, +50% | 63 V | 160mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.43 A @ 100 Hz | - | 110 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF40G273EG040CAP ALUM 27000UF 20% 40V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 27000 µF | ±20% | 40 V | 39mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.5 A @ 100 Hz | 7.63 A @ 10 kHz | 35 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole, Press-Fit |
