Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E82D301VQT222MB80UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
50LSW6800M36X50CAP ALUM 6800UF 20% 50V SCREW CH |
0 |
|
Datasheet |
LSW | Bulk | Not For New Designs | 6800 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 3.888 A @ 10 kHz | - | - | 1.417" Dia (36.00mm) | 2.087" (53.00mm) | - | Chassis Mount | |
|
ALC70A202EL350CAP ALUM 2000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 350 V | 77mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.77 A @ 100 Hz | 11.15 A @ 10 kHz | 43 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70C202EL350CAP ALUM 2000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 350 V | 77mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.77 A @ 100 Hz | 11.15 A @ 10 kHz | 43 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC70D202EL350CAP ALUM 2000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 350 V | 77mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.77 A @ 100 Hz | 11.15 A @ 10 kHz | 43 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC70E202EL350CAP ALUM 2000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 350 V | 77mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.77 A @ 100 Hz | 11.15 A @ 10 kHz | 43 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70F202EL350CAP ALUM 2000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 350 V | 77mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.77 A @ 100 Hz | 11.15 A @ 10 kHz | 43 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALF40C471EG500CAP ALUM 470UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 470 µF | ±20% | 500 V | 480mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 6.42 A @ 10 kHz | 390 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole, Press-Fit | |
|
|
PEH169PD433VMB2CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 3.3 mF | ±20% | 100 V | 42mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | 18.3 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
381LX562M100A062CAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 5600 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
ALS80A102DB250CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 1000 µF | ±20% | 250 V | 202mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 7.4 A @ 10 kHz | 128 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
EKMS551VSN271MR50SCAP ALUM 270UF 20% 550V SNAP TH |
0 |
|
- |
KMS | Bulk | Active | 270 µF | ±20% | 550 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
475MXT560MEFCSN25X60CAP ALUM 560UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXT | Bulk | Active | 560 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALF80G621EH500CAP ALUM 620UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF80 | Bulk | Active | 620 µF | ±20% | 500 V | 283mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.64 A @ 100 Hz | 8.29 A @ 10 kHz | 197 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|
ALF20C332EL200CAP ALUM 3300UF 20% 200V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 3300 µF | ±20% | 200 V | 46mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.83 A @ 100 Hz | 9.17 A @ 10 kHz | 37 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole, Press-Fit | |
|
|
ALF20G102EL450CAP ALUM 1000UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 1000 µF | ±20% | 450 V | 114mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.95 A @ 100 Hz | 9.32 A @ 10 kHz | 75 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole, Press-Fit | |
|
|
ALS31A331DB400CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 330 µF | ±20% | 400 V | 382mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | 5.5 A @ 10 kHz | 260 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
MAL215619472E3CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 4700 µF | ±20% | 100 V | 90mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 100 Hz | - | 86 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215659472E3CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 4700 µF | ±20% | 100 V | 90mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 100 Hz | - | 86 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

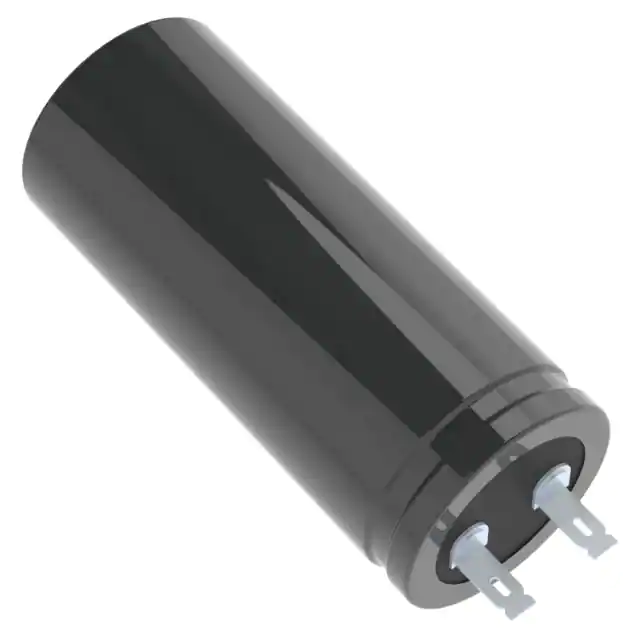

LKG1H103MKNCAP ALUM 10000UF 20% 50V SLD LUG |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.6 A @ 120 Hz | - | - | 0.551" (14.00mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Through Hole |
