Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70C911EL550CAP ALUM 910UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 910 µF | ±20% | 550 V | 484mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 100 Hz | 5.88 A @ 10 kHz | 421 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
E32D400LPN212UA79UCAP ALUM 2.1MF 40V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 2.1 mF | -10%, +75% | 40 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
|
E32D800MLN222MA41UCAP ALUM 2.2MF 20% 80V SCREW CHA |
0 |
|
- |
U32D | Bulk | Active | 2.2 mF | ±20% | 80 V | 67mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.09 A @ 120 Hz | 4.9898 A @ 50 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 1.614" (41.00mm) | - | Chassis Mount | |
|
|
53D132G050GJ6CAP ALUM 1300UF 50V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 1300 µF | -10%, +75% | 50 V | 131mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 1.691 A @ 1 kHz | - | - | 0.760" Dia x 1.642" L (19.30mm x 41.70mm) | - | - | Through Hole | |
|
|
53D282G025GJ6CAP ALUM 2800UF 25V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 2800 µF | -10%, +75% | 25 V | 103mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.898 A @ 1 kHz | - | - | 0.760" Dia x 1.642" L (19.30mm x 41.70mm) | - | - | Through Hole | |
|
|
E36D750LPN342UA54UCAP ALUM 3.4MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 3.4 mF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
MAL219356681E3CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Bulk | Active | 680 µF | ±20% | 400 V | 150mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 100 Hz | 4.23 A @ 10 kHz | 90 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
E32D500HPN172UA79UCAP ALUM 1.7MF 50V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 1.7 mF | -10%, +75% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
ALF20G472EP200CAP ALUM 4700UF 20% 200V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 4700 µF | ±20% | 200 V | 45mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.08 A @ 100 Hz | 11.73 A @ 10 kHz | 32 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|

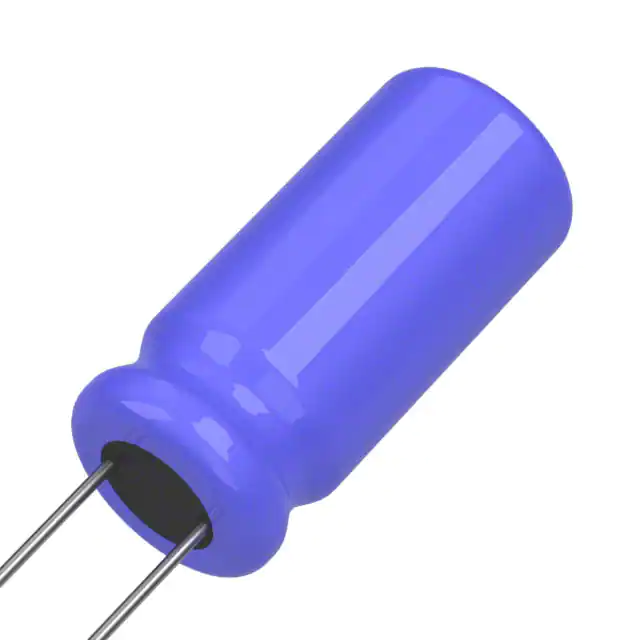

678D227M025CG5DCAP ALUM 220UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 220 µF | ±20% | 25 V | 300mOhm @ 20Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 100 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
E36D451HPN250TA41UCAP ALUM 25UF 450V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 25 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 1.614" (41.00mm) | - | Chassis Mount | |
|
|
DCM143U025AB2BCAP ALUM 14000UF 25V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 14000 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.187" (80.95mm) | - | Chassis Mount | |
|
|
DCM143U025AC2BCAP ALUM 14000UF 25V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 14000 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
|
ALC70C102EL500CAP ALUM 1000UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1000 µF | ±20% | 500 V | 209mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.53 A @ 10 kHz | 150 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70D102EL500CAP ALUM 1000UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1000 µF | ±20% | 500 V | 209mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.53 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC70E102EL500CAP ALUM 1000UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1000 µF | ±20% | 500 V | 209mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.53 A @ 10 kHz | 150 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70F102EL500CAP ALUM 1000UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1000 µF | ±20% | 500 V | 209mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.53 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC40A102EL350CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 1 mF | ±20% | 350 V | 120mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5 A @ 100 Hz | 9.98 A @ 10 kHz | 78 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
MAL225719471E3CAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 470 µF | ±20% | 500 V | 480mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 100 Hz | 3.57 A @ 10 kHz | 420 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43416C6567A000CAP ALUM 560UF 500V SNAP TH |
0 |
|
Datasheet |
B43416 | Bulk | Active | 560 µF | -10%, +20% | 500 V | - | - | -25°C ~ 60°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
