Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKHE401VSN102MA45SCAP ALUM 1MF 20% 400V SNAP TH |
0 |
|
Datasheet |
KHE | Bulk | Active | 1 mF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.3383 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL212314102E3CAP ALUM 1000UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
SAL-A 123 | Tape & Box (TB) | Obsolete | 1000 µF | ±20% | 10 V | 180mOhm | 20000 Hrs @ 125°C | -55°C ~ 125°C | - | - | General Purpose | - | - | 200 mOhms | - | 0.508" Dia x 1.260" L (12.90mm x 32.00mm) | - | - | Through Hole | |
|
|
E36D251LPN531TAA5UCAP ALUM 530UF 250V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 530 µF | -10%, +50% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
ALS41A681DF350CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS41 | Box | Active | 680 µF | ±20% | 350 V | 149mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 8.9 A @ 10 kHz | 99 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
E36D630HLN103MA67UCAP ALUM 10MF 20% 63V SCREW CHAS |
0 |
|
- |
U36D | Bulk | Active | 10 mF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 2.638" (67.00mm) | - | Chassis Mount | |
|
|
E36D400LPN133UAE3UCAP ALUM 13MF 40V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 13 mF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
E32D101HLN472MA79UCAP ALUM 4.7MF 20% 100V SCREW CH |
0 |
|
- |
U32D | Bulk | Active | 4.7 mF | ±20% | 100 V | 27.1mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.82 A @ 120 Hz | 11.7306 A @ 50 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
MAL205147153E3CAP ALUM 15000UF 20% 40V RADIAL |
0 |
|
Datasheet |
051 PEC-PW | Tape & Box (TB) | Active | 15000 µF | ±20% | 40 V | 50mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | - | 35 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

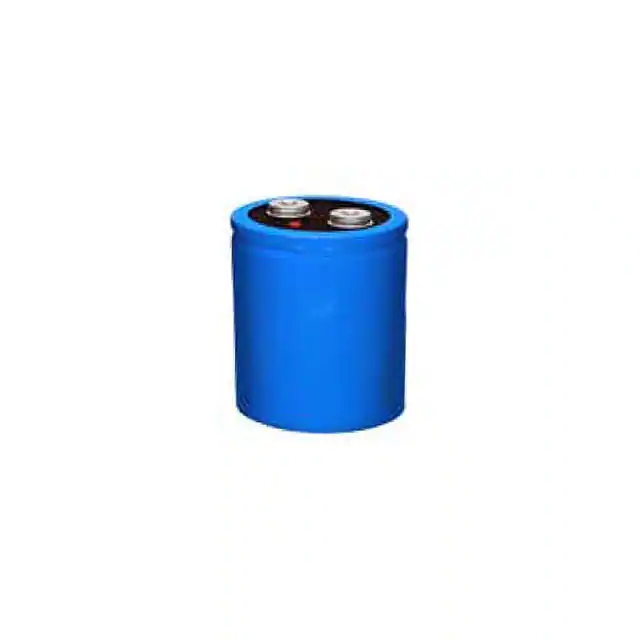

DCM472U075AH2BCAP ALUM 4700UF 75V SCREW CHAS M |
0 |
|
Datasheet |
DCM | Bulk | Active | 4700 µF | - | 75 V | - | - | - | - | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 2.687" (68.25mm) | - | Chassis Mount | |
|
|
MAL212367228CAP ALUM 2.2UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 40 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212367228E3CAP ALUM 2.2UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 40 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
E36D201LPN641TAA5UCAP ALUM 640UF 200V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 640 µF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
E32D400HPN492UAE3UCAP ALUM 4.9MF 40V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 4.9 mF | -10%, +75% | 40 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|

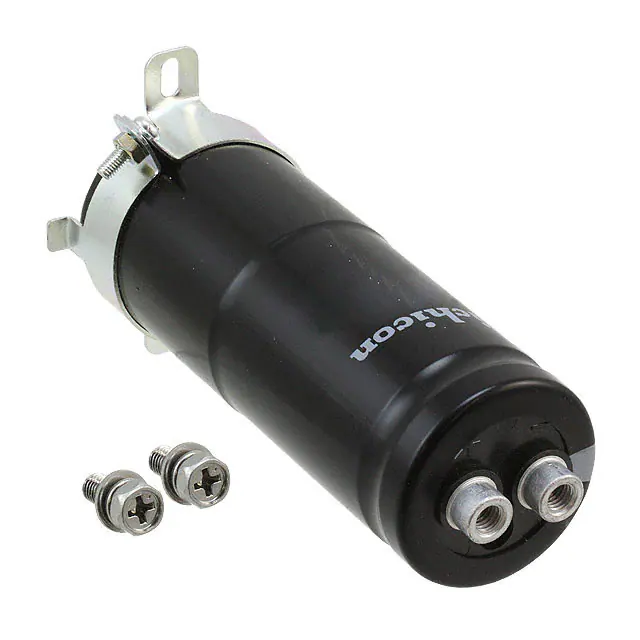

LNT1A473MSECAP ALUM 47000UF 20% 10V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 47000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 7.13 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
ALS80H303KE063CAP ALUM 30000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 30000 µF | ±20% | 63 V | 20mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | 16.4 A @ 10 kHz | 17 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS81H303KE063CAP ALUM 30000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 30000 µF | ±20% | 63 V | 20mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | 16.4 A @ 10 kHz | 17 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
MAL212360228CAP ALUM 2.2UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 10 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212360228E3CAP ALUM 2.2UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 10 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
ALF40G473EL040CAP ALUM 47000UF 20% 40V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 47000 µF | ±20% | 40 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.42 A @ 100 Hz | 10.59 A @ 10 kHz | 21 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole, Press-Fit | |
|
|
DCMC822M075BA5MCAP ALUM 8200UF 20% 75V SCREW CH |
0 |
|
Datasheet |
DCMC | Bulk | Active | 8200 µF | ±20% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 2.187" (55.55mm) | - | Chassis Mount |
