Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215611223E3CAP ALUM 22000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 22000 µF | ±20% | 50 V | 51mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.97 A @ 100 Hz | - | 46 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL215651223E3CAP ALUM 22000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 22000 µF | ±20% | 50 V | 51mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.97 A @ 100 Hz | - | 46 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALC80F112EL450CAP ALUM 1100UF 20% 450V SNAP TH |
0 |
|
Datasheet |

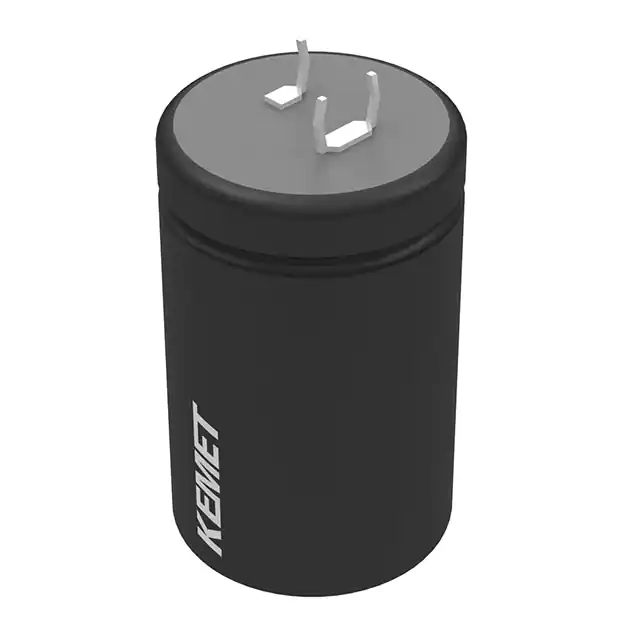

ALC80 | Bulk | Active | 1100 µF | ±20% | 450 V | 125.1mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 100 Hz | 11.12 A @ 10 kHz | 74 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
E32D150HPN722UC54UCAP ALUM 7.2MF 15V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 7.2 mF | -10%, +75% | 15 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
380LX271M500A052CAP ALUM 270UF 20% 500V SNAP TH |
0 |
|
Datasheet |

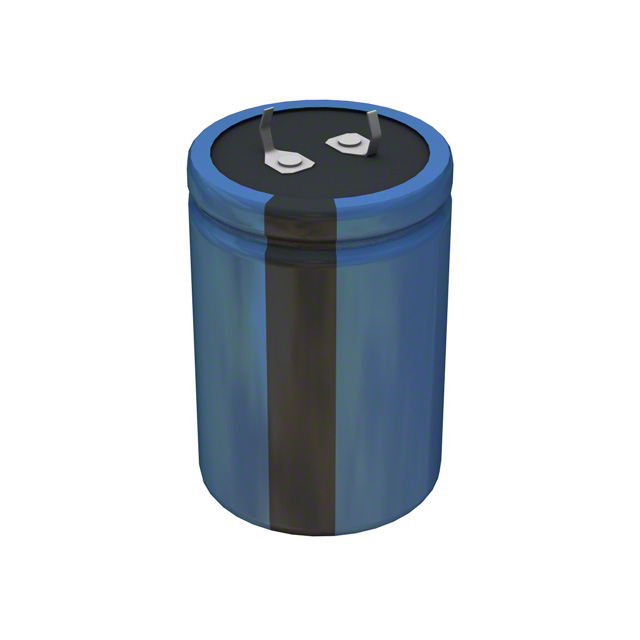

380LX | Bulk | Active | 270 µF | ±20% | 500 V | 746mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
53D562F035JJ6CAP ALUM 5600UF 35V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 5600 µF | -10%, +50% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012" Dia x 1.642" L (25.70mm x 41.70mm) | - | - | Through Hole | |
|
ALC80A821EL500CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |

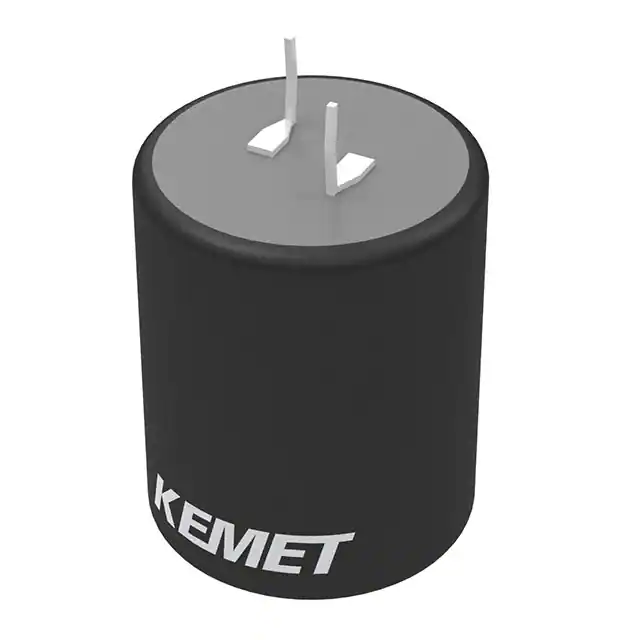

ALC80 | Bulk | Active | 820 µF | ±20% | 500 V | 215mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.39 A @ 100 Hz | 9.86 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC80C821EL500CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 820 µF | ±20% | 500 V | 215mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.39 A @ 100 Hz | 9.86 A @ 10 kHz | 150 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC80D821EL500CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 820 µF | ±20% | 500 V | 215mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.39 A @ 100 Hz | 9.86 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC80E821EL500CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 820 µF | ±20% | 500 V | 215mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.39 A @ 100 Hz | 9.86 A @ 10 kHz | 150 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC80F821EL500CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 820 µF | ±20% | 500 V | 215mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.39 A @ 100 Hz | 9.86 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
MAL205018682E3CAP ALUM 6800UF 63V SOLDER LUG |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 6800 µF | -10%, +30% | 63 V | 35mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | - | 27 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Chassis Mount | |
|
MAL205058682E3CAP ALUM 6800UF 63V RADIAL TH |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 6800 µF | -10%, +30% | 63 V | 35mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | - | 27 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
|
MAL215618153E3CAP ALUM 15000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 15000 µF | ±20% | 63 V | 52mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.89 A @ 100 Hz | - | 47 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
MAL215658153E3CAP ALUM 15000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 15000 µF | ±20% | 63 V | 52mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.89 A @ 100 Hz | - | 47 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL225719561E3CAP ALUM 560UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 500 V | 410mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.85 A @ 100 Hz | 3.99 A @ 10 kHz | 360 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
E36D500HPN143EAE3UCAP ALUM 14MF 50V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 14 mF | -10%, +40% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
MAL212360159CAP ALUM 15UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 35 V | 16Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 53 mA @ 100 Hz | - | 2.5 Ohms | - | 0.299" Dia x 0.803" L (7.60mm x 20.40mm) | - | - | Through Hole | |
|
|
MAL212360159E3CAP ALUM 15UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 35 V | 16Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 53 mA @ 100 Hz | - | 2.5 Ohms | - | 0.299" Dia x 0.803" L (7.60mm x 20.40mm) | - | - | Through Hole | |
|
|
MAL212364689CAP ALUM 68UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 10 V | 5.3Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 110 mA @ 100 Hz | - | 1 Ohms | - | 0.299" Dia x 0.803" L (7.60mm x 20.40mm) | - | - | Through Hole |
