Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210257221E3CAP ALUM 220UF 20% 450V SCREW CH |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 220 µF | ±20% | 450 V | 503mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | - | 313 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
LNR2E222MSENCAP ALUM 2200UF 20% 250V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 2200 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.8 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
E36D200LPN703UUB7UCAP ALUM 70MF 20V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 70 mF | -10%, +75% | 20 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
600D156F100DE4CAP ALUM 15UF 100V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 15 µF | -10%, +50% | 100 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 1.125" L (9.53mm x 28.58mm) | - | - | Through Hole | |
|
ALS81A622KF200CAP ALUM 6200UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 6200 µF | ±20% | 200 V | 49mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | 14.4 A @ 10 kHz | 35 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
LNY2W821MSEFBBCAP ALUM 820UF 20% 450V SCREW CH |
0 |
|
Datasheet |
LNY | Bulk | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.86 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.480" (63.00mm) | - | Chassis Mount | |
|
|
LNY2W821MSEFBNCAP ALUM 820UF 20% 450V SCREW CH |
0 |
|
Datasheet |
LNY | Bulk | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.86 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.480" (63.00mm) | - | Chassis Mount | |
|
|
ALS31A681KF500CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 680 µF | ±20% | 500 V | 255mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 9.6 A @ 10 kHz | 133 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
53D183G035KT7CAP ALUM 18000UF 35V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 18000 µF | -10%, +75% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.134" Dia x 3.642" L (28.80mm x 92.50mm) | - | - | Through Hole | |
|
|
ELXS601VSN271MA50SCAP ALUM 270UF 20% 600V SNAP TH |
0 |
|
- |
LXS | Bulk | Active | 270 µF | ±20% | 600 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.2308 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ALF20C332KP350CAP ALUM 3300UF 20% 350V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 3300 µF | ±20% | 350 V | 54mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.54 A @ 100 Hz | 11.57 A @ 10 kHz | 36 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
LNR2A153MSENCAP ALUM 15000UF 20% 100V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 15000 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 6.9 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
E36D400HPN543UCE3UCAP ALUM 54MF 40V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 54 mF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|

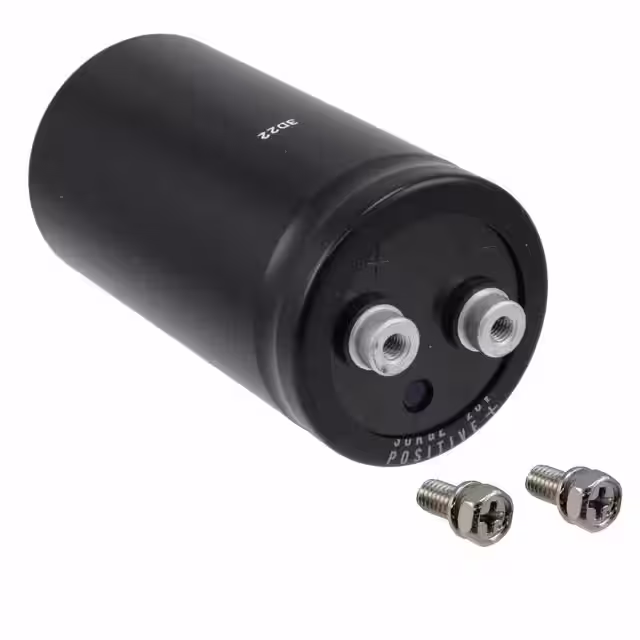

16LSW100000MNB51X98CAP ALUM 100000UF 20% 16V SCREW |
0 |
|
Datasheet |
LSW | Bulk | Not For New Designs | 100000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.3 A @ 120 Hz | 12.204 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
E36D750LPN103UDA5UCAP ALUM 10MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 10 mF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
E32D401CDS102MC79UCAP ALUM 1MF 20% 400V SCREW |
0 |
|
- |
U32D | Bulk | Active | 1 mF | ±20% | 400 V | 143.3mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.99 A @ 120 Hz | 6.0648 A @ 50 kHz | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.150" (80.00mm) | - | Chassis, Stud Mount | |
|
|
E32D101HPN152QCA5UCAP ALUM 1.5MF 100V SCREW CHAS M |
0 |
|
- |
U32D | Bulk | Active | 1.5 mF | -10%, +30% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
LNC2G102MSEFBBCAP ALUM 1000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 1000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 12.04 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.480" (63.00mm) | - | Chassis Mount | |
|
|
LNC2G102MSEFBNCAP ALUM 1000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 1000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 12.04 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.480" (63.00mm) | - | Chassis Mount | |
|
|
600D107F030DD4CAP ALUM 100UF 30V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 100 µF | -10%, +50% | 30 V | 1.5Ohm @ 120Hz | - | -55°C ~ 125°C | Polar | - | General Purpose | 162 mA @ 120 Hz | 175 mA @ 1 kHz | - | - | 0.375" Dia x 0.937" L (9.52mm x 23.80mm) | - | - | Through Hole |
