Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL209515102E3CAP ALUM 1000UF 20% 350V SNAP TH |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 1000 µF | ±20% | 350 V | 112mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.1 A @ 100 Hz | - | 68 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
MAL209565102E3CAP ALUM 1000UF 20% 350V RADIAL |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 1000 µF | ±20% | 350 V | 112mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.1 A @ 100 Hz | - | 68 mOhms | - | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
ALS30C222NF450CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 2.2 mF | ±20% | 450 V | 59mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | 21.1 A @ 10 kHz | 41 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
B43512A0188M000CAP ALUM 1800UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43512 | Bulk | Active | 1800 µF | ±20% | 420 V | 70mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.12 A @ 100 Hz | - | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.819" (97.00mm) | - | Through Hole | |
|
|
E82D251VQT682MCA5UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PEH200KD5220MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 22 mF | ±20% | 40 V | 12mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 100 Hz | 29.2 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
|
ALS40A102KF415CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS40 | Box | Active | 1 mF | ±20% | 415 V | 122mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | 12.3 A @ 10 kHz | 77 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
PEH200VD3470MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 470 µF | ±20% | 400 V | 140mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | 14.8 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
|
PEH200VD3470MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 470 µF | ±20% | 400 V | 140mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | 14.8 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
672D477H020EK5JCAP ALUM 470UF 20V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 470 µF | - | 20 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.098" (27.90mm) | - | Through Hole | |
|
|
E82D451VNT222MC80UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
CAP-25/440RCAP ALUM 25UF 3% 440V QC CHAS MT |
0 |
|
Datasheet |
HCK, Motor Run | Box | Active | 25 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | 2.000" Dia (50.80mm) | 2.500" (63.50mm) | - | Chassis Mount | |
|
|
ALS30A332KF250CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 3.3 mF | ±20% | 250 V | 45mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 100 Hz | 12.4 A @ 10 kHz | 36 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
MAL209527681E3CAP ALUM 680UF 20% 450V SNAP TH |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 680 µF | ±20% | 450 V | 147mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | - | 87 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
|
MAL209577681E3CAP ALUM 680UF 20% 450V RADIAL |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 680 µF | ±20% | 450 V | 147mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | - | 87 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
|
E82D201VNT103MCA5UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

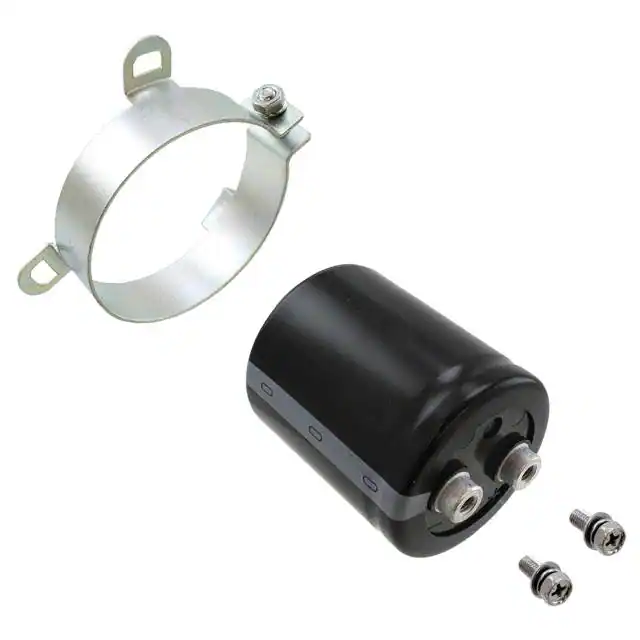

LNY2V152MSEFCAP ALUM 1500UF 20% 350V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 1500 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.362" (60.00mm) | - | Chassis Mount | |
|
CGS431T300R2CCAP ALUM 430UF 300V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 430 µF | -10%, +50% | 300 V | 228mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
|
510DX187M040DM5DCAP ALUM 180UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 180 µF | ±20% | 40 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
|
E32D251LPN601TU79UCAP ALUM 600UF 250V SCREW CHAS M |
0 |
|
- |
U32D | Bulk | Active | 600 µF | -10%, +50% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
