Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL212385159CAP ALUM 15UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 16 V | 19Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 47 mA @ 100 Hz | - | 2.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212385159E3CAP ALUM 15UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 16 V | 19Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 47 mA @ 100 Hz | - | 2.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
PEH200OT4220MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 2.2 mF | ±20% | 420 V | 32mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.5 A @ 100 Hz | 37 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
DCMC222T400CB5FCAP ALUM 2200UF 400V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 2200 µF | -10%, +50% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 3.187" (80.95mm) | - | Chassis Mount | |
|
|
PEH169QH422VMU2CAP ALUM SCREW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 2.2 mF | ±20% | 160 V | 59mOhm @ 100Hz | 17000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | 18.1 A @ 10 kHz | - | 0.866" (22.00mm) | 2.031" Dia (51.60mm) | 2.972" (75.50mm) | - | Chassis Mount | |
|
MAL209619561E3CAP ALUM 560UF 20% 500V SNAP TH |
0 |
|
Datasheet |
096 PLL-4TSI | Bulk | Active | 560 µF | ±20% | 500 V | 333mOhm | 5000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 5.4 A @ 10 kHz | 296 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.756" (70.00mm) | - | Through Hole | |
|
MAL209669561E3CAP ALUM 560UF 20% 500V RADIAL |
0 |
|
Datasheet |
096 PLL-4TSI | Tape & Box (TB) | Active | 560 µF | ±20% | 500 V | 250mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | - | 296 mOhms | - | 1.378" Dia (35.00mm) | 2.953" (75.00mm) | - | Through Hole | |
|

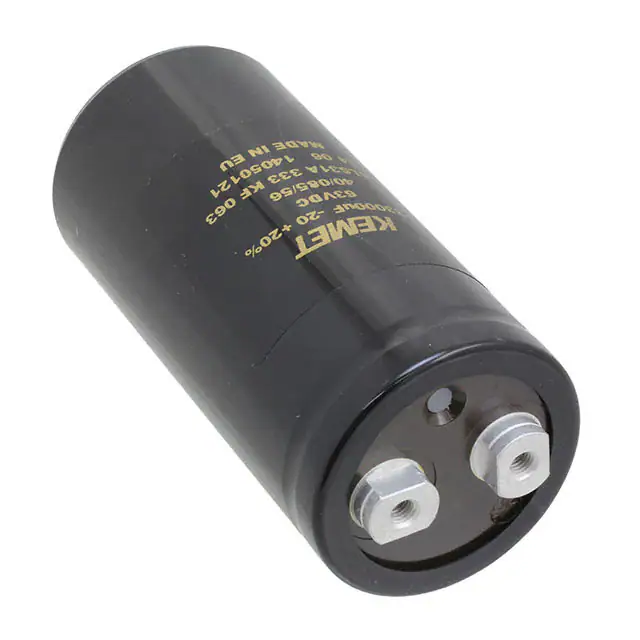

ALS31A333KF063CAP ALUM 33000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS31 | Bulk | Active | 33000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | 18 A @ 10 kHz | 9 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis, Stud Mount | |
|
|
E32D600HPN163TED0UCAP ALUM 16MF 60V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 16 mF | -10%, +50% | 60 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
ALS30A472ND200CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 4.7 mF | ±20% | 200 V | 48mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 100 Hz | 11.5 A @ 10 kHz | 42 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 3.031" (77.00mm) | - | Chassis Mount | |
|
MAL210127223E3CAP ALUM 22000UF 20% 40V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 40 V | 19mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | 15 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.496" (88.80mm) | - | Chassis Mount | |
|
|
MAL210167223E3CAP ALUM 22000UF 20% 40V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 40 V | 19mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | 15 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.496" (88.80mm) | - | Chassis Mount | |
|
|
ALS30C152QC500CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 1.5 mF | ±20% | 500 V | 110mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | 14.3 A @ 10 kHz | 87 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 2.717" (69.00mm) | - | Chassis Mount | |
|
|
E32D150HPN863UDE3UCAP ALUM 86MF 15V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 86 mF | -10%, +75% | 15 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNY2V272MSEGBBCAP ALUM 2700UF 20% 350V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 2700 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 2.677" (68.00mm) | - | Chassis Mount | |
|
|
LNY2V272MSEGBNCAP ALUM 2700UF 20% 350V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 2700 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 2.677" (68.00mm) | - | Chassis Mount | |
|
|
B43516A9158M007CAP ALUM 1500UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43516 | Bulk | Active | 1500 µF | ±20% | 400 V | 50mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.25 A @ 100 Hz | - | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.819" (97.00mm) | - | Through Hole | |
|
MAL210657103E3CAP ALUM 10000UF 40V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 10000 µF | -10%, +30% | 40 V | 23mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 100 Hz | - | 16 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 4.319" (109.70mm) | - | Chassis Mount | |
|
|
E37F401CGN182KCA54CAP ALUM 1.8MF 10% 400V SCREW CH |
0 |
|
- |
U37F | Bulk | Active | 1.8 mF | ±10% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
ALS70A162KF550CAP ALUM 1600UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 1600 µF | ±20% | 550 V | 289mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 11.5 A @ 10 kHz | 252 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount |
