Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH169MV568VMU2CAP ALUM SCREW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 68 mF | ±20% | 63 V | 5mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 100 Hz | 54.2 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
PSU32465CAP ALUM 324UF 165V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 324 µF | 0%, +20% | 165 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813" Dia (46.05mm) | 4.375" (111.13mm) | - | Chassis Mount | |
|
CGS173U050R3CCAP ALUM 17000UF 50V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 17000 µF | -10%, +75% | 50 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 9.75 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
CGS481T350R2LCAP ALUM 480UF 350V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 480 µF | -10%, +50% | 350 V | 206mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
|
E36D750HPN373TDB7UCAP ALUM 37MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 37 mF | -10%, +50% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
E32D400LPN513UDE3UCAP ALUM 51MF 40V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 51 mF | -10%, +75% | 40 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
CGS702U075R2LCAP ALUM 7000UF 75V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 7000 µF | -10%, +75% | 75 V | 44mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 120 Hz | 6.89 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
|
CGS213U035R3CCAP ALUM 21000UF 35V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 21000 µF | -10%, +75% | 35 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.32 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
53D393G025MT6CAP ALUM 39000UF 25V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 39000 µF | -10%, +75% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.374" Dia x 3.642" L (34.90mm x 92.50mm) | - | - | Through Hole | |
|
LKG1K153MKNFCAP ALUM 15000UF 20% 80V SLD LUG |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 15000 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 6.5 A @ 120 Hz | - | - | 0.551" (14.00mm) | 1.575" Dia (40.00mm) | 4.055" (103.00mm) | - | Through Hole | |
|
|
E36D750LPN393TDB7UCAP ALUM 39MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 39 mF | -10%, +50% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|

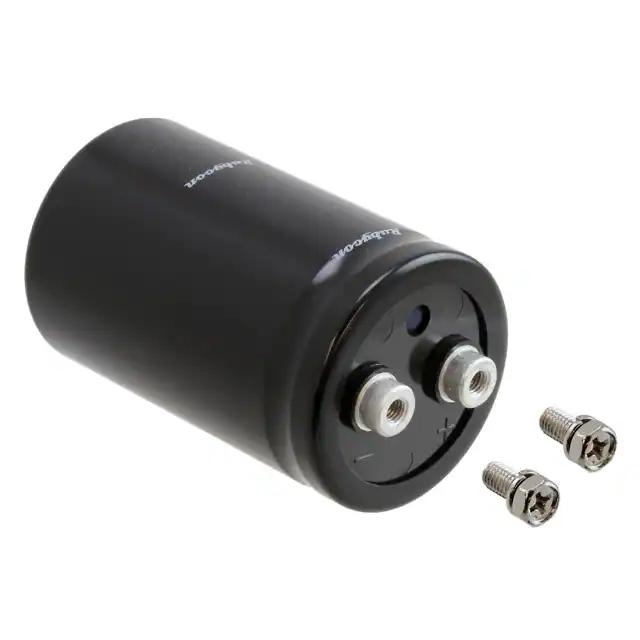

50LSW27000MEFC51X83CAP ALUM 27000UF 20% 50V SCREW |
0 |
|
Datasheet |
LSW | Bulk | Not For New Designs | 27000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 8.1 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
|
E36D451LPN112TDB7QCAP ALUM 1.1MF 450V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 1.1 mF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
ALS80A134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80C134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80H134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81A134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81C134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81H134LM040CAP ALUM 130000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 130000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 100 Hz | 26.1 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
MAL209536152E3CAP ALUM 1500UF 20% 400V SNAP TH |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 1500 µF | ±20% | 400 V | 75mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | - | 47 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | - | Through Hole |
