Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS81U124NF063CAP ALUM 120000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 120000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.2 A @ 100 Hz | 24.6 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS31C334QH025CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 330 mF | ±20% | 25 V | 8mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 26.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
PEH200XN4470MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 4.7 mF | ±20% | 385 V | 19mOhm @ 100Hz | 29000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 100 Hz | 44.4 A @ 10 kHz | - | 1.260" (32.00mm) | 3.606" Dia (91.60mm) | 3.878" (98.50mm) | - | Chassis Mount | |
|
LQR2W182MSEFCAP ALUM 1800UF 20% 450V SCREW |
2 |
|
Datasheet |
LQR | Bulk | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
|
ALS30A224NF025CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 220 mF | ±20% | 25 V | 6mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.1 A @ 100 Hz | 30.8 A @ 10 kHz | 6 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS31A224NF025CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 220 mF | ±20% | 25 V | 6mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.1 A @ 100 Hz | 30.8 A @ 10 kHz | 6 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
601D567F100JP3CAP ALUM 560UF 100V AXIAL TH |
0 |
|
Datasheet |
601D | Bulk | Active | 560 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000" Dia x 2.625" L (25.40mm x 66.68mm) | - | - | Through Hole | |
|
LNK2V272MSEGCAP ALUM 2700UF 20% 350V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 13.86 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
|
B43415C6218A000CAP ALUM 2100UF 500V SOLDER LUG |
0 |
|
Datasheet |
B43415 | Bulk | Active | 2100 µF | -10%, +20% | 500 V | - | - | -25°C ~ 60°C | Polar | - | General Purpose | - | - | - | 0.787" (20.00mm) | 1.969" Dia (50.00mm) | 3.181" (80.80mm) | - | Through Hole | |
|

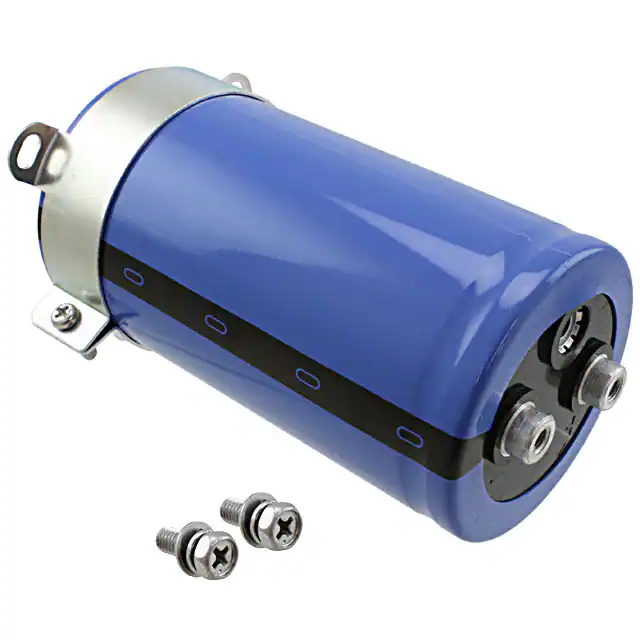

LNR1E224MSECAP ALUM 220000UF 20% 25V SCREW |
4 |
|
Datasheet |
LNR | Bulk | Active | 220000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.9 A @ 120 Hz | 21.735 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
ALS70A272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
500C823U035EF2BCAP ALUM 82000UF 35V SCREW CHAS |
0 |
|
Datasheet |
500C | Bulk | Active | 82000 µF | -10%, +75% | 35 V | 9.4mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | 19.2 A @ 120 Hz | 21.12 A @ 10 kHz | - | 0.750" (19.05mm) | 1.750" Dia (44.45mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
CGS133U040V4CCAP ALUM 13000UF 40V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 13000 µF | -10%, +75% | 40 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 120 Hz | 13.65 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
E36L401HLS332ME92UCAP ALUM 3.3MF 20% 400V SCREW |
0 |
|
- |
U36L | Bulk | Active | 3.3 mF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.661" (93.00mm) | - | Chassis, Stud Mount | |
|
|
ERWE3H1LGN302ME96UCAP ALUM SCRW TERM GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
CGS381T500R3LCAP ALUM 380UF 500V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 380 µF | -10%, +50% | 500 V | 262mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
E36L451CDN272MEA5UCAP ALUM 2.7MF 20% 450V SCREW CH |
0 |
|
- |
U36L | Bulk | Active | 2.7 mF | ±20% | 450 V | 49mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.3 A @ 120 Hz | 15.8 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
E36D251LPN822TED0UCAP ALUM 8.2MF 250V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 8.2 mF | -10%, +50% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
ALS70U822NJ350CAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 8200 µF | ±20% | 350 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | 23.8 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
ALS71H822NJ350CAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 8200 µF | ±20% | 350 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | 23.8 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount |
