Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210657223E3CAP ALUM 22000UF 40V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 22000 µF | -10%, +30% | 40 V | 16mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
E36D351LPN472TED0UCAP ALUM 4.7MF 350V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 4.7 mF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
E36D351HPN372TEE3UCAP ALUM 3.7MF 350V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 3.7 mF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
ALS71C752NJ400CAP ALUM 7500UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 7500 µF | ±20% | 400 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 23.7 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|

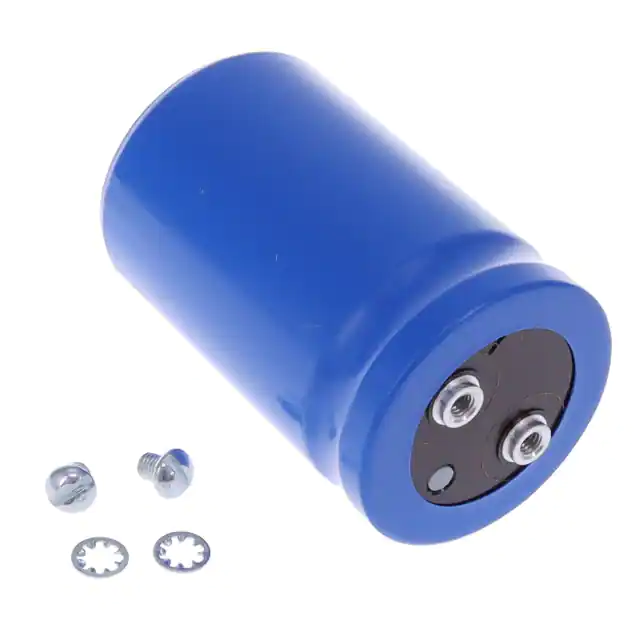

36D602G050BB2ACAP ALUM 6000UF 50V SCREW CHAS M |
0 |
|
Datasheet |
36D | Bulk | Obsolete | 6000 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875" (22.22mm) | 2.079" Dia (52.80mm) | 3.252" (82.60mm) | - | Chassis Mount | |
|
|
ALS70C272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS70H272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71A272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71C272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71H272LM550CAP ALUM 2700UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 2700 µF | ±20% | 550 V | 161mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | 17.5 A @ 10 kHz | 140 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
E36D800HPN104MEE34CAP ALUM 100MF 20% 80V SCREW CHA |
0 |
|
- |
U36D | Bulk | Active | 100 mF | ±20% | 80 V | 5.5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.42 A @ 120 Hz | 29.988 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
MAL250016222E3CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 400 V | 58mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | - | 46 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.362" (110.80mm) | - | Chassis Mount | |
|
|
MAL250056222E3CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 400 V | 58mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | - | 46 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.362" (110.80mm) | - | Chassis Mount | |
|
|
MAL250026222E3CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 400 V | 58mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.9 A @ 120 Hz | - | 46 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.358" (110.70mm) | - | Chassis Mount | |
|
|
MAL250066222E3CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 400 V | 58mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.9 A @ 120 Hz | - | 46 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.358" (110.70mm) | - | Chassis Mount | |
|
ALS80A272LM500CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 2700 µF | ±20% | 500 V | 80mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 18.8 A @ 10 kHz | 60 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80C272LM500CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 2700 µF | ±20% | 500 V | 80mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 18.8 A @ 10 kHz | 60 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80H272LM500CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 2700 µF | ±20% | 500 V | 80mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 18.8 A @ 10 kHz | 60 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81A272LM500CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 2700 µF | ±20% | 500 V | 80mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 18.8 A @ 10 kHz | 60 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81C272LM500CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 2700 µF | ±20% | 500 V | 80mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 18.8 A @ 10 kHz | 60 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.236" (133.00mm) | - | Chassis Mount |
