Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL250014222E3CAP ALUM 2200UF 20% 420V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 420 V | 49mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.4 A @ 120 Hz | - | 35 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.358" (110.70mm) | - | Chassis Mount | |
|
|
MAL250054222E3CAP ALUM 2200UF 20% 420V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 2200 µF | ±20% | 420 V | 49mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.4 A @ 120 Hz | - | 35 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.358" (110.70mm) | - | Chassis Mount | |
|
LNY2W272MSEGBBCAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 2700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
|
ALS41C473NT100CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS41 | Box | Active | 47 mF | ±20% | 100 V | 7mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 35.4 A @ 100 Hz | 36.6 A @ 10 kHz | 6 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
LNX2G332MSEHBBCAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 3300 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LNX2G332MSEHBNCAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 3300 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
E36L401CSS472MEA5UCAP ALUM 4.7MF 20% 400V SCREW |
0 |
|
- |
U36L | Bulk | Active | 4.7 mF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.173" (106.00mm) | - | Chassis, Stud Mount | |
|
MAL210226152E3CAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 1500 µF | ±20% | 400 V | 88mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 100 Hz | - | 59 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.362" (110.80mm) | - | Chassis Mount | |
|
|
MAL210266152E3CAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 1500 µF | ±20% | 400 V | 88mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 100 Hz | - | 59 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.362" (110.80mm) | - | Chassis Mount | |
|
|
7P901V360N042LCAP ALUM 360V POLAR |
0 |
|
- |
7P | Bulk | Active | 900 µF | -10%, +20% | 360 V | 221mOhm @ 120Hz | - | -20°C ~ 55°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.575" Dia (40.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LNU2H122MSEGBBCAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNU2H122MSEGBNCAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNU2H122MTEGCAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNK2W272MSEHBBCAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 15.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
|
ERHB631LGC102MD85UCAP ALUM 1000UF 20% 630V SCREW |
0 |
|
Datasheet |
RHB | Bulk | Active | 1000 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.74 A @ 3 kHz | - | 1.102" (28.00mm) | 2.500" Dia (63.50mm) | 3.504" (89.00mm) | - | Chassis Mount | |
|
|
E36F451HLN392MDD05CAP ALUM 3.9MF 20% 450V SCREW CH |
0 |
|
- |
U36F | Bulk | Active | 3.9 mF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
DCMC682M400DF5HCAP ALUM 6800UF 20% 400V SCREW |
0 |
|
Datasheet |
DCMC | Bulk | Active | 6800 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|

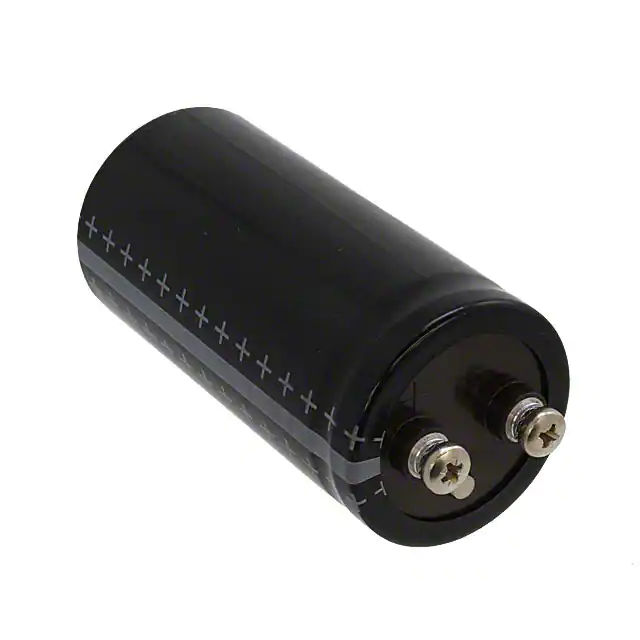

B41458B7100M003CAP ALUM 100000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
ETOR451CTH102ME54UCAP ALUM 1MF 20% 450V SCREW CHAS |
0 |
|
- |
UTOR | Bulk | Active | 1 mF | ±20% | 450 V | 89mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 2.205" (56.00mm) | - | Chassis Mount | |
|
|
12100132Tools/Equipment/Hardware |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
