Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS71C472NF500CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71H472NF500CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71P472NF500CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71U472NF500CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
E36L421CDS472MEA5UCAP ALUM 4.7MF 20% 420V SCREW |
0 |
|
- |
U36L | Bulk | Active | 4.7 mF | ±20% | 420 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.173" (106.00mm) | - | Chassis, Stud Mount | |
|
|
PEH200PK5150MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 15 mF | ±20% | 100 V | 17mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 100 Hz | 27.9 A @ 10 kHz | - | 1.122" (28.50mm) | 2.031" Dia (51.60mm) | 4.114" (104.50mm) | - | Chassis Mount | |
|
|
DCMX124U025BC2BCAP ALUM 120000UF 25V SCREW CHAS |
0 |
|
Datasheet |
DCMX | Bulk | Active | 120000 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
|
PEH200PK5150MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 15 mF | ±20% | 100 V | 17mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 100 Hz | 27.9 A @ 10 kHz | - | 1.122" (28.50mm) | 2.031" Dia (51.60mm) | 4.114" (104.50mm) | - | Chassis Mount | |
|

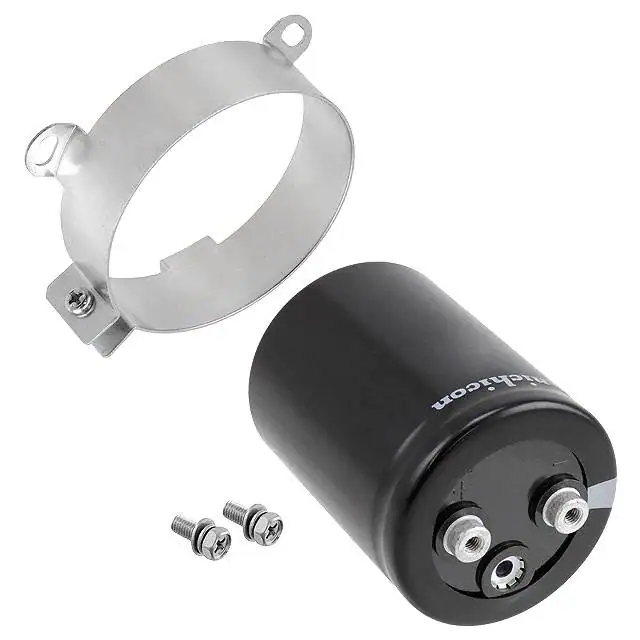

LNK2H122MSEGCAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 8.82 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
LNX2V392MSEGCAP ALUM 3900UF 20% 350V SCREW |
1 |
|
Datasheet |
LNX | Bulk | Active | 3900 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.5 A @ 120 Hz | 17.5 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
|
LNC2V562MSEGBBCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.1 A @ 120 Hz | 25.34 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
LNC2V562MSEGBNCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.1 A @ 120 Hz | 25.34 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
LNC2V562MTEGCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.1 A @ 120 Hz | 25.34 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
E36F401CGS562MEB7UCAP ALUM 5.6MF 20% 400V SCREW |
0 |
|
- |
U36F | Bulk | Active | 5.6 mF | ±20% | 400 V | 18mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 24 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.646" (118.00mm) | - | Chassis, Stud Mount | |
|
|
E37F451CDS472MEA5UCAP ALUM 4.7MF 20% 450V SCREW |
0 |
|
- |
U37F | Bulk | Active | 4.7 mF | ±20% | 450 V | 20mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 120 Hz | 21.1 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.173" (106.00mm) | - | Chassis, Stud Mount | |
|
|
ALS70G622NJ450CAP ALUM 6200UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 6200 µF | ±20% | 450 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 22.9 A @ 10 kHz | 25 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
ALS70H622NJ450CAP ALUM 6200UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 6200 µF | ±20% | 450 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 22.9 A @ 10 kHz | 25 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
ALS70P622NJ450CAP ALUM 6200UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 6200 µF | ±20% | 450 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 22.9 A @ 10 kHz | 25 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
ALS70U622NJ450CAP ALUM 6200UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 6200 µF | ±20% | 450 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 22.9 A @ 10 kHz | 25 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
ALS71A622NJ450CAP ALUM 6200UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 6200 µF | ±20% | 450 V | 36mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 22.9 A @ 10 kHz | 25 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount |
