Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E36F451HLS472MEE3UCAP ALUM 4.7MF 20% 450V SCREW |
0 |
|
- |
U36F | Bulk | Active | 4.7 mF | ±20% | 450 V | 28mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.9 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.669" (144.00mm) | - | Chassis, Stud Mount | |
|
CGS932U040V3CCAP ALUM 9300UF 40V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 9300 µF | -10%, +75% | 40 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.1 A @ 120 Hz | 10.53 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
E36L501CGN212ME79UCAP ALUM 2.1MF 20% 500V SCREW CH |
0 |
|
- |
U36L | Bulk | Active | 2.1 mF | ±20% | 500 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
|
ERWE3H1LGN482ME96UCAP ALUM SCRW TERM GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
CGS373U050R5LCAP ALUM 37000UF 50V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 37000 µF | -10%, +75% | 50 V | 12mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 15.34 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
E36D401CPN472TEE9UCAP ALUM 4.7MF 400V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 4.7 mF | -10%, +50% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
CGS653U025W4CCAP ALUM 65000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 65000 µF | -10%, +75% | 25 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | 21.45 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
E36L451CGN472MDE3UCAP ALUM 4.7MF 20% 450V SCREW CH |
0 |
|
- |
U36L | Bulk | Active | 4.7 mF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
ALS70C204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS70G204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS70H204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS70P204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS70U204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71C204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71G204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71H204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71P204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71U204NW063CAP ALUM 200000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 200000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.5 A @ 100 Hz | 34.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|

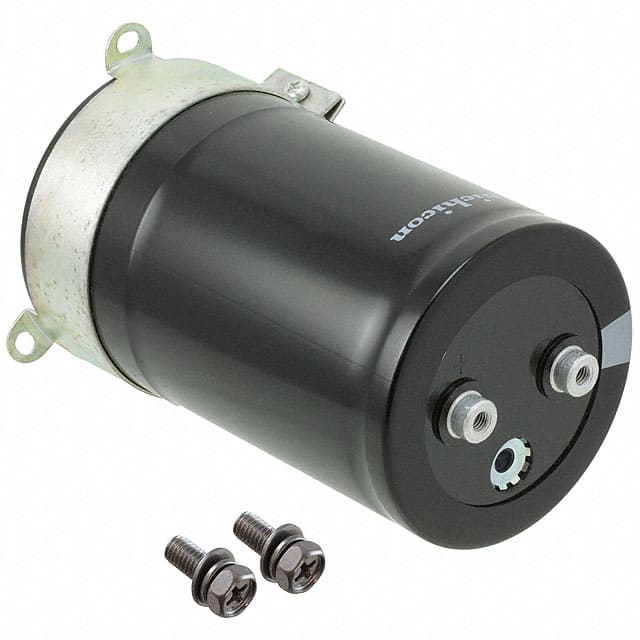

LNT2E472MSECAP ALUM 4700UF 20% 250V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 4700 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.9 A @ 120 Hz | 7.08 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
CGS194U7R5V3CCAP ALUM 190000UF 7.5V SCREW CHA |
0 |
|
Datasheet |
CGS | Bulk | Active | 190000 µF | -10%, +75% | 7.5 V | 13mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.5 A @ 120 Hz | 16.25 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount |
