Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70P103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS70U103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS71C103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS71G103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS71H103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS71P103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS71U103NP350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 10000 µF | ±20% | 350 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 26.2 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|

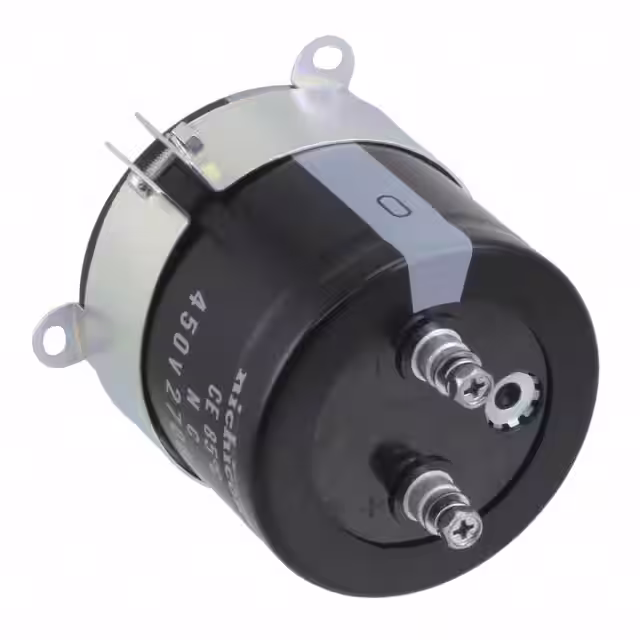

LNC2W272MSEHCAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | 19.18 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.071" (78.00mm) | - | Chassis Mount | |
|
ETOR351CTN332MEA5UCAP ALUM 3.3MF 20% 350V SCREW CH |
0 |
|
- |
UTOR | Bulk | Active | 3.3 mF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
7P122V360A062LCAP ALUM 360V POLAR |
0 |
|
- |
7P | Bulk | Active | 1.2 mF | -10%, +20% | 360 V | 166mOhm @ 120Hz | - | -20°C ~ 55°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
|
LNK2G392MSEGBBCAP ALUM 3900UF 20% 400V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 17.92 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
LNK2G392MSEGBNCAP ALUM 3900UF 20% 400V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 17.92 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
600D447G020DL4CAP ALUM 440UF 20V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 440 µF | - | 20 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 2.187" L (9.53mm x 55.56mm) | - | - | Through Hole | |
|
|
LNY2W332MSEHBBCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 3300 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | 17.64 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.465" (88.00mm) | - | Chassis Mount | |
|
|
LNY2W332MSEHBNCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 3300 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | 17.64 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.465" (88.00mm) | - | Chassis Mount | |
|
B41458B5150M000CAP ALUM 150000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Active | 150000 µF | ±20% | 25 V | 8mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 6.4 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
LNT1E224MSEBCAP ALUM 220000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 220000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNT1E224MSENCAP ALUM 220000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 220000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
ALS40A103QH200CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS40 | Box | Active | 10 mF | ±20% | 200 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | 16.6 A @ 10 kHz | 20 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
LNX2L122MSEGCAP ALUM 1200UF 20% 550V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 1200 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.449" (113.00mm) | - | Chassis Mount |
