Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT1H154MSEBCAP ALUM 150000UF 20% 50V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 29.25 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNT1H154MSENCAP ALUM 150000UF 20% 50V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 29.25 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
DCM763T040DF2ACAP ALUM 76000UF 40V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 76000 µF | -10%, +50% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
|
DCM763U040DF0ACAP ALUM 76000UF 40V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 76000 µF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
|
DCM763U040DF2ACAP ALUM 76000UF 40V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 76000 µF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
CG223U035W4CCAP ALUM 22000UF 35V SCREW CHAS |
0 |
|
Datasheet |
CG | Bulk | Active | 22000 µF | -10%, +75% | 35 V | 11mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 17.48 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
E36D251HPN183MEE3UCAP ALUM 18MF 20% 250V SCREW CHA |
0 |
|
- |
U36D | Bulk | Active | 18 mF | ±20% | 250 V | 11.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.43 A @ 120 Hz | 30.002 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|

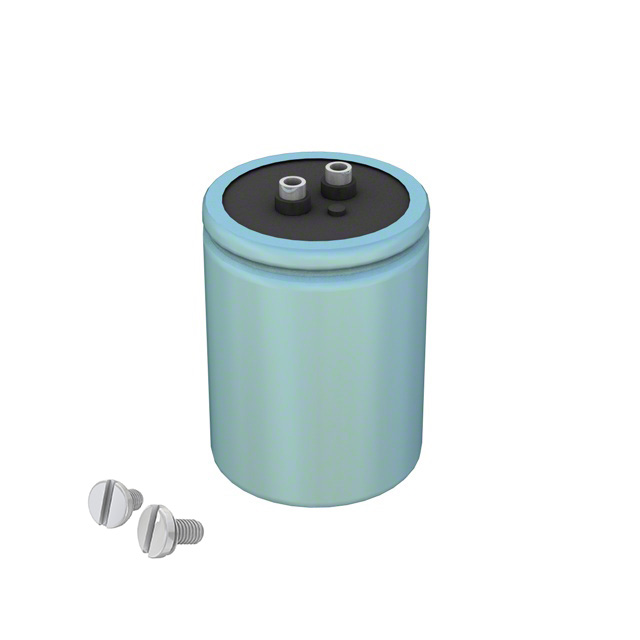

CGH521T500V2LCAP ALUM 520UF 500V SCREW CHAS M |
0 |
|
Datasheet |
CGH | Bulk | Active | 520 µF | -10%, +50% | 500 V | 470mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.091 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
ALS80A562NP450CAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 5600 µF | ±20% | 450 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 22.4 A @ 10 kHz | 22 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS81C562NP450CAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 5600 µF | ±20% | 450 V | 33mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 22.4 A @ 10 kHz | 22 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ERHB631LGC182ME95UCAP ALUM 1800UF 20% 630V SCREW |
0 |
|
Datasheet |
RHB | Bulk | Active | 1800 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.96 A @ 3 kHz | - | 1.240" (31.50mm) | 3.000" Dia (76.20mm) | 3.898" (99.00mm) | - | Chassis Mount | |
|
|
ALS80A163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80C163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80H163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81A163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81C163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81H163QM250CAP ALUM 16000UF 20% 250V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 16000 µF | ±20% | 250 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | 25.5 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
MAL212384102CAP ALUM 1000UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 10 V | 360mOhm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 200 mOhms | - | 0.508" Dia x 1.260" L (12.90mm x 32.00mm) | - | - | Through Hole | |
|
|
MAL212384102E3CAP ALUM 1000UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 10 V | 360mOhm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 200 mOhms | - | 0.508" Dia x 1.260" L (12.90mm x 32.00mm) | - | - | Through Hole | |
|
ALS70A432NJ550CAP ALUM 4300UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 4300 µF | ±20% | 550 V | 108mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 19.8 A @ 10 kHz | 95 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.606" (117.00mm) | - | Chassis Mount |
