Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80H752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS80P752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS80U752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81A752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81G752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81H752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81P752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81U752NW450CAP ALUM 7500UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 7500 µF | ±20% | 450 V | 26mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 24.2 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
CGS202T300U4CCAP ALUM 2000UF 300V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 2000 µF | -10%, +50% | 300 V | 53mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 8.25 A @ 10 kHz | - | - | 1.750" Dia (44.45mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
ERHB631LGC222MEB5UCAP ALUM 2200UF 20% 630V SCREW |
0 |
|
Datasheet |
RHB | Bulk | Active | 2200 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | 10.92 A @ 3 kHz | - | 1.240" (31.50mm) | 3.000" Dia (76.20mm) | 4.685" (119.00mm) | - | Chassis Mount | |
|

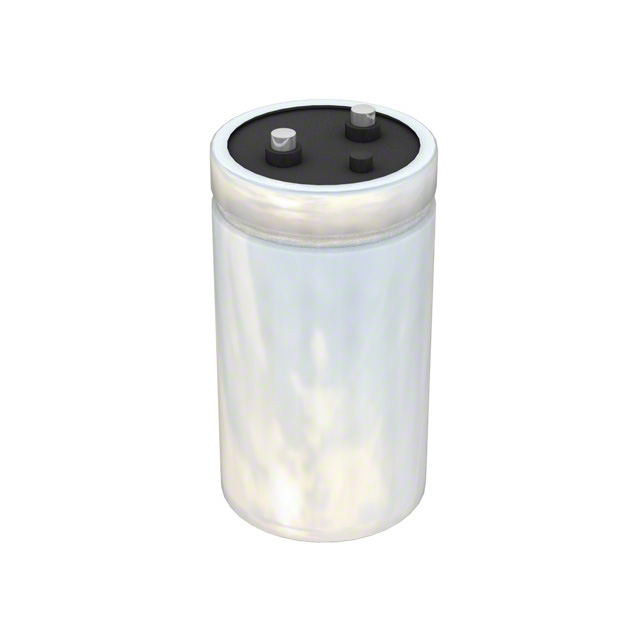

HES401G450V3LCAP ALUM 400UF 450V SCREW CHAS M |
0 |
|
Datasheet |
HES | Bulk | Active | 400 µF | 0%, +50% | 450 V | 203mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.567 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
ALS80A913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS80C913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS80H913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81A913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81C913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS81H913QW100CAP ALUM 91000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 91000 µF | ±20% | 100 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32.6 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
PEH169QU510VMU2CAP ALUM SCREW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 10 mF | ±20% | 160 V | 16mOhm @ 100Hz | 28000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | 41.7 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 4.685" (119.00mm) | - | Chassis Mount | |
|
|
ALS80C244NT063CAP ALUM 240000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 240000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 A @ 100 Hz | 30.2 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80G244NT063CAP ALUM 240000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 240000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 A @ 100 Hz | 30.2 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount |
