Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS71A564QW040CAP ALUM 560000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 560000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.5 A @ 100 Hz | 41.6 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71C564QW040CAP ALUM 560000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 560000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.5 A @ 100 Hz | 41.6 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71H564QW040CAP ALUM 560000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 560000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.5 A @ 100 Hz | 41.6 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
CGS124U025X4CCAP ALUM 120000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 120000 µF | -10%, +75% | 25 V | 10mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 120 Hz | 23.27 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
E36D301CPN103QEM9UCAP ALUM 10MF 300V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 10 mF | -10%, +30% | 300 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
DCMC254U063DG2DCAP ALUM 250000UF 63V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 250000 µF | -10%, +75% | 63 V | 5.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.6 A @ 120 Hz | 34.23 A @ 10 kHz | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
|
E36F351CSS123MEM9UCAP ALUM 12MF 20% 350V SCREW |
0 |
|
- |
U36F | Bulk | Active | 12 mF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis, Stud Mount | |
|
B43704B9478M000CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
- |
B43704 | Bulk | Active | 4700 µF | ±20% | 400 V | 24mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | - | 38 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|
MAL210149223E3CAP ALUM 22000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 100 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210189223E3CAP ALUM 22000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 100 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210422682E3CAP ALUM 6800UF 20% 200V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 6800 µF | ±20% | 200 V | 22mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | - | 14 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210423472E3CAP ALUM 4700UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | - | 17 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210462682E3CAP ALUM 6800UF 20% 200V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 6800 µF | ±20% | 200 V | 22mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | - | 14 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210463472E3CAP ALUM 4700UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | - | 17 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|

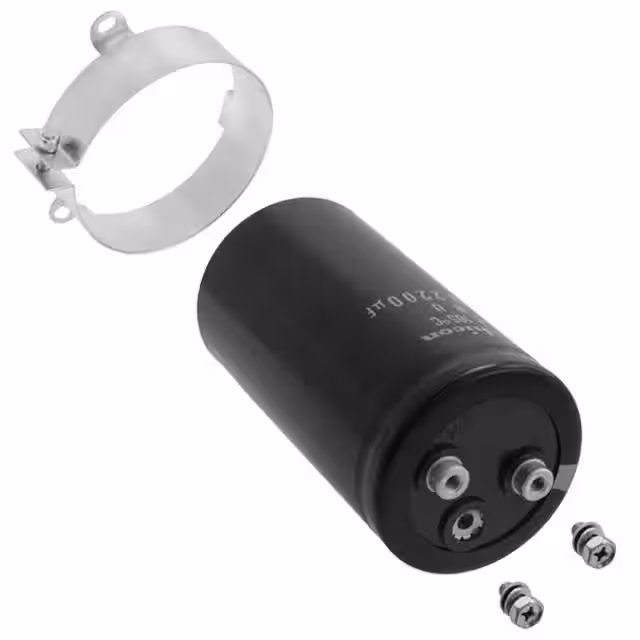

LNU2H222MSEGCAP ALUM 2200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.9 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
B43704A9398M000CAP ALUM 3900UF 20% 400V SCREW |
0 |
|
Datasheet |
B43704 | Bulk | Active | 3900 µF | ±20% | 400 V | 28mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | - | - | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
ALS70A514NS040CAP ALUM 510000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 510000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS70C514NS040CAP ALUM 510000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 510000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | 34.9 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ETOR5H1CTH302MEB7UCAP ALUM SCRW TERM HIGH RIPPLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ALS31A472QP450CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
