Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS30A682NT400CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
ALS30 | Box | Active | 6.8 mF | ±20% | 400 V | 22mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29 A @ 100 Hz | 40.7 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
PEH200KU6150MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 150 mF | ±20% | 40 V | 5mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.7 A @ 100 Hz | 51.2 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 4.685" (119.00mm) | - | Chassis Mount | |
|

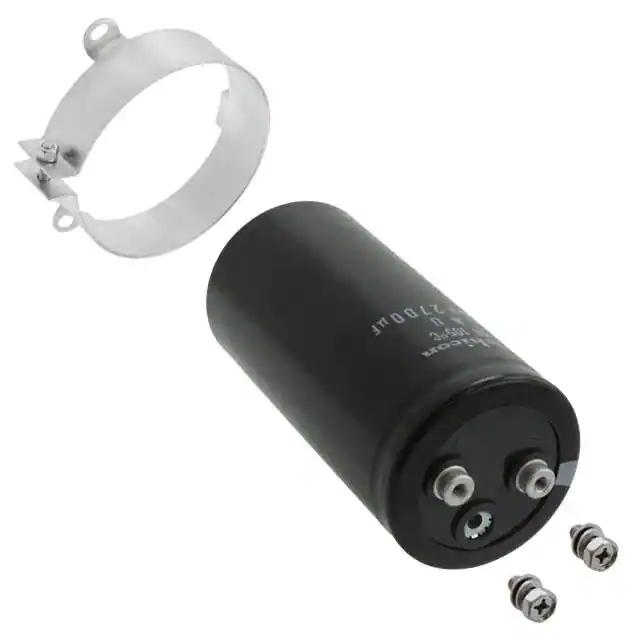

LNUN7222MSEGCAP ALUM 2200UF 20% 525V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 2200 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 12.88 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.433" (138.00mm) | - | Chassis Mount | |
|
|
ETOR501CTN392MEG8UCAP ALUM 3.9MF 20% 500V SCREW CH |
0 |
|
- |
UTOR | Bulk | Active | 3.9 mF | ±20% | 500 V | 36mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 31 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.693" (170.00mm) | - | Chassis Mount | |
|
|
LNX2W562MSEHBBCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 120 Hz | 21.56 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
LNX2W562MSEHBNCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 120 Hz | 21.56 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
DCMC684U035FN0DSCAP ALUM 680000UF 35V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 680000 µF | -10%, +75% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.500" Dia (88.90mm) | 7.687" (195.25mm) | - | Chassis Mount | |
|
|
LNX2W682MSEHBBCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 120 Hz | 24.22 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNX2W682MSEHBNCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 120 Hz | 24.22 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
E36L501CPS472MFD0UCAP ALUM 4.7MF 20% 500V SCREW |
0 |
|
- |
U36L | Bulk | Active | 4.7 mF | ±20% | 500 V | 34mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 120 Hz | 23.3 A @ 3 kHz | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 5.157" (131.00mm) | - | Chassis, Stud Mount | |
|
|
LNY2G822MSEJBBCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 8200 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 A @ 120 Hz | 29.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNY2G822MSEJBNCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 8200 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 A @ 120 Hz | 29.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNU2H272MSEHBBCAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
|
LNU2H272MSEHBNCAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
|
LNU2H272MTEHCAP ALUM 2700UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
ALS80C103NT450CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80H103NT450CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80P103NT450CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80U103NT450CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81A103NT450CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 10000 µF | ±20% | 450 V | 21mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount |
