Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS432T200X4CCAP ALUM 4300UF 200V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 4300 µF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
ALS70A134QT100CAP ALUM 130000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.2 A @ 100 Hz | 42.6 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70C134QT100CAP ALUM 130000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.2 A @ 100 Hz | 42.6 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71A134QT100CAP ALUM 130000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.2 A @ 100 Hz | 42.6 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71C134QT100CAP ALUM 130000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.2 A @ 100 Hz | 42.6 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71H134QT100CAP ALUM 130000UF 20% 100V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.2 A @ 100 Hz | 42.6 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
B43701A4828M000CAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
B43701 | Bulk | Active | 8200 µF | ±20% | 350 V | 18mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.8 A @ 100 Hz | 1.1 A @ 100 kHz | 30 mOhms | 1.248" (31.70mm) | 3.027" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
B41456B9479M003CAP ALUM 47000UF 20% 100V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Active | 47000 µF | ±20% | 100 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|

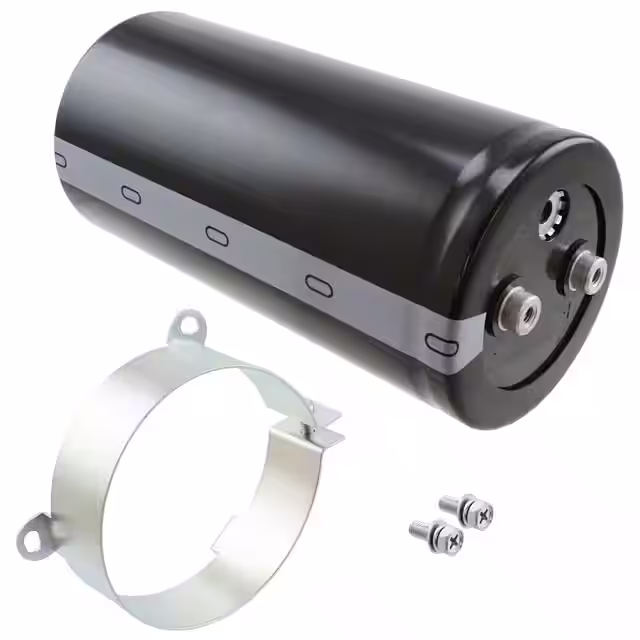

LNC2V123MSEHCAP ALUM 12000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.2 A @ 120 Hz | 39.48 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.220" (158.00mm) | - | Chassis Mount | |
|
E37F451CSN103MFE3UCAP ALUM 10MF 20% 450V SCREW CHA |
0 |
|
- |
U37F | Bulk | Active | 10 mF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
ALS70A364QT063CAP ALUM 360000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 360000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.3 A @ 100 Hz | 43.8 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70C364QT063CAP ALUM 360000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 360000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.3 A @ 100 Hz | 43.8 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70H364QT063CAP ALUM 360000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 360000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.3 A @ 100 Hz | 43.8 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71C364QT063CAP ALUM 360000UF 20% 63V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 360000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.3 A @ 100 Hz | 43.8 A @ 10 kHz | 7 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
CGS142T450V4LCAP ALUM 1400UF 450V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 1400 µF | -10%, +50% | 450 V | 69mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 8.25 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
|
B43743B4568M000CAP ALUM 5600UF 20% 350V SCREW |
0 |
|
- |
B43743 | Bulk | Active | 5600 µF | ±20% | 350 V | 17mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | - | 26 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|

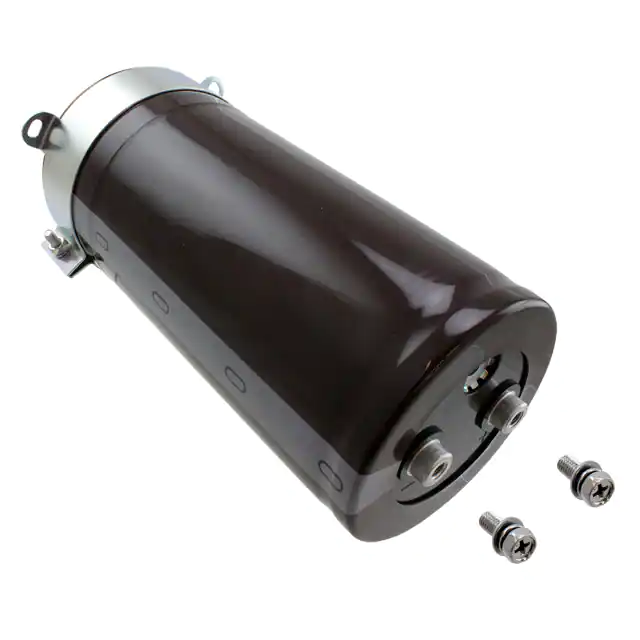

LQR2V103MSEHCAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 10000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.1 A @ 120 Hz | 43.54 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
B43705A9568M003CAP ALUM 5600UF 20% 400V SCREW |
0 |
|
Datasheet |
B43705 | Bulk | Active | 5600 µF | ±20% | 400 V | 13mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.5 A @ 100 Hz | - | 18 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|

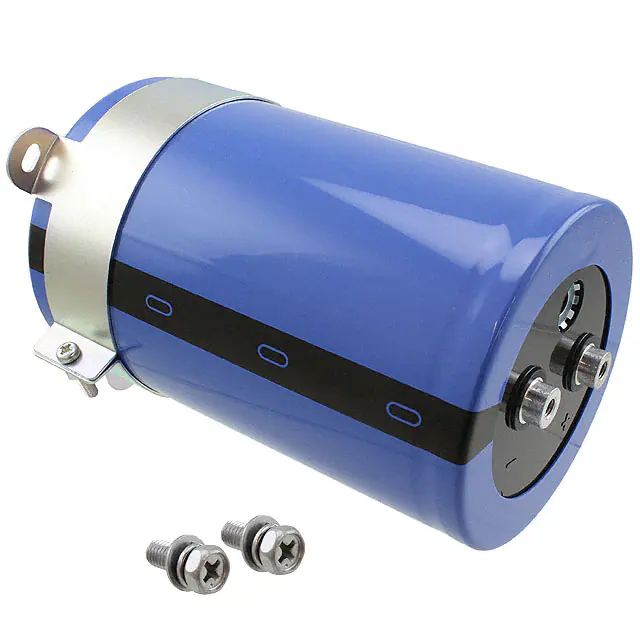

LNR2D223MSECAP ALUM 22000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 22000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | 19.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
E32D501CDS422MFE5UCAP ALUM 4.2MF 20% 500V SCREW |
0 |
|
- |
U32D | Bulk | Active | 4.2 mF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 5.748" (146.00mm) | - | Chassis, Stud Mount |
