Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS263U075X5RCAP ALUM 26000UF 75V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 26000 µF | -10%, +75% | 75 V | 37mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 13.78 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.875" (149.23mm) | - | Chassis Mount | |
|
ALS31A334NT040CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 330 mF | ±20% | 40 V | 4mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 A @ 100 Hz | 46.5 A @ 10 kHz | 4 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
.JPG)
|

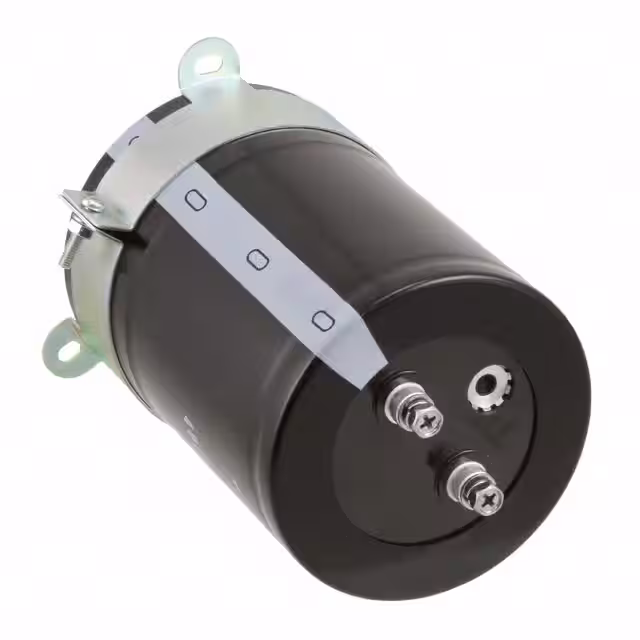

LNX2J222MSEJCAP ALUM 2200UF 20% 630V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Obsolete | 2200 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|

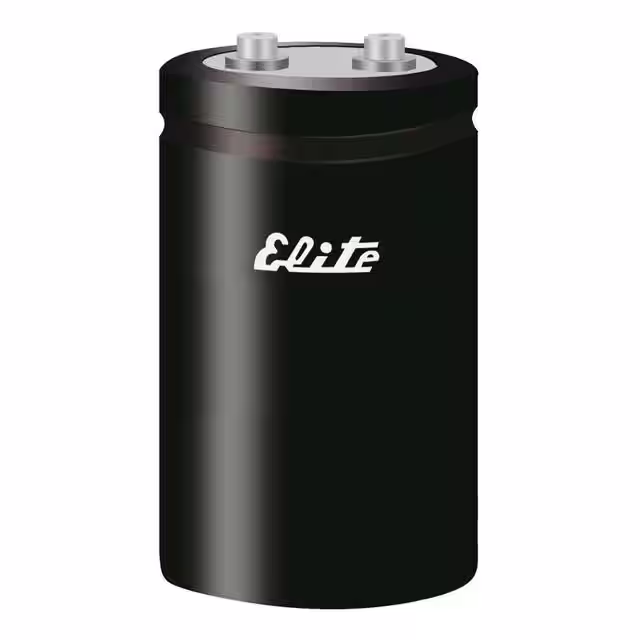

SC2W682MLS76E3CAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Datasheet |
SC | Active | 6800 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 100 kHz | - | 1.240" (31.50mm) | 2.992" Dia (76.00mm) | 5.748" (146.00mm) | - | Chassis Mount | ||
|
|
604D272F010HJ7CAP ALUM 2700UF 10V AXIAL TH |
0 |
|
Datasheet |
604D | Bulk | Active | 2700 µF | -10%, +50% | 10 V | 127mOhm @ 100kHz | - | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.7 A @ 100 kHz | 94 mOhms | - | 0.875" Dia x 1.125" L (22.22mm x 28.58mm) | - | - | Through Hole | |
|
|
LNK2W562MSEJBBCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.6 A @ 120 Hz | 26.04 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNK2W562MSEJBNCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.6 A @ 120 Hz | 26.04 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
B43742A6278M000CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
- |
B43742 | Bulk | Active | 2700 µF | ±20% | 500 V | 30mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.84 A @ 100 Hz | - | 45 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
LQR2W562MSEJBBCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 120 Hz | 26.74 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
LQR2W562MSEJBNCAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 120 Hz | 26.74 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
ALS70A473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70C473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70H473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71A473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71C473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71H473QT200CAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 47000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 100 Hz | 37.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
MAL210119333E3CAP ALUM 33000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 33000 µF | ±20% | 100 V | 8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210159333E3CAP ALUM 33000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 33000 µF | ±20% | 100 V | 8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
LNC2G822MSEJBBCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 120 Hz | 41.3 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
|
LNC2G822MSEJBNCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 120 Hz | 41.3 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.252" (108.00mm) | - | Chassis Mount |
