Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT1V474MSENCAP ALUM 470000UF 20% 35V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 470000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.4 A @ 120 Hz | 38.1 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
B43705A4109M000CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43705 | Bulk | Active | 10000 µF | ±20% | 350 V | 7.5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.1 A @ 100 Hz | - | 11 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
ERHB701LGC222MFB5UCAP ALUM 2200UF 20% 700V SCREW |
0 |
|
Datasheet |
RHB | Bulk | Active | 2200 µF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 9.94 A @ 3 kHz | - | 1.240" (31.50mm) | 3.504" Dia (89.00mm) | 4.685" (119.00mm) | - | Chassis Mount | |
|

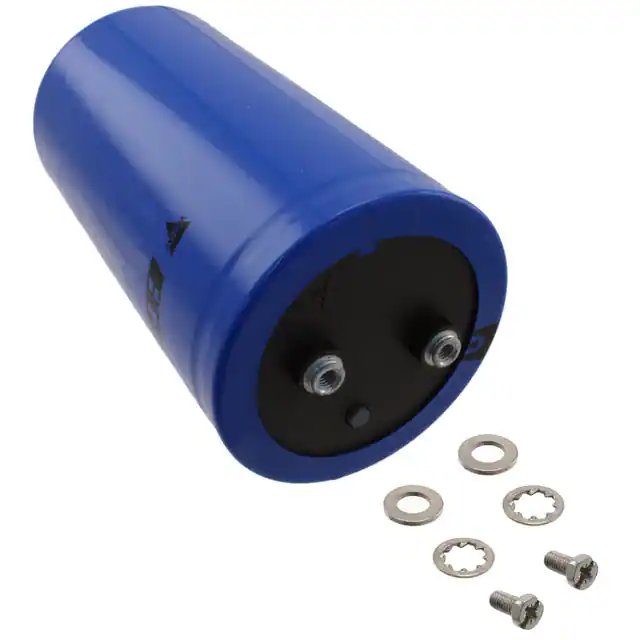

MAL210216472E3CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 400 V | 31mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 22.5 A @ 10 kHz | 21 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.205" (106.80mm) | - | Chassis Mount | |
|
MAL210256472E3CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 400 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 21 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
ALS71C183QS400CAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 18000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.8 A @ 100 Hz | 37 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
CGS312T350V5LCAP ALUM 3100UF 350V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 3100 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
ALS70C183QS400CAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 18000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.8 A @ 100 Hz | 37 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
LNC2V183MSEJBBCAP ALUM 18000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 18000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.2 A @ 120 Hz | 54.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.614" (168.00mm) | - | Chassis Mount | |
|
|
LNC2V183MSEJBNCAP ALUM 18000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 18000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.2 A @ 120 Hz | 54.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.614" (168.00mm) | - | Chassis Mount | |
|
|
LNC2V183MTEJCAP ALUM 18000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 18000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.2 A @ 120 Hz | 54.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.614" (168.00mm) | - | Chassis Mount | |
|
|
ALS70A203QT400CAP ALUM 20000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 20000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.1 A @ 100 Hz | 37.9 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70C203QT400CAP ALUM 20000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 20000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.1 A @ 100 Hz | 37.9 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70H203QT400CAP ALUM 20000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 20000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.1 A @ 100 Hz | 37.9 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71A203QT400CAP ALUM 20000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 20000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.1 A @ 100 Hz | 37.9 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
ALS80A163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80C163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80H163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81A163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81C163QT400CAP ALUM 16000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 16000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 100 Hz | 32.4 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount |
