Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLSG932M020JH0CCAP ALUM 9300UF 20% 20V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 9300 µF | ±20% | 20 V | 54mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG672M030JH0CCAP ALUM 6700UF 20% 30V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 6700 µF | ±20% | 30 V | 55mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG462M040JH0CCAP ALUM 4600UF 20% 40V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 4600 µF | ±20% | 40 V | 56mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG342M050JH0CCAP ALUM 3400UF 20% 50V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 3400 µF | ±20% | 50 V | 56mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG212M060JH0CCAP ALUM 2100UF 20% 60V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 2100 µF | ±20% | 60 V | 57mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.1 A @ 120 Hz | 12.4 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG152M075JH0CCAP ALUM 1500UF 20% 75V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 1500 µF | ±20% | 75 V | 148mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 6.5 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG801M100JH0CCAP ALUM 800UF 20% 100V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 800 µF | ±20% | 100 V | 484mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG401M150JH0CCAP ALUM 400UF 20% 150V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 400 µF | ±20% | 150 V | 484mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG381M200JH0CCAP ALUM 380UF 20% 200V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 380 µF | ±20% | 200 V | 634mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSG301M250JH0CCAP ALUM 300UF 20% 250V FLTPCK |
0 |
|
Datasheet |
Slimpack™- MLSG | Bulk | Active | 300 µF | ±20% | 250 V | 605mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.2 A @ 20 kHz | - | 0.500" (12.70mm) | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.500" (12.70mm) | - | Through Hole | |
|
B43733A4159M000CAP ALUM 15000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43733 | Bulk | Active | 15000 µF | ±20% | 350 V | 8.6mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 7.795" (198.00mm) | - | Chassis Mount | |
|
CGS903U075X5CCAP ALUM 90000UF 75V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 90000 µF | -10%, +75% | 75 V | 8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 27.69 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|

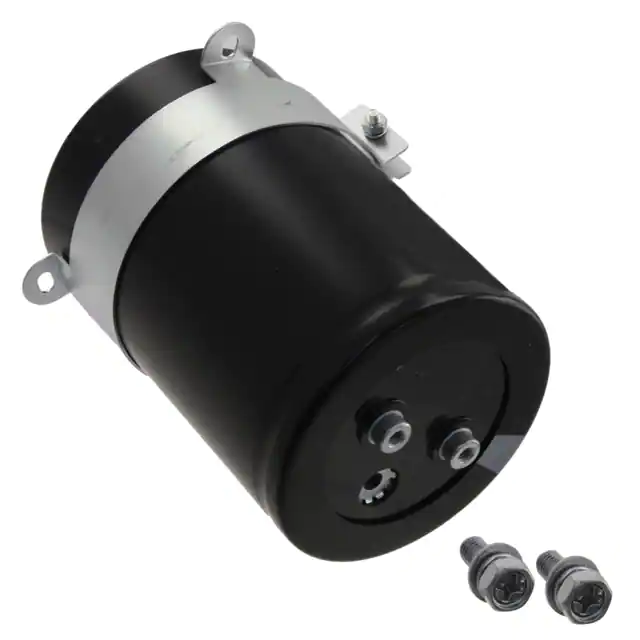

LNK2H822MSEJCAP ALUM 8200UF 20% 500V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 120 Hz | 34.3 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|
|
581R132H03CAP ALUM |
1 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B43724B6688M000CAP ALUM 6800UF 20% 500V SCREW |
0 |
|
Datasheet |
B43724 | Bulk | Active | 6800 µF | ±20% | 500 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
CGS332T450X8LCAP ALUM 3300UF 450V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 3300 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
CGS123T250X5CCAP ALUM 12000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 12000 µF | -10%, +50% | 250 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 21.9 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
B43704B6688M000CAP ALUM 6800UF 20% 500V SCREW |
0 |
|
Datasheet |
B43704 | Bulk | Active | 6800 µF | ±20% | 500 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | 2.56 A @ 100 kHz | 22 mOhms | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
B43762A6688M008CAP ALUM 6800UF 20% 500V SCREW |
0 |
|
- |
B43762 | Bulk | Active | 6800 µF | ±20% | 500 V | 12mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.7 A @ 100 Hz | - | 18 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 8.728" (221.70mm) | - | Chassis Mount | |
|
CGH103T250X4LCAP ALUM 10000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 10000 µF | -10%, +50% | 250 V | 20.4mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 15.99 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount |
