Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

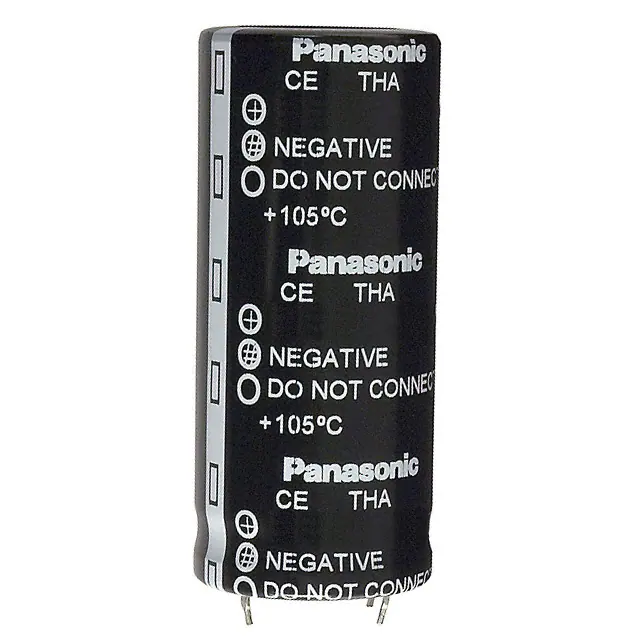

ECE-T2WA821EACAP ALUM 820UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-HA | Bulk | Obsolete | 820 µF | ±20% | 450 V | 202mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|

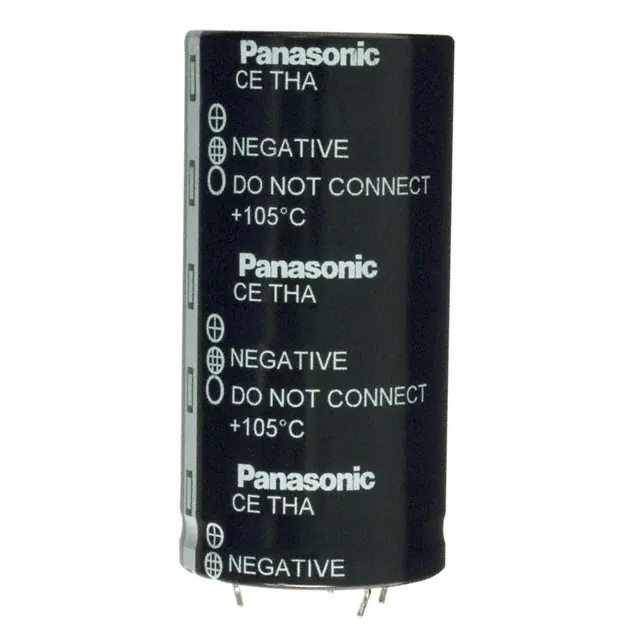

ECE-T2WA102FACAP ALUM 1000UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-HA | Bulk | Obsolete | 1000 µF | ±20% | 450 V | 166mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
EEV-HA2A4R7PCAP ALUM 4.7UF 20% 100V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEV-HA2A3R3PCAP ALUM 3.3UF 20% 100V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

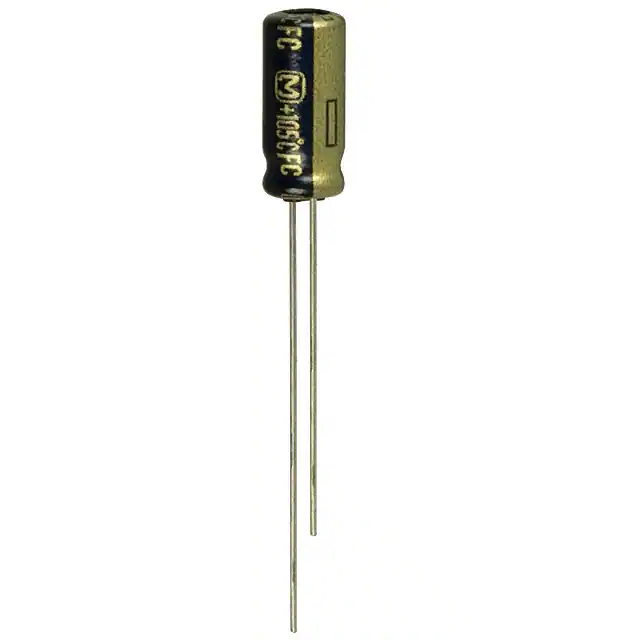

EEU-FC2A1R0CAP ALUM 1UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 1 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 9.8 mA @ 120 Hz | - | 7.5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
EEV-HA2A4R7UPCAP ALUM 4.7UF 20% 100V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

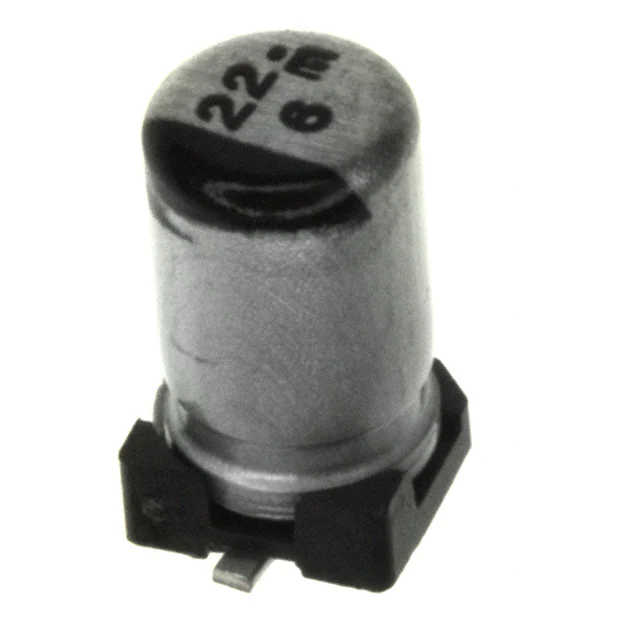

ECE-V0JS220WRCAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V2AA100UPCAP ALUM 10UF 20% 100V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

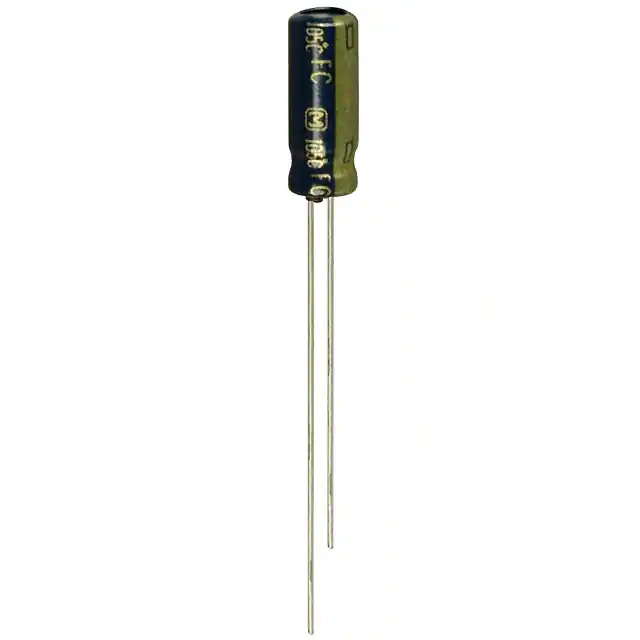

EEU-FC1C390CAP ALUM 39UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 39 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 120 mA @ 100 kHz | 1.3 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
EEU-FC0J680CAP ALUM 68UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 120 mA @ 100 kHz | 1.3 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
EEU-FC0J331CAP ALUM 330UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.591" (15.00mm) | - | Through Hole | |
|
|
EEU-FC1A470CAP ALUM 47UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 120 mA @ 100 kHz | 1.3 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
EEU-FC1A221CAP ALUM 220UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.591" (15.00mm) | - | Through Hole | |
|
|
EEU-FC1E270CAP ALUM 27UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 27 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 120 mA @ 100 kHz | 1.3 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
EEU-FC1H100CAP ALUM 10UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | 2.5 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|

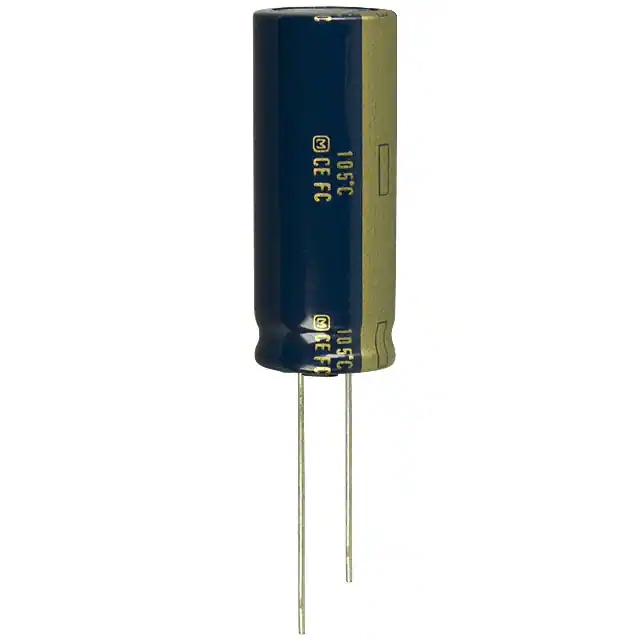

EEU-FC1H182LCAP ALUM 1800UF 20% 50V RADIAL |
0 |
|
- |
FC | Bulk | Obsolete | 1800 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.276 A @ 120 Hz | 2.845 A @ 100 kHz | 23 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EEU-FC1J6R8CAP ALUM 6.8UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Obsolete | 6.8 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 80 mA @ 100 kHz | 3.5 Ohms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|

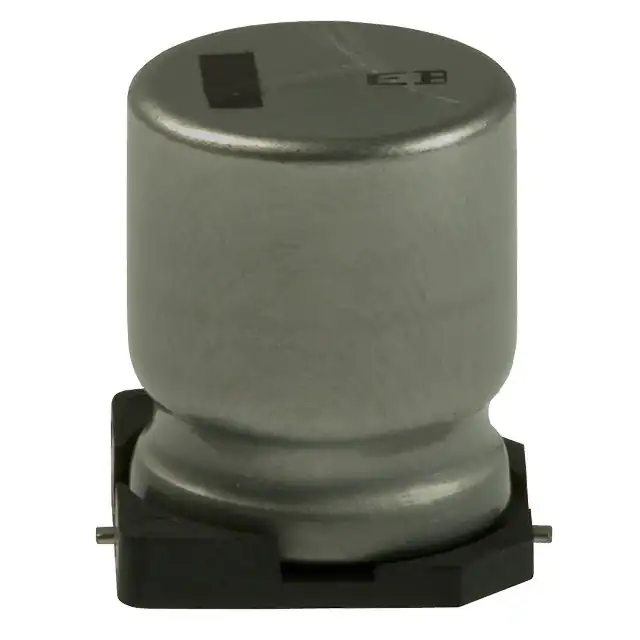

EEV-EB2C330SQCAP ALUM 33UF 20% 160V SMD |
0 |
|
Datasheet |
EB | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 258.5 mA @ 120 Hz | 470 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EET-UQ2D122DACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2WP101BACAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole |
