Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW2F101MHDCAP ALUM 100UF 20% 315V RADIAL |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 100 µF | ±20% | 315 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
UPW2V010MPDCAP ALUM 1UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 1 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPW2V4R7MPDCAP ALUM 4.7UF 20% 350V RADIAL |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 4.7 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 78.4 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UPW2V470MHDCAP ALUM 47UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 47 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 320 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UPW2G220MHDCAP ALUM 22UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 22 µF | ±20% | 400 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 176 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
UPW2W2R2MPDCAP ALUM 2.2UF 20% 450V RADIAL |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 2.2 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 46.4 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
UPW2W330MHDCAP ALUM 33UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 33 µF | ±20% | 450 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 232 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UPW2W330MRD6CAP ALUM 33UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 33 µF | ±20% | 450 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 232 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.220" (31.00mm) | - | Through Hole | |
|

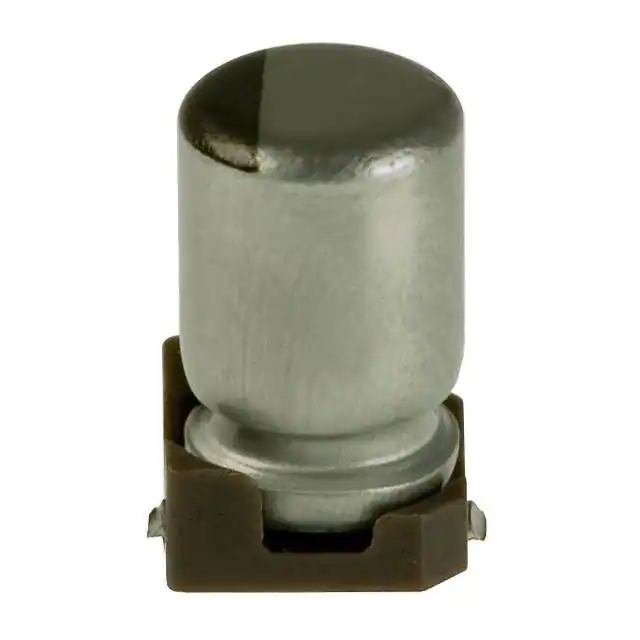

UWX0G220MCL2GBCAP ALUM 22UF 20% 4V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 28.5 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1C100MCL2GBCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1V2R2MCL2GBCAP ALUM 2.2UF 20% 35V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 mA @ 120 Hz | 12.6 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1V3R3MCL2GBCAP ALUM 3.3UF 20% 35V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 15 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1H0R1MCL2GBCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.5 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|

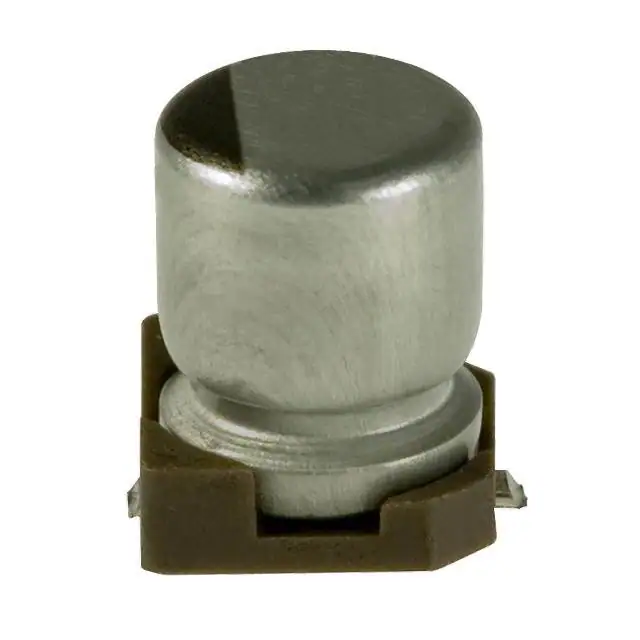

UWX1H0R1MCL1GBCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWX1HR22MCL2GBCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 3 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1HR22MCL1GBCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 3 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWX1HR33MCL2GBCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 4.2 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1HR33MCL1GBCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 4.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWX1HR47MCL2GBCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 6 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
UWX1H010MCL2GBCAP ALUM 1UF 20% 50V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | 12 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount |
