Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVR2W3R3MPACAP ALUM 3.3UF 20% 450V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 3.3 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 72 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

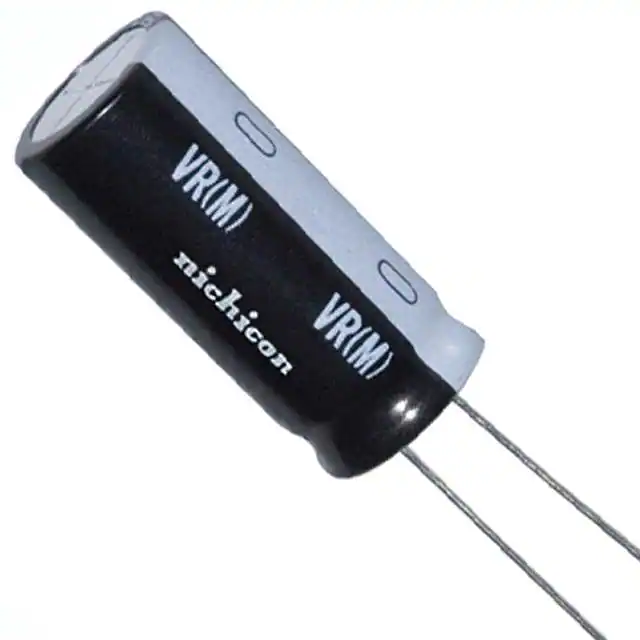

UVR2W470MHACAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
UVR2W4R7MPACAP ALUM 4.7UF 20% 450V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UVZ0J101MDHCAP ALUM 100UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 142.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVZ0J102MPHCAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 448.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVZ0J103MHHCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 10000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.8975 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UVZ0J153MHHCAP ALUM 15000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 15000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.3115 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
UVZ0J220MDHCAP ALUM 22UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ0J221MDHCAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 217.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ0J222MPHCAP ALUM 2200UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 2200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UVZ0J223MHHCAP ALUM 22000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
UVZ0J330MDHCAP ALUM 33UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 33 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVZ0J331MEHCAP ALUM 330UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 292.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ0J332MPHCAP ALUM 3300UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 966 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UVZ0J333MRHCAP ALUM 33000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 33000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
UVZ0J470MDHCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 130 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ0J471MEHCAP ALUM 470UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ0J472MHHCAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.2535 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UVZ0J682MHHCAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UVZ1A101MDHCAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 157.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
