Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMG100ELL682ML25SCAP ALUM 6800UF 20% 10V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 6800 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.6956 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|

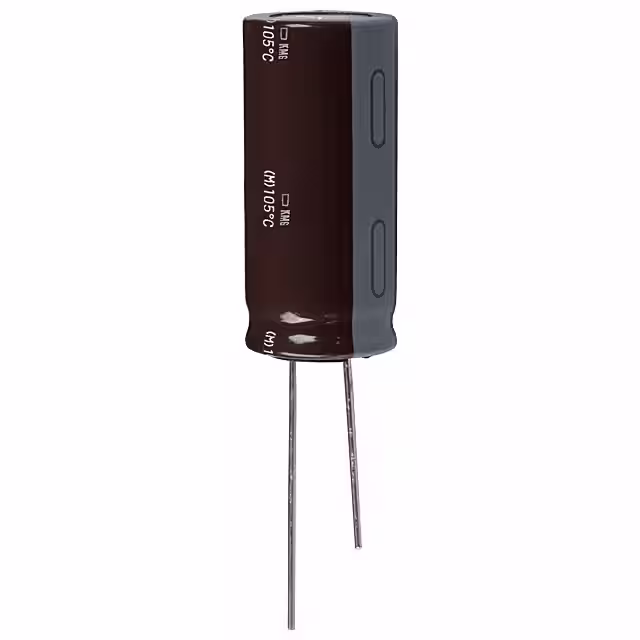

EKMG100ELL103MLP1SCAP ALUM 10000UF 20% 10V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 10000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.0412 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMG250ELL331MHB5DCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 465 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKMG500ELLR10ME11DCAP ALUM 0.1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.3 mA @ 120 Hz | 3.25 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG500ELLR22ME11DCAP ALUM 0.22UF 20% 50V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.9 mA @ 120 Hz | 7.25 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG500ELLR33ME11DCAP ALUM 0.33UF 20% 50V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 4.3 mA @ 120 Hz | 10.75 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG500ELLR47ME11DCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 6.2 mA @ 120 Hz | 15.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG101ELLR10ME11DCAP ALUM 0.1UF 20% 100V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 0.1 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.5 mA @ 120 Hz | 3.75 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG101ELL2R2ME11DCAP ALUM 2.2UF 20% 100V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 2.2 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 52.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG101ELL220MHB5DCAP ALUM 22UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 167.4 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
EKMG101ELL330MHB5DCAP ALUM 33UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 33 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 234 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKMG161ELL4R7MF11DCAP ALUM 4.7UF 20% 160V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 4.7 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | 85 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EKMG161ELL100MJC5SCAP ALUM 10UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 67 mA @ 120 Hz | 120.6 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EKMG161ELL330MJ20SCAP ALUM 33UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 33 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 261 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKMG161ELL101ML25SCAP ALUM 100UF 20% 160V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 502.5 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKMG161ELL331MMP1SCAP ALUM 330UF 20% 160V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 330 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 705 mA @ 120 Hz | 1.0575 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EKMG201ELL3R3MF11DCAP ALUM 3.3UF 20% 200V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 3.3 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMG201ELL4R7MHB5DCAP ALUM 4.7UF 20% 200V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 4.7 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 97.5 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKMG201ELL100MJ16SCAP ALUM 10UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 74 mA @ 120 Hz | 133.2 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
EKMG201ELL220MJ20SCAP ALUM 22UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 22 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 216 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
