Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2S561EACAP ALUM 560UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 3.836 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S681EACAP ALUM 680UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 420 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 4.354 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

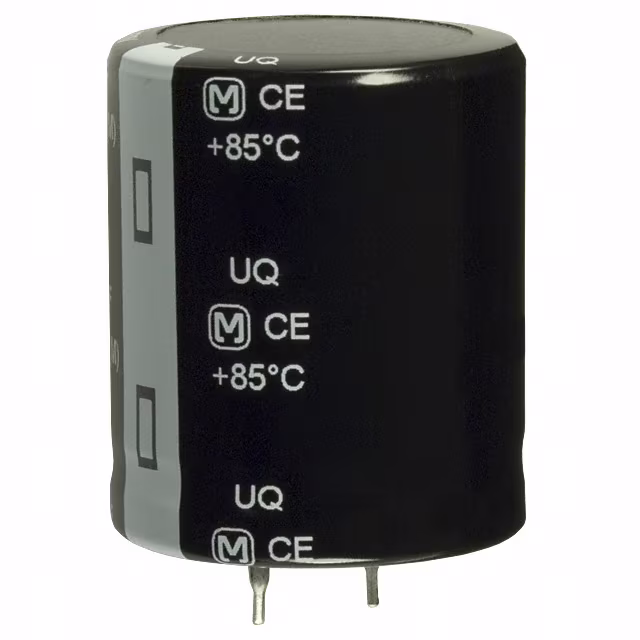

EET-UQ2W331DFCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2W681EACAP ALUM 680UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 450 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.02 A @ 120 Hz | 4.228 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EEE-HB1HR10RCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 mA @ 120 Hz | 1.7 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEE-HB1HR22RCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 3.4 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEE-HB1HR33RCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | 5.1 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEE-HB1HR47RCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 5 mA @ 120 Hz | 8.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECO-S2CB102DACAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1000 µF | ±20% | 160 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.508 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
TPC1C221MADCAP ALUM 220UF 20% 16V AXIAL TH |
0 |
|
- |
PC | Bulk | Obsolete | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.787" L (8.00mm x 20.00mm) | - | - | Through Hole | |
|
TVX1J220MAD1LSCAP ALUM 22UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
TVX | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | - | 0.248" Dia x 0.472" L (6.30mm x 12.00mm) | - | - | Through Hole | |
|
UKL1H010KDD1TACAP ALUM 1UF 10% 50V RADIAL TH |
0 |
|
Datasheet |
UKL | Bulk | Obsolete | 1 µF | ±10% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.7 mA @ 120 Hz | 21.4 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
EEU-EB1HR47SCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 mA @ 120 Hz | 6.6 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1H1R0SCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 mA @ 120 Hz | 13.2 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1J1R0SCAP ALUM 1UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 1 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9 mA @ 120 Hz | 14.85 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1J2R2SCAP ALUM 2.2UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 2.2 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.5 mA @ 120 Hz | 27.22 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1JR47SCAP ALUM 0.47UF 20% 63V RADIAL |
0 |
|
Datasheet |
EB-A | Bulk | Obsolete | 0.47 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 mA @ 120 Hz | 7.425 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
500C312T450CF2BCAP ALUM 3100UF 450V SCREW CHAS |
0 |
|
Datasheet |
500C | Bulk | Active | 3100 µF | -10%, +50% | 450 V | 48mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
RFS-25V100ME3#5CAP ALUM 10UF 20% 25V RADIAL TH |
0 |
|
- |
RFS, SILMIC II | Bulk | Obsolete | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 35 mA @ 120 Hz | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
RFS-25V220MF3#5CAP ALUM 22UF 20% 25V RADIAL TH |
0 |
|
- |
RFS, SILMIC II | Bulk | Obsolete | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 70 mA @ 120 Hz | - | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
