Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

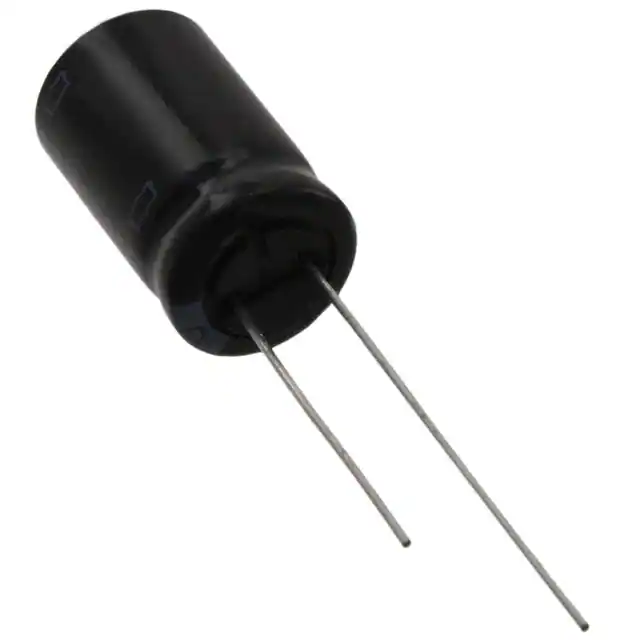

SMG450VB10RM12X20LLCAP ALUM 10UF 20% 450V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 10 µF | ±20% | 450 V | 39.78Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 163.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SMG450VB22RM16X25LLCAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 22 µF | ±20% | 450 V | 18.082Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 297 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

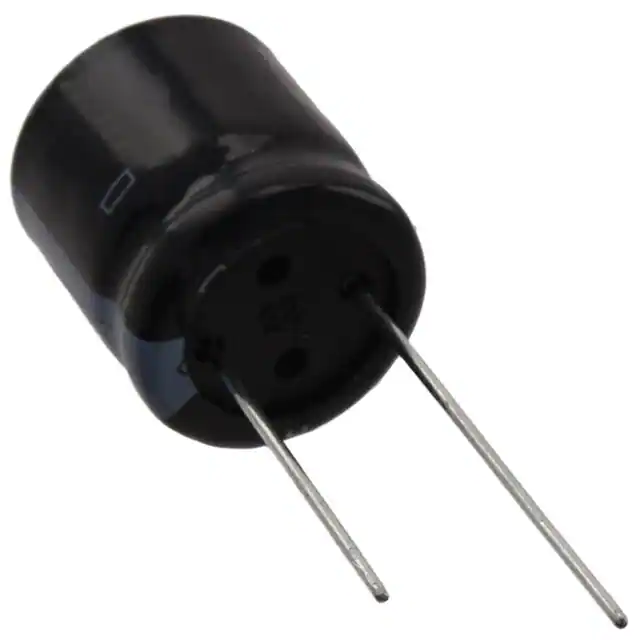

SMG450VB22RM20SLLCAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 257.4 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SMG450VB33RM16X31LLCAP ALUM 33UF 20% 450V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 33 µF | ±20% | 450 V | 12.055Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 387 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
SMG450VB47RM16X25LLCAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
- |
SMG | Bulk | Obsolete | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 477 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SMG450VB101M22DLLCAP ALUM 100UF 20% 450V RADIAL |
0 |
|
- |
SMG | Bulk | Obsolete | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 672.1 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
KMG6.3VB47RM5X11LLCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
- |
KMG | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 64 mA @ 120 Hz | 96 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
KMG6.3VB101M5X11LLCAP ALUM 100UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
KMG6.3VB221M5X11LLCAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | 2.562Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
KMG6.3VB331M6X11LLCAP ALUM 330UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | 1.708Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
KMG6.3VB471M6X11LLCAP ALUM 470UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 470 µF | ±20% | 6.3 V | 1.199Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
KMG6.3VB102M8X11LLCAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 1000 µF | ±20% | 6.3 V | 564mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 570 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
KMG6.3VB222M10X20LLCAP ALUM 2200UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 2200 µF | ±20% | 6.3 V | 271mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 766.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
KMG6.3VB332M10X20LLCAP ALUM 3300UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 3300 µF | ±20% | 6.3 V | 191mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 907.2 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
KMG6.3VB472M12X20LLCAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 4700 µF | ±20% | 6.3 V | 141mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.1772 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.787" (20.00mm) | - | Through Hole | |
|
KMG6.3VB682M12X25LLCAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 6800 µF | ±20% | 6.3 V | 107mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.458 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
KMG6.3VB103M16X25LLCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 10000 µF | ±20% | 6.3 V | 86mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.782 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
KMG6.3VB223M18X40LLCAP ALUM 22000UF 20% 6.3V RADIAL |
0 |
|
- |
KMG | Bulk | Obsolete | 22000 µF | ±20% | 6.3 V | 57mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.538 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
KMG10VB22RM5X11LLCAP ALUM 22UF 20% 10V RADIAL TH |
0 |
|
- |
KMG | Bulk | Obsolete | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
KMG10VB33RM5X11LLCAP ALUM 33UF 20% 10V RADIAL TH |
0 |
|
- |
KMG | Bulk | Obsolete | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole |
