Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

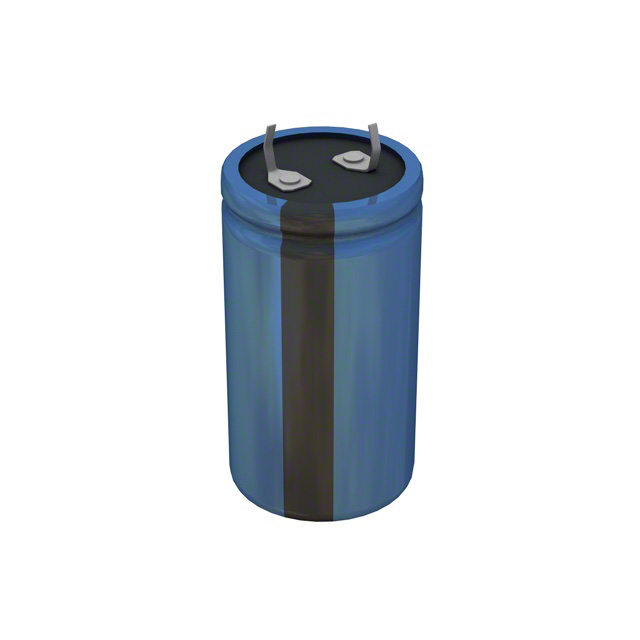

LPW153M1EO45V-WCAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 25 V | 50mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.78 A @ 120 Hz | 4.158 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

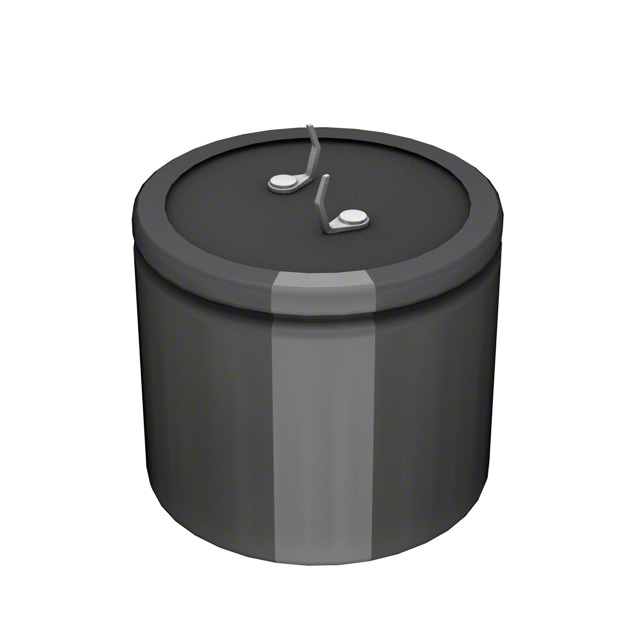

LPW153M1EQ30V-WCAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 25 V | 50mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.89 A @ 120 Hz | 4.279 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

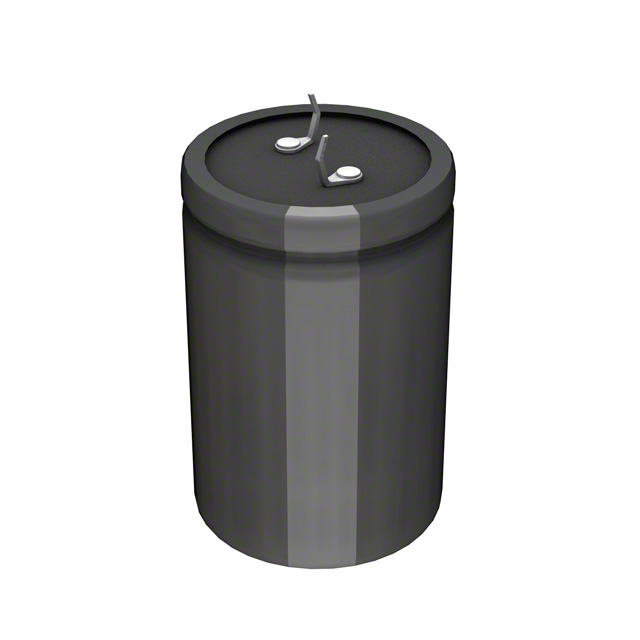

LPW153M1VP45V-WCAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 35 V | 39mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.08 A @ 120 Hz | 4.488 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

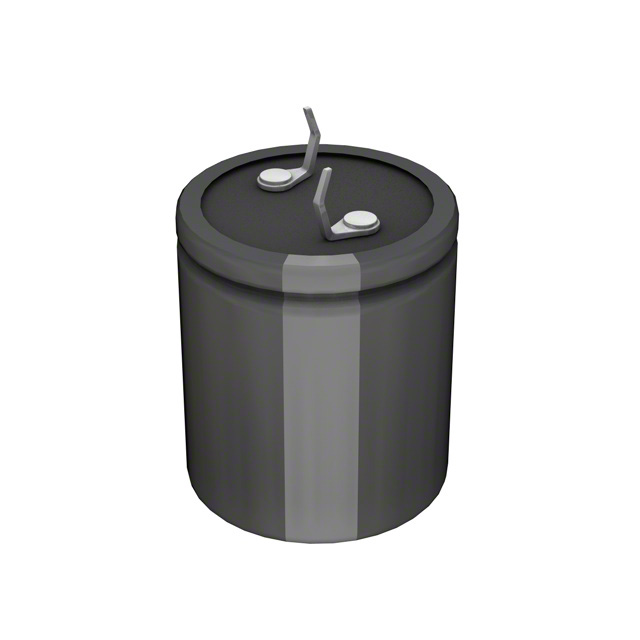

LPW222M1HN25V-WCAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 2200 µF | ±20% | 50 V | 226mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.304 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

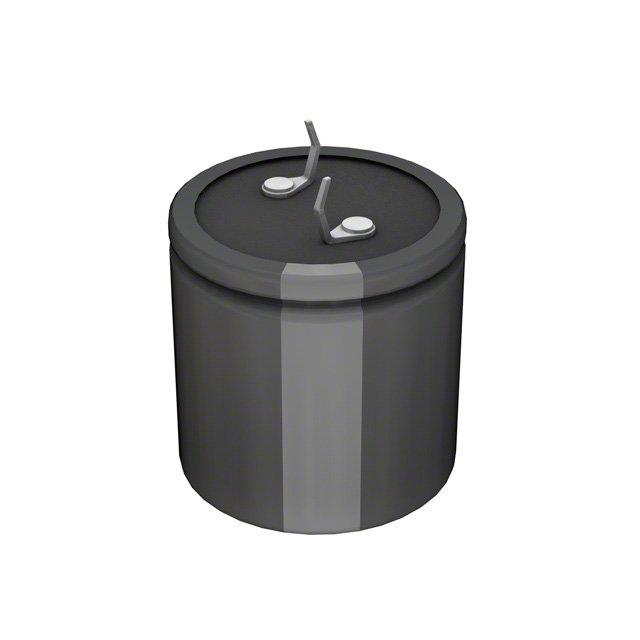

LPW222M1HO25V-WCAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 2200 µF | ±20% | 50 V | 226mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.376 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

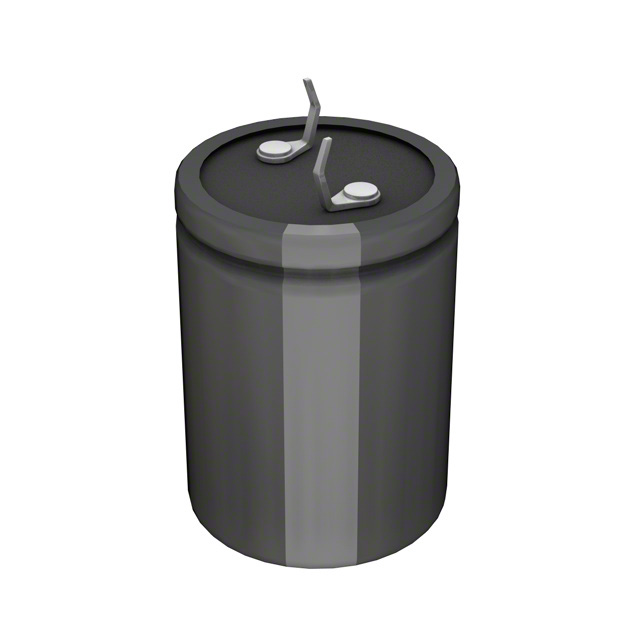

LPW222M1JN30V-WCAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 2200 µF | ±20% | 63 V | 226mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.496 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW222M2AO45V-WCAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 188mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 3.324 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
LPW222M2AQ30V-WCAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 188mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.07 A @ 120 Hz | 3.684 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW223M1AN45V-WCAP ALUM 22000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 22000 µF | ±20% | 10 V | 45mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.79 A @ 120 Hz | 4.169 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

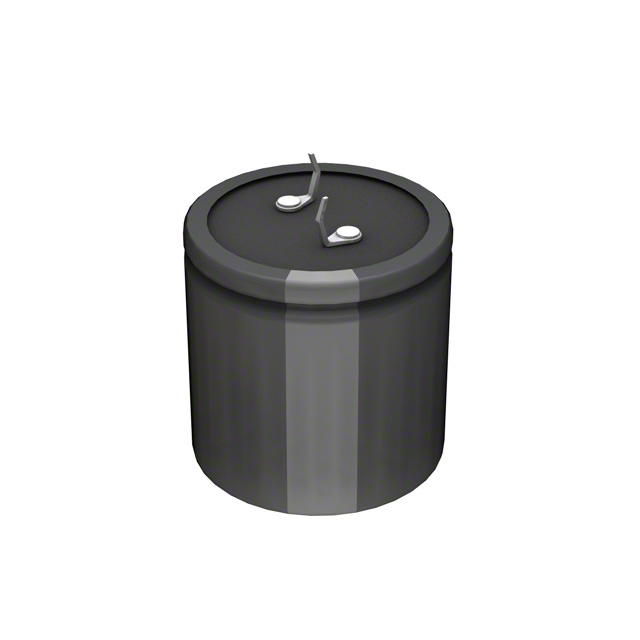

LPW223M1AP30V-WCAP ALUM 22000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 22000 µF | ±20% | 10 V | 45mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW223M1CO45V-WCAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 22000 µF | ±20% | 16 V | 38mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.25 A @ 120 Hz | 4.675 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
LPW223M1CQ30V-WCAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 22000 µF | ±20% | 16 V | 38mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.37 A @ 120 Hz | 4.807 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW223M1EP50V-WCAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 22000 µF | ±20% | 25 V | 34mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.94 A @ 120 Hz | 5.434 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
LPW332M1EN25V-WCAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 176mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.233 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW332M1EO25V-WCAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 176mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.09 A @ 120 Hz | 2.299 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

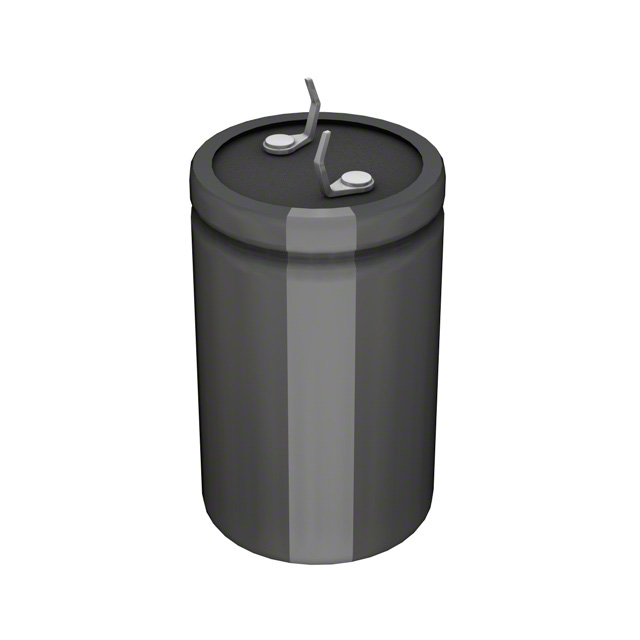

LPW332M1HN35V-WCAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 50 V | 151mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.012 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

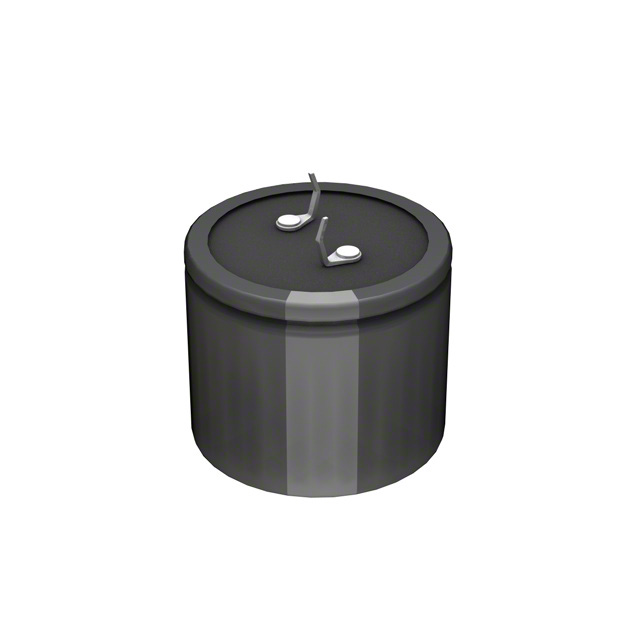

LPW332M1HP25V-WCAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 50 V | 151mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 2.856 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW332M1JN45V-WCAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 151mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 3.372 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

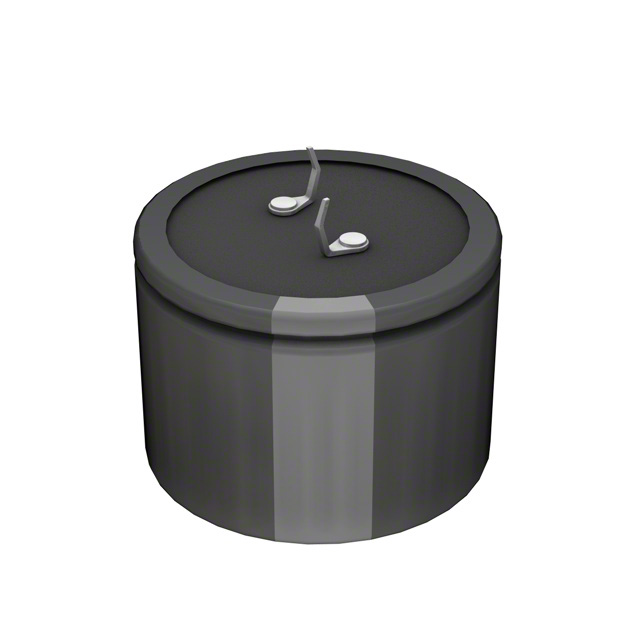

LPW332M1JQ25V-WCAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 151mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.312 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW332M1VN25V-WCAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 35 V | 176mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.244 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole |
