Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2E681JACAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

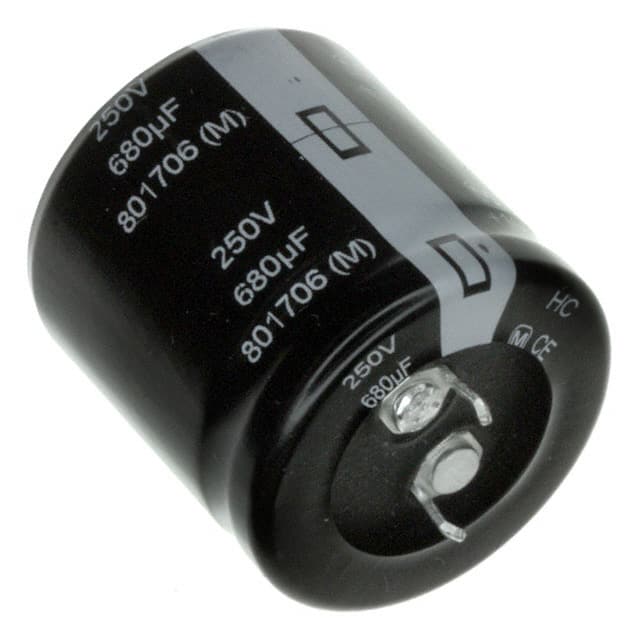

EET-HC2E681KACAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2E681LACAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2E821JACAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

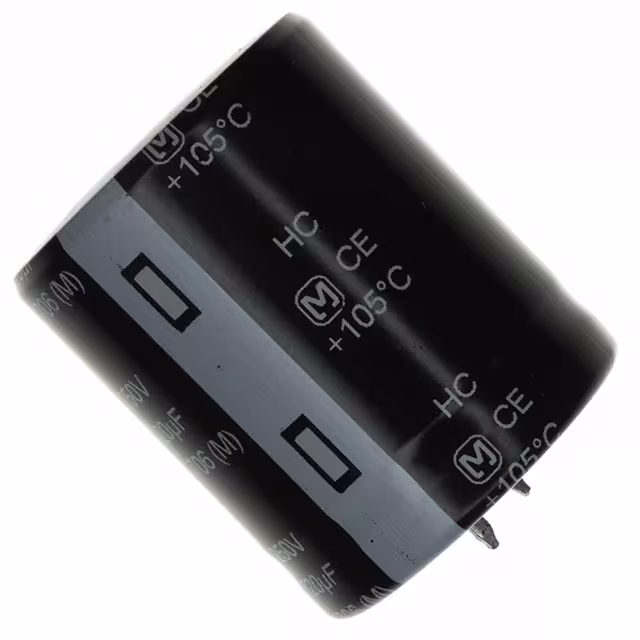

EET-HC2E821KACAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2E821LACAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2E102JFCAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1000 µF | ±20% | 250 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

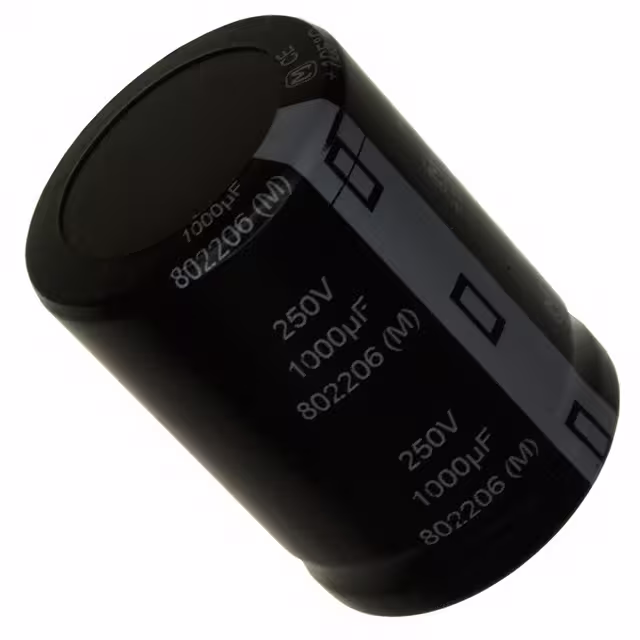

EET-HC2E102KACAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1000 µF | ±20% | 250 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2E102LACAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1000 µF | ±20% | 250 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

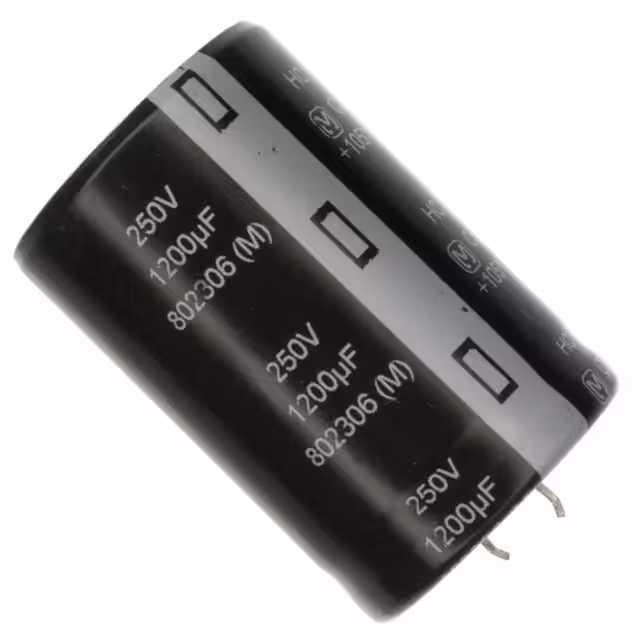

EET-HC2E122KACAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 250 V | 138mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2E122LACAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 250 V | 138mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2E152LACAP ALUM 1500UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1500 µF | ±20% | 250 V | 111mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2E182LFCAP ALUM 1800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1800 µF | ±20% | 250 V | 92mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2E182LACAP ALUM 1800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 1800 µF | ±20% | 250 V | 92mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2V121HACAP ALUM 120UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 120 µF | ±20% | 350 V | 1.382Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2V151HACAP ALUM 150UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 150 µF | ±20% | 350 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2V181HACAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 350 V | 921mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2V181JACAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 350 V | 921mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2V221HACAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 350 V | 754mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2V221JACAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 350 V | 754mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
