Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

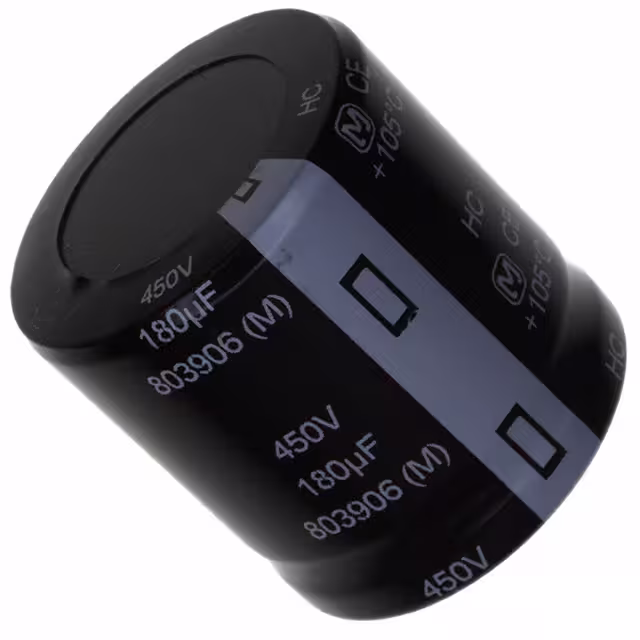

EET-HC2W181KACAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2W221HACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 450 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2W221JACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 450 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2W221KACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 450 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2W221LACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 450 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2W271JACAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

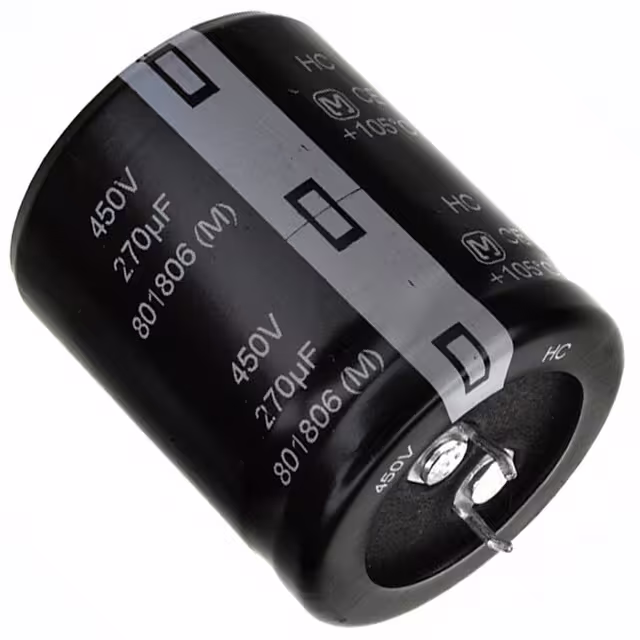

EET-HC2W271KFCAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

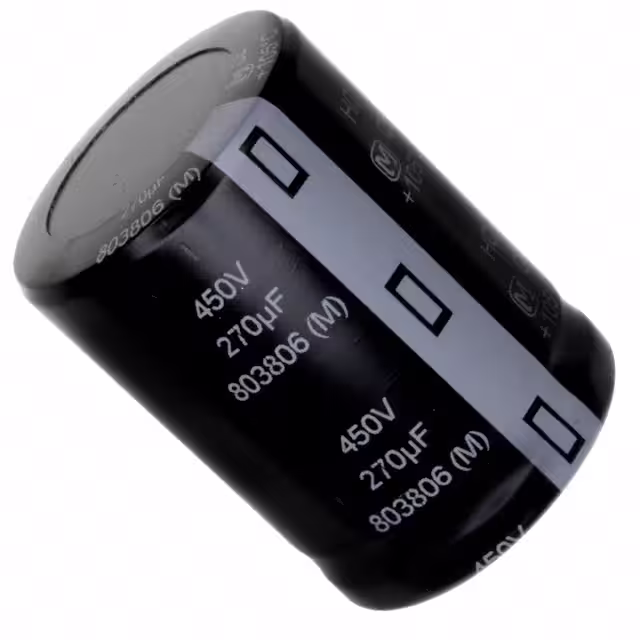

EET-HC2W271KACAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2W271LACAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2W331KFCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

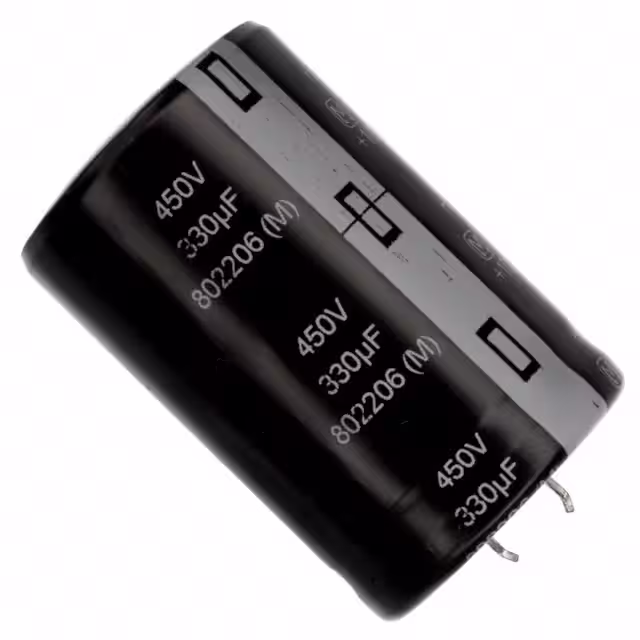

EET-HC2W331KACAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2W331LACAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

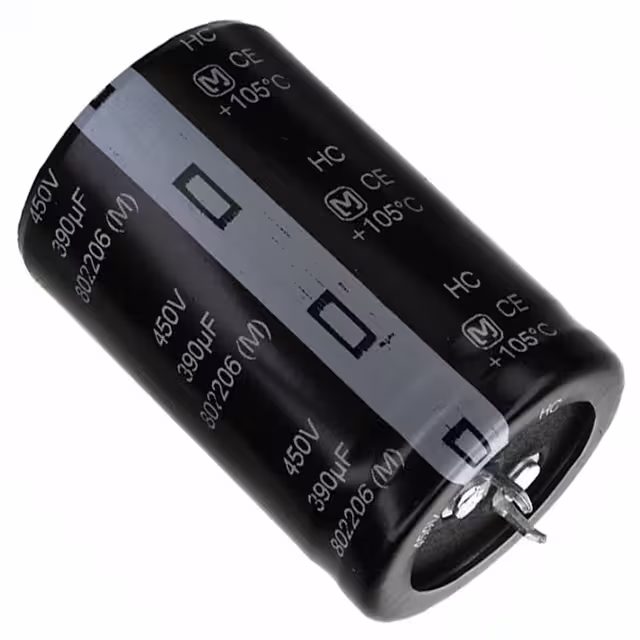

EET-HC2W391KFCAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2W391KACAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2W391LACAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2W471LACAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 470 µF | ±20% | 450 V | 388mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.436 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2W561LACAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 560 µF | ±20% | 450 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2G221HACAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 400 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EEU-FC1J6R8HCAP ALUM 6.8UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
FC | Tape & Box (TB) | Obsolete | 6.8 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 80 mA @ 100 kHz | 3.5 Ohms | 0.098" (2.50mm) | 0.157" Dia (4.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
B43310A5828M000CAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
B43310 | Bulk | Active | 8200 µF | ±20% | 450 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 120 Hz | - | - | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 6.181" (157.00mm) | - | Chassis Mount |
