Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

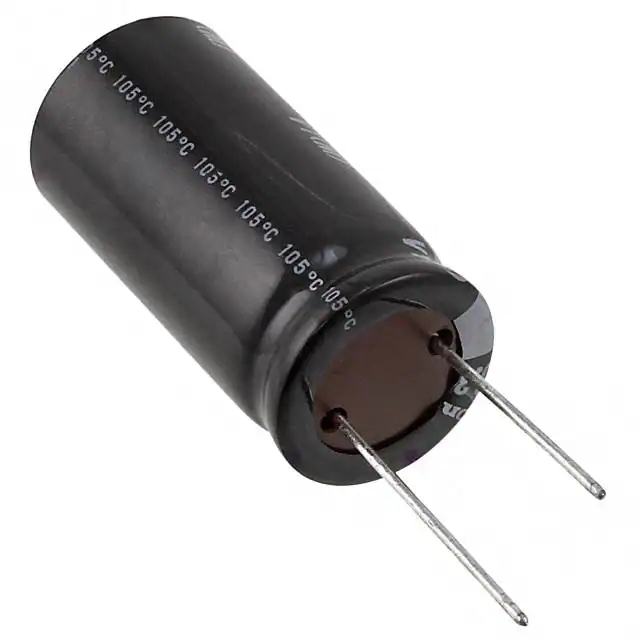

UVY1H472MRDCAP ALUM 4700UF 20% 50V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UVY1HR22MDDCAP ALUM 0.22UF 20% 50V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.9 mA @ 120 Hz | 5.8 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY1HR33MDDCAP ALUM 0.33UF 20% 50V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 4.3 mA @ 120 Hz | 8.6 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY1HR47MDDCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 7 mA @ 120 Hz | 14 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY1J330MEDCAP ALUM 33UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 33 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 200 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY1J332MRDCAP ALUM 3300UF 20% 63V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 3300 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.2425 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UVY1V153MRDCAP ALUM 15000UF 20% 35V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
UVY2A010MDDCAP ALUM 1UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 1 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 15 mA @ 120 Hz | 30 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2A220MEDCAP ALUM 22UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 186 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY2A222MRDCAP ALUM 2200UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 2200 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.0125 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
UVY2A2R2MDDCAP ALUM 2.2UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 2.2 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2A332MRDCAP ALUM 3300UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.3805 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
UVY2A3R3MDDCAP ALUM 3.3UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 3.3 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 58 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2A4R7MDDCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | 64 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2D010MEDCAP ALUM 1UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 1 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 25.6 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2D0R1MEDCAP ALUM 0.1UF 20% 200V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 0.1 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 mA @ 120 Hz | 2.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2D2R2MEDCAP ALUM 2.2UF 20% 200V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 2.2 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 40 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2D3R3MEDCAP ALUM 3.3UF 20% 200V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 3.3 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2DR22MEDCAP ALUM 0.22UF 20% 200V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 0.22 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 mA @ 120 Hz | 5.28 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVY2G010MEDCAP ALUM 1UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 1 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 22.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole |
