Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

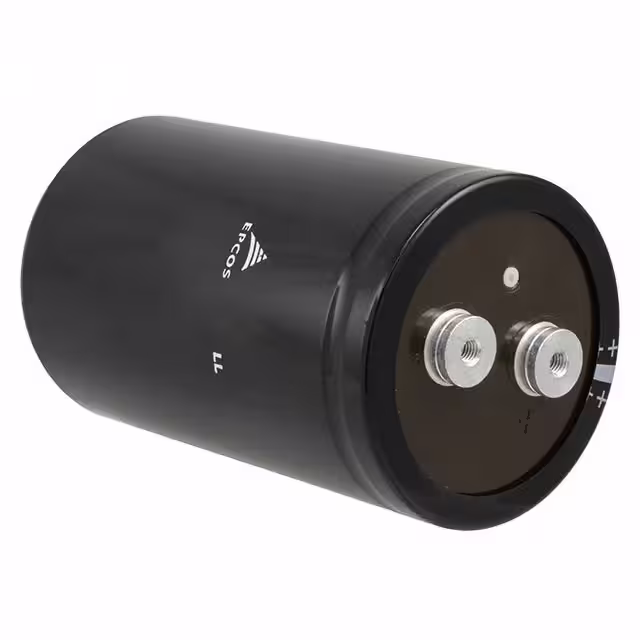

B43584A2159M3CAP ALUM 15000UF 20% 250V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 15000 µF | ±20% | 250 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.2 A @ 100 Hz | - | 8 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
B43584A2279MCAP ALUM 27000UF 20% 250V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 27000 µF | ±20% | 250 V | 4mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 45.1 A @ 100 Hz | - | 5 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A2279M003CAP ALUM 27000UF 20% 250V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 27000 µF | ±20% | 250 V | 4mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 45.1 A @ 100 Hz | - | 5 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A4159M000CAP ALUM 15000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 15000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 11 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A4159M3CAP ALUM 15000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 15000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 11 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A4828M000CAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 8200 µF | ±20% | 350 V | 23mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584A4828M003CAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 8200 µF | ±20% | 350 V | 23mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584A5109M000CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 10000 µF | ±20% | 450 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 26.5 A @ 100 Hz | - | 13 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A5109M3CAP ALUM 10000UF 20% 450V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 10000 µF | ±20% | 450 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 26.5 A @ 100 Hz | - | 13 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A9129MCAP ALUM 12000UF 20% 400V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 12000 µF | ±20% | 400 V | 10mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.6 A @ 100 Hz | - | 12 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A9129M3CAP ALUM 12000UF 20% 400V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 12000 µF | ±20% | 400 V | 10mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.6 A @ 100 Hz | - | 12 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 8.740" (222.00mm) | - | Chassis, Stud Mount | |
|
|
B43584A9828MCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 8200 µF | ±20% | 400 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | - | 18 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584A9828M3CAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 8200 µF | ±20% | 400 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | - | 18 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584B4109M000CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.5 A @ 100 Hz | - | 16 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584B4109M3CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.5 A @ 100 Hz | - | 16 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584B6478M000CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 4700 µF | ±20% | 500 V | 23mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 28 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584B6478M003CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 4700 µF | ±20% | 500 V | 23mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 28 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
B43584B9478M003CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 4700 µF | ±20% | 400 V | 23mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | - | 28 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 3.858" (98.00mm) | - | Chassis, Stud Mount | |
|
|
B43584D5338M000CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 3300 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | - | 38 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 3.858" (98.00mm) | - | Chassis, Stud Mount | |
|
|
B43584D5338M003CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 3300 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | - | 38 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 3.858" (98.00mm) | - | Chassis, Stud Mount |
